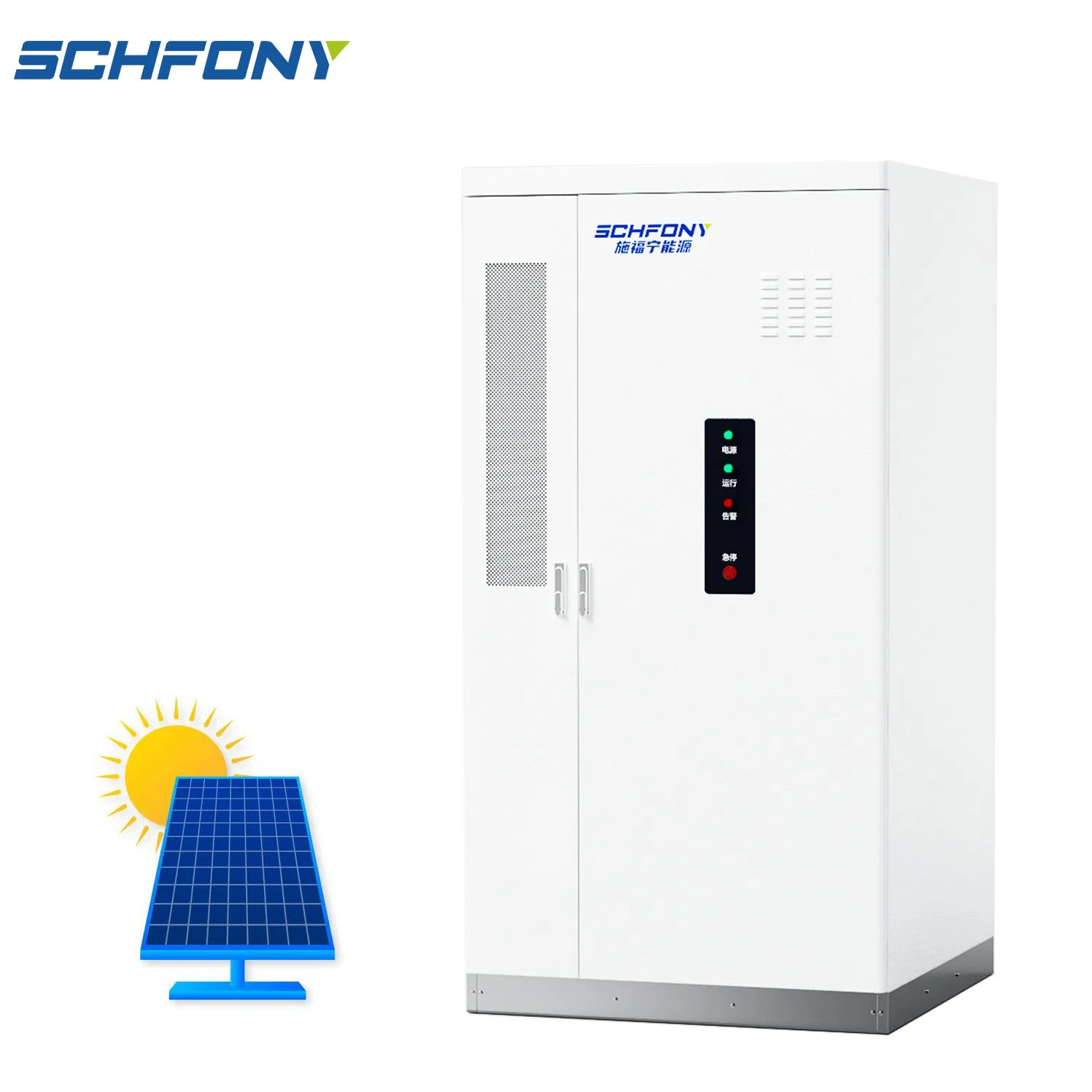

344kwh Battery Energy Storage System Bess Solar Energy System Save Cost
344kwh Battery Energy Storage System Bess Solar Energy System Save Cost
344kwh Battery Energy Storage System Bess Solar Energy System Save Cost
344kwh Battery Energy Storage System Bess Solar Energy System Save Cost
344kwh Battery Energy Storage System Bess Solar Energy System Save Cost
1 / 5
344kwh Battery Energy Storage System Bess Solar Energy System Save Cost
344kwh Battery Energy Storage System Bess Solar Energy System Save Cost
344kwh Battery Energy Storage System Bess Solar Energy System Save Cost
344kwh Battery Energy Storage System Bess Solar Energy System Save Cost
344kwh Battery Energy Storage System Bess Solar Energy System Save Cost

344kwh Battery Energy Storage System Bess Solar Energy System Save Cost

Customization: Available
Rated capacity: 344KWh
Cooling method: liquid cooling
Send Inquiry

Product Description

Product Overview

High Voltage Liquid Cooled Outdoor Energy Storage Container Inverter System

Model: SET-ESS-MAT344Y
Rated Voltage: 1228.8Vdc
Rated Capacity: 344kWh
Weight: 3500kg
Size: 1300*1325*2200mm
Origin: China

Technical Specifications

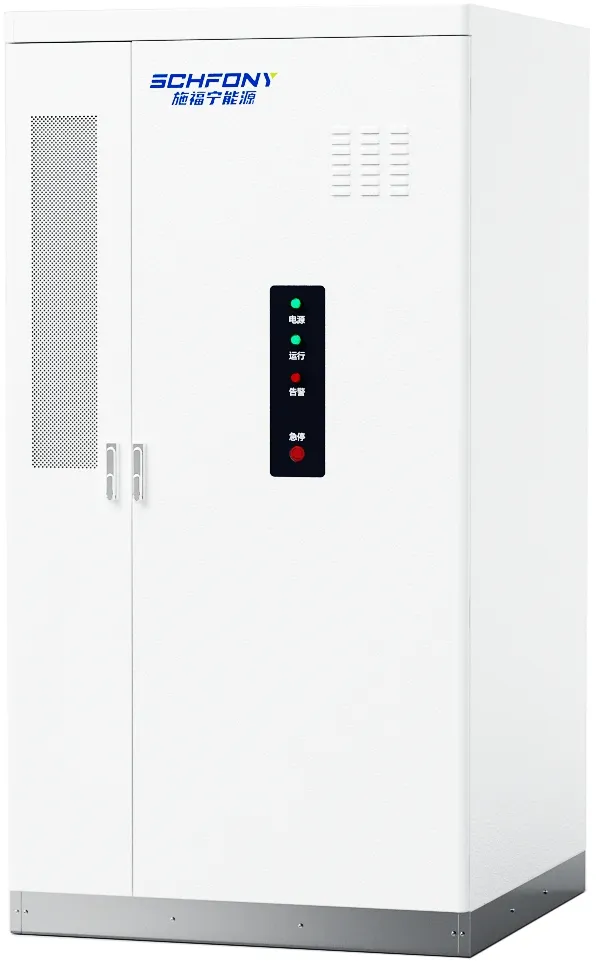

Battery Energy Storage System
1
Liquid Cooling System

Advanced liquid cooling ensures optimal temperature control and extends system longevity even in harsh outdoor environments.

2
Enhanced Fire Safety

Features perfluorohexanone + water full immersion fire fighting design for maximum protection.

DC Side Parameters
Battery TypeLithium Iron Carbonate (LFP)
Core ParametersLFP-3.2V/280Ah
Rated Capacity344 KWH
Grouping Method1P48S*8
Charge/Discharge Ratio0.5C
Rated Voltage1228.8Vdc
Rated Current140Adc
Cooling MethodLiquid Cooling
Protection LevelIP54
CommunicationCAN / RS485

Technical Highlights

★

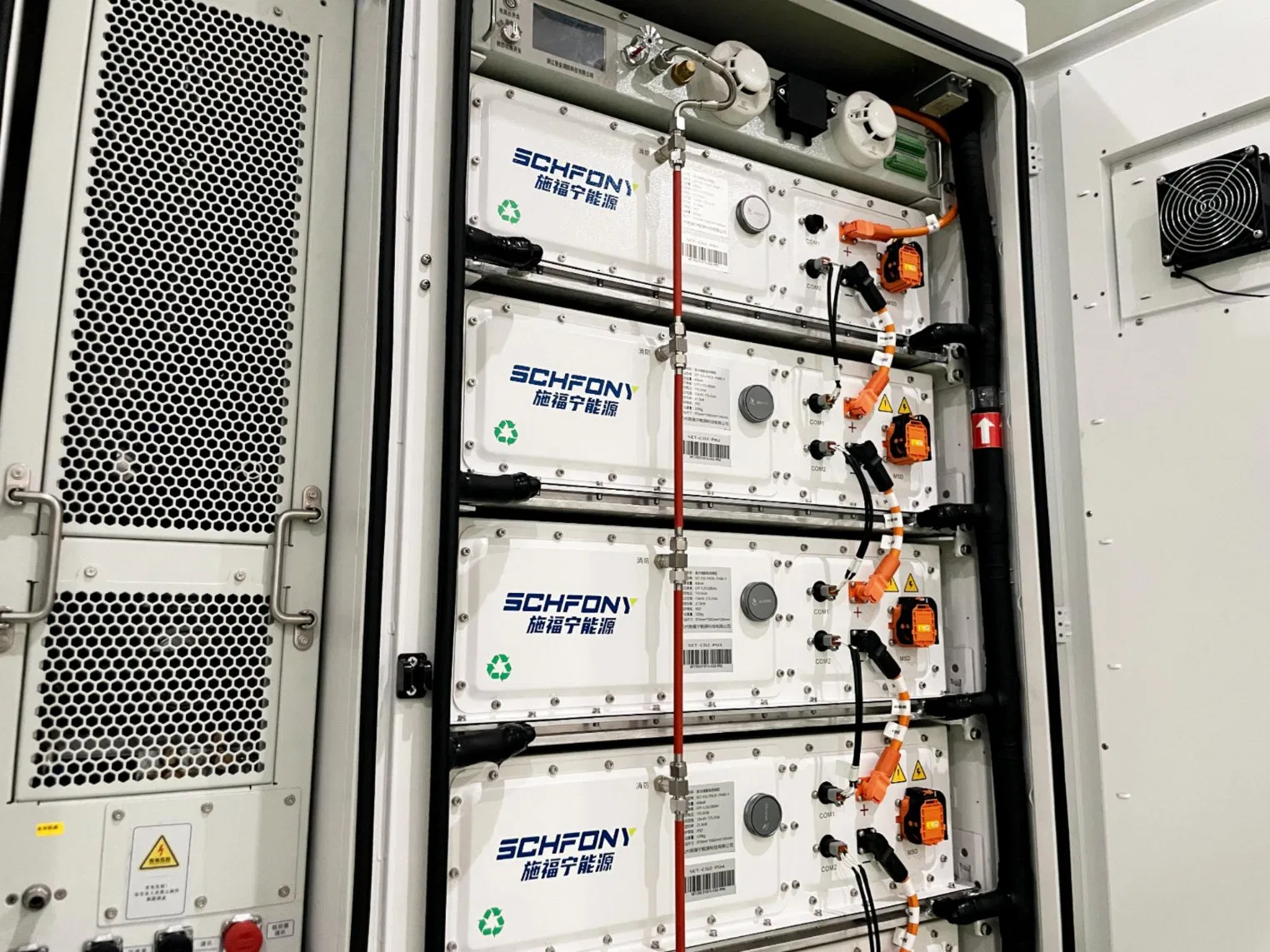

8 PACK Battery Modules

Internal cabinet core contains 8 PACK level battery modules for high density storage.

★
Intelligent BMS

Battery Management System acquires cell, module, and cabinet data for seamless communication.

★
Modular Design

Highly integrated modular design facilitates economic operation and flexible deployment.

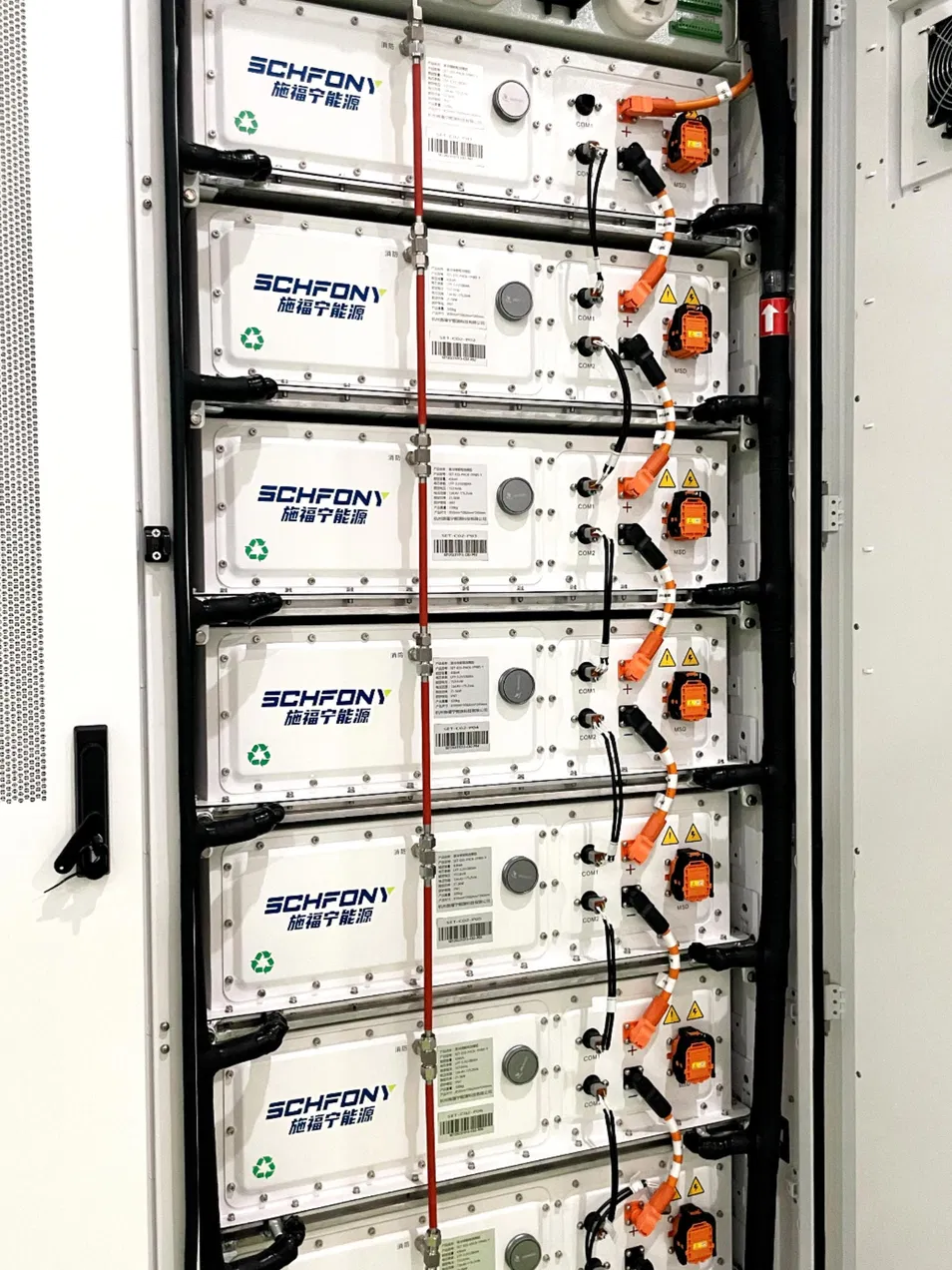

ESS Details

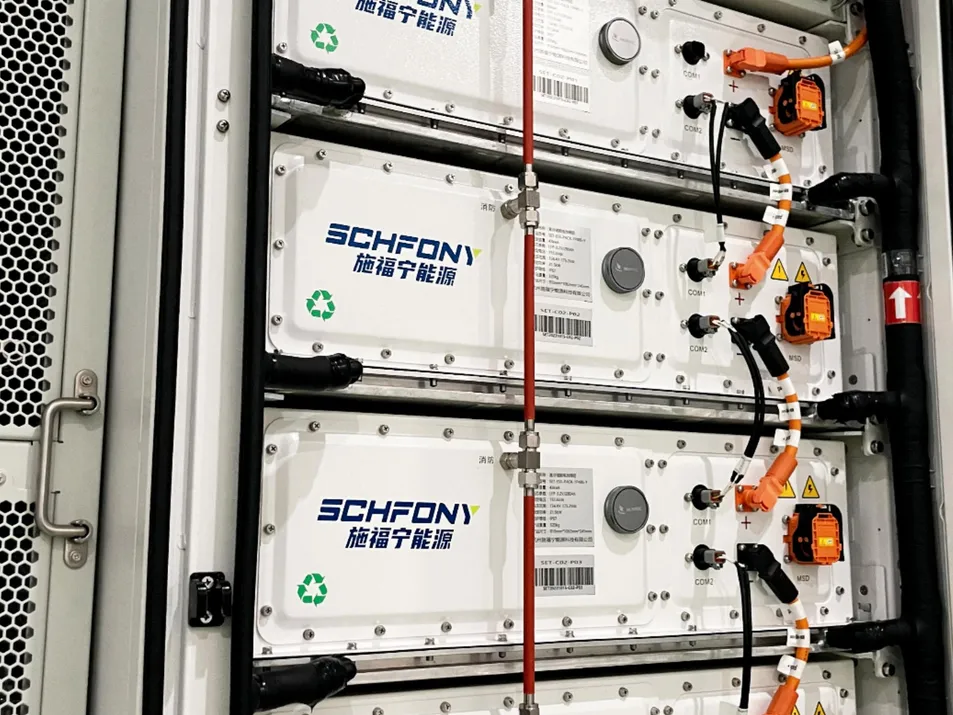

Technical Layout

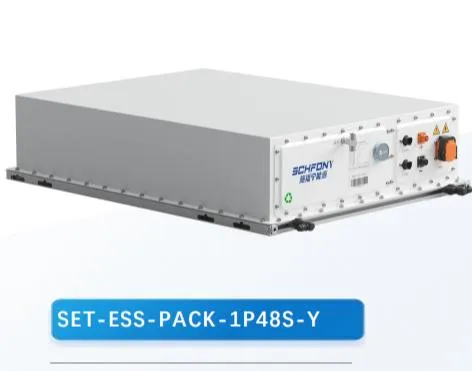

System View

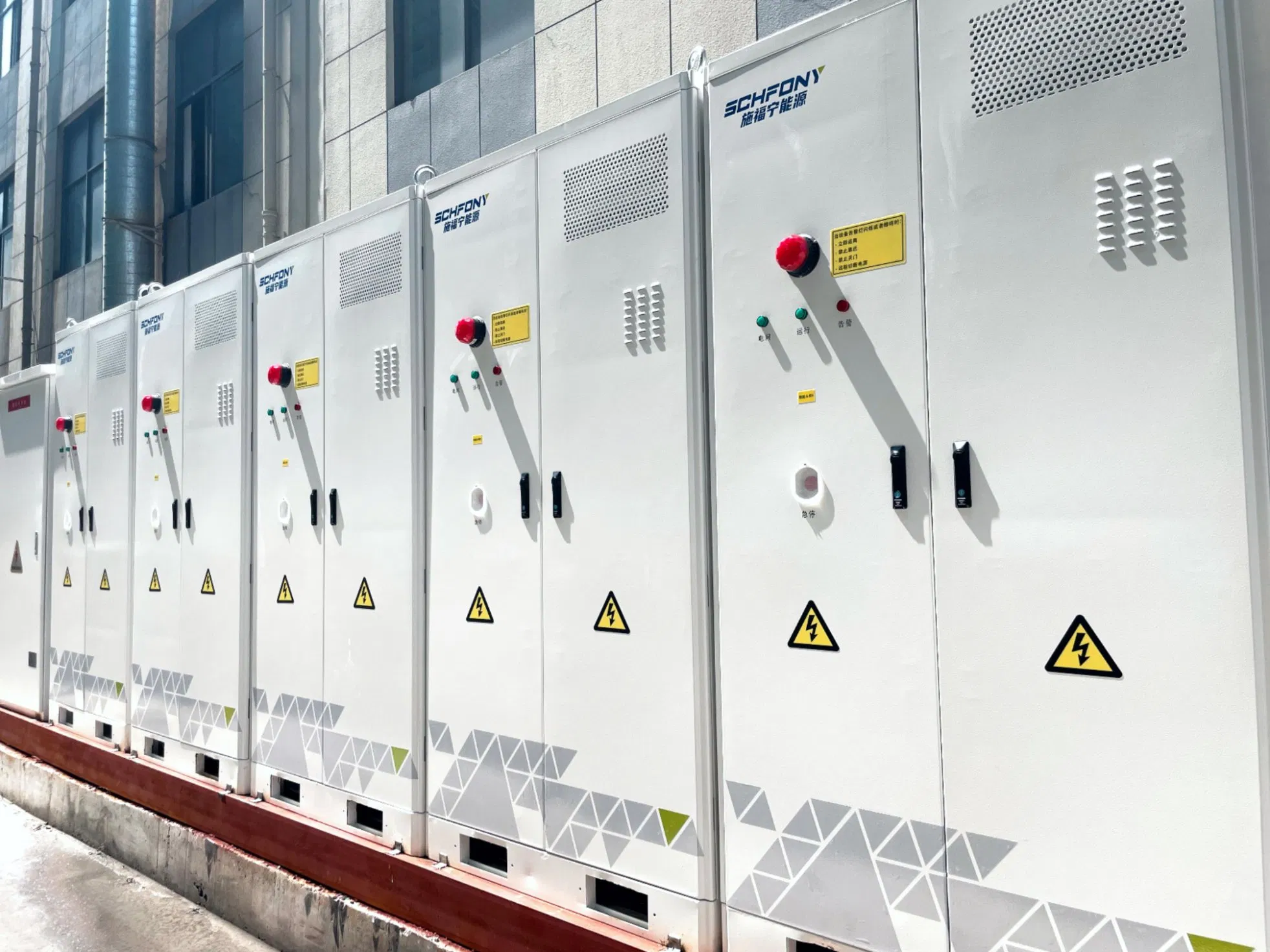

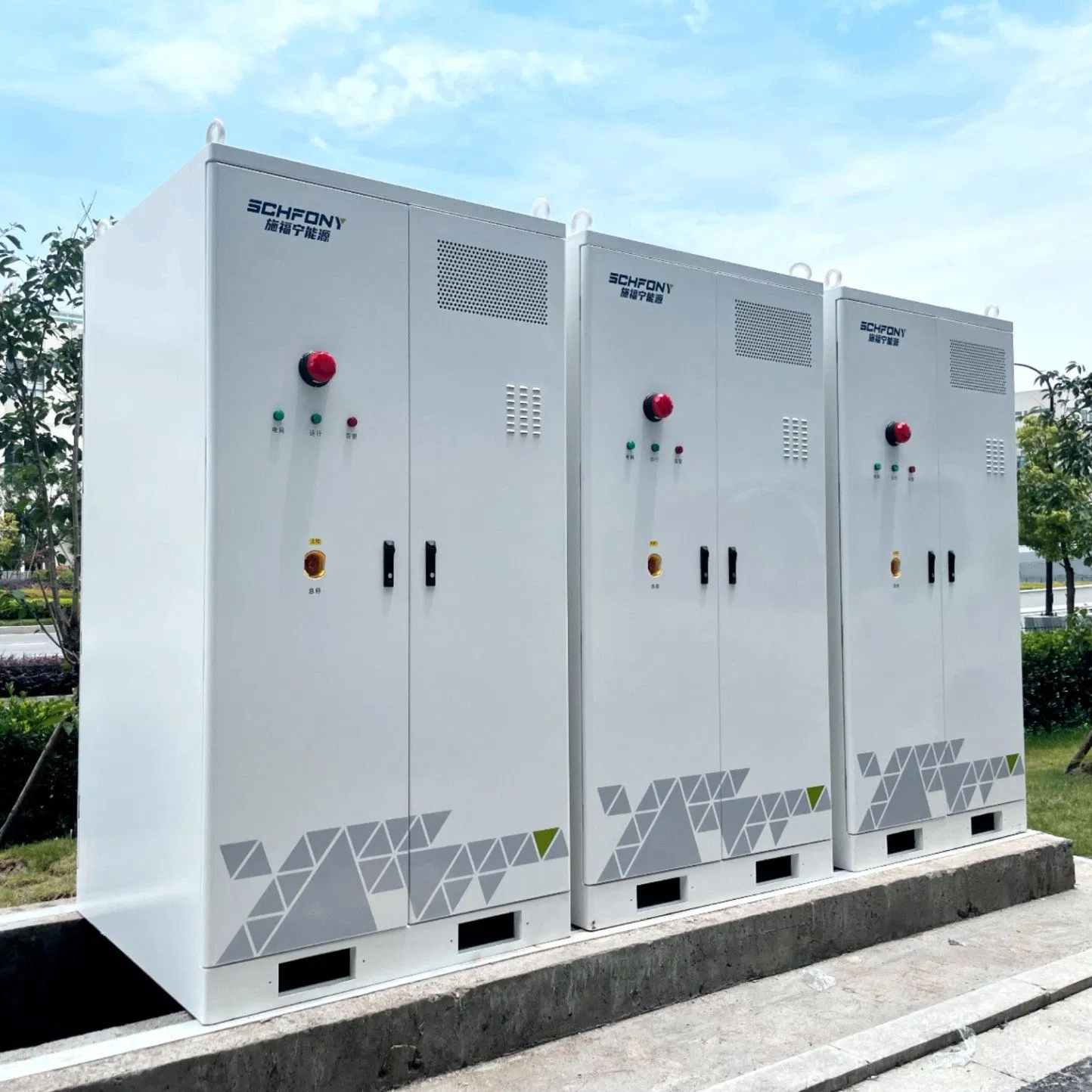

Project Photos

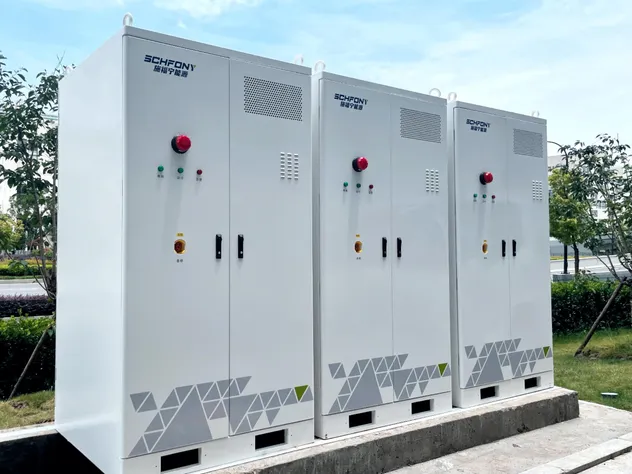

Project Case 1
Project Case 2
Project Case 3

Factory & Manufacturing

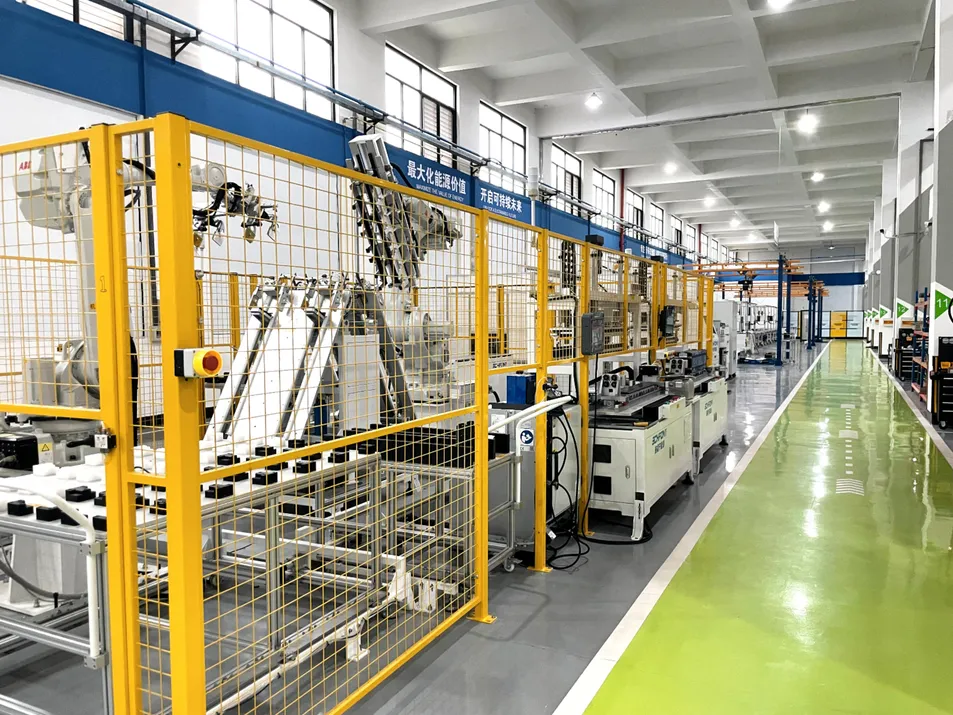

Production Line

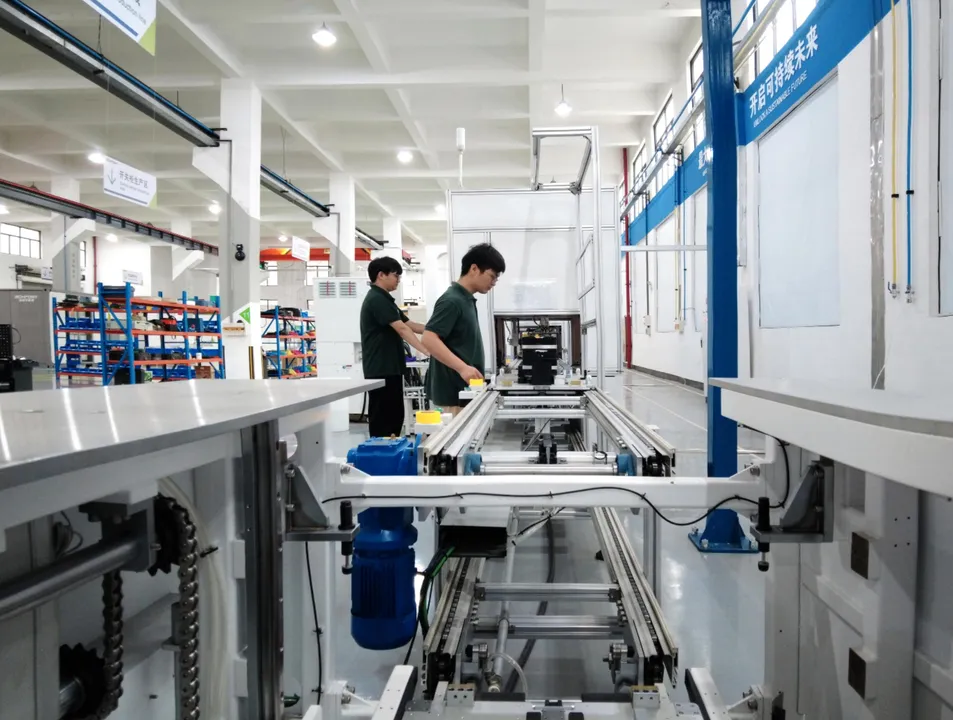

Quality Control

Why Choose Us?

  • OEM/ODM capabilities
  • Competitive pricing & bulk discounts
  • Fast shipping & customs clearance support
  • Turnkey project solutions

Other Monitoring Solutions

  • Smart power monitoring
  • Power / Energy meters
  • Prepaid metering systems

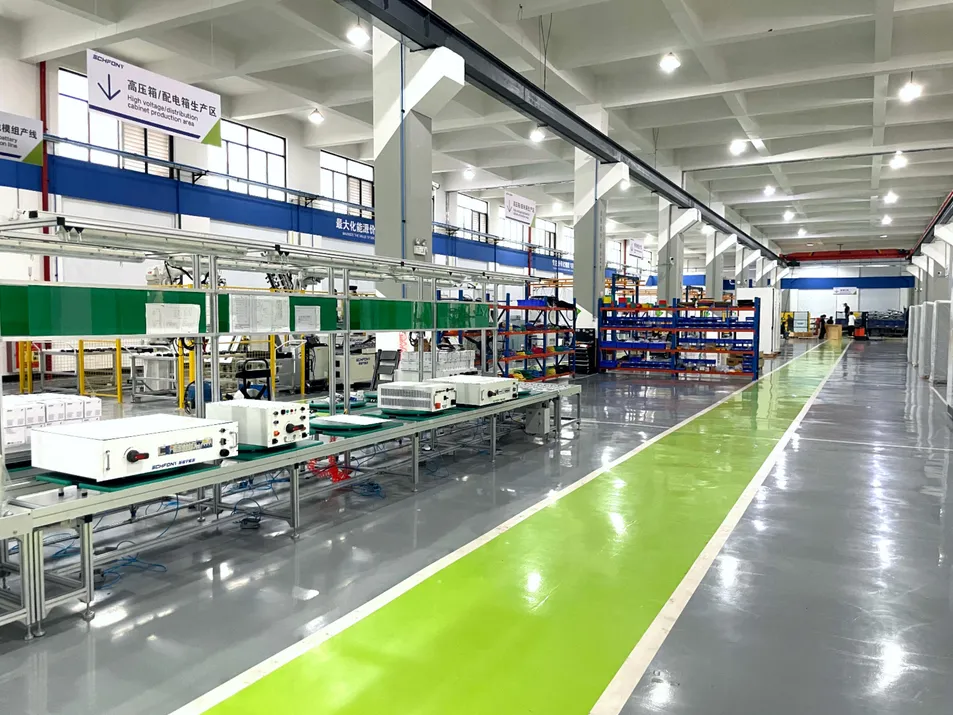

Facility 1

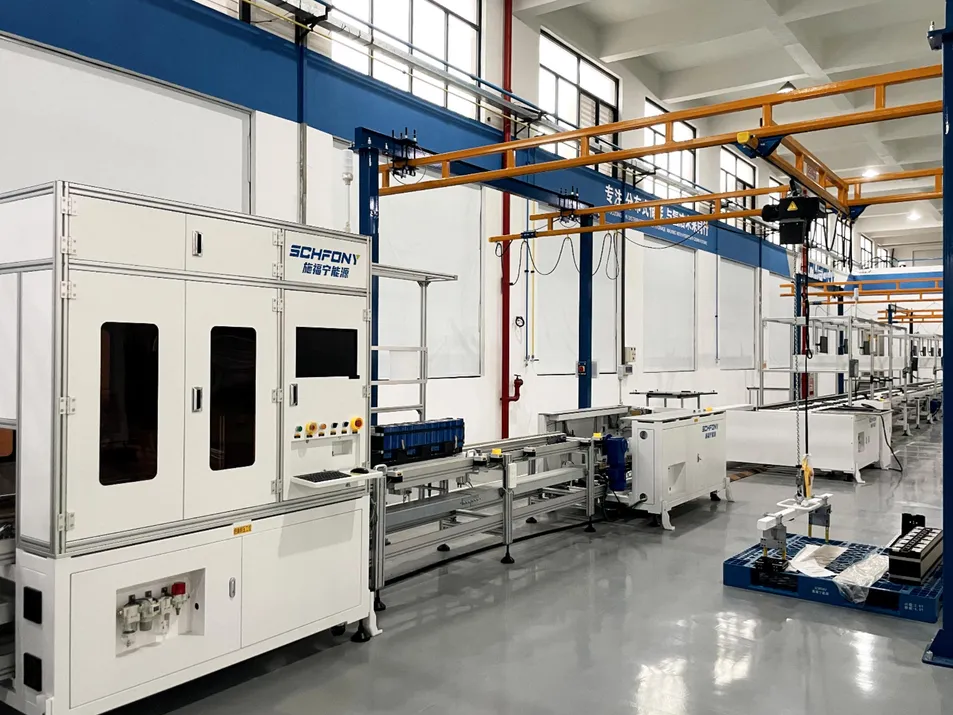

Facility 2

Frequently Asked Questions

Q: What is the typical lead time for orders?
A: Standard models usually ship within 15–30 days. For customized configurations, the lead time is approximately 30–45 days.
Q: Can the energy storage system be customized for specific voltage requirements?
A: Yes, we provide tailored configurations for DC side parameters and total capacity to meet your specific project needs.
Q: What safety protections are integrated into the system?
A: The system utilizes a three-level circuit breaker protection barrier and an advanced perfluorohexanone + water immersion fire suppression system.
Q: What documentation is provided for international shipping?
A: We provide a full export package including the Commercial Invoice, Packing List, Bill of Lading, and Certificate of Conformity (COC).
Q: How does the liquid cooling system benefit the battery life?
A: Liquid cooling provides superior thermal uniformity compared to air cooling, maintaining stable temperatures which significantly slows down cell degradation.
Q: Is the system suitable for outdoor installation in harsh climates?
A: Yes, the unit is rated IP54, making it dust-proof and water-resistant, specifically designed for outdoor energy storage applications.
