Deye Lithium Solar Energy System Battery Cabinet 30kW 50kW 60 kW 100 kW Commercial Battery Storage Solar Bess Systems
Deye Lithium Solar Energy System Battery Cabinet 30kW 50kW 60 kW 100 kW Commercial Battery Storage Solar Bess Systems
Deye Lithium Solar Energy System Battery Cabinet 30kW 50kW 60 kW 100 kW Commercial Battery Storage Solar Bess Systems
Deye Lithium Solar Energy System Battery Cabinet 30kW 50kW 60 kW 100 kW Commercial Battery Storage Solar Bess Systems
Deye Lithium Solar Energy System Battery Cabinet 30kW 50kW 60 kW 100 kW Commercial Battery Storage Solar Bess Systems
1 / 5
Deye Lithium Solar Energy System Battery Cabinet 30kW 50kW 60 kW 100 kW Commercial Battery Storage Solar Bess Systems
Deye Lithium Solar Energy System Battery Cabinet 30kW 50kW 60 kW 100 kW Commercial Battery Storage Solar Bess Systems
Deye Lithium Solar Energy System Battery Cabinet 30kW 50kW 60 kW 100 kW Commercial Battery Storage Solar Bess Systems
Deye Lithium Solar Energy System Battery Cabinet 30kW 50kW 60 kW 100 kW Commercial Battery Storage Solar Bess Systems
Deye Lithium Solar Energy System Battery Cabinet 30kW 50kW 60 kW 100 kW Commercial Battery Storage Solar Bess Systems

Deye Lithium Solar Energy System Battery Cabinet 30kW 50kW 60 kW 100 kW Commercial Battery Storage Solar Bess Systems

Customization: Available
Warranty: 10 year
Condition: New
Send Inquiry

Product Description

Basic Specifications

Model
All in one Hybrid System
Certification
CE, IEC62619, UN38.3
Battery Type
Lithium Ion (LiFePO4)
Application
Industrial, Commercial
Grid Connection
Off grid, Hybrid, On grid
Protection
IP55
Weight
1070kg / 1.2T
Dimensions
1780 * 1056 * 2235 mm

Product Description & Overview

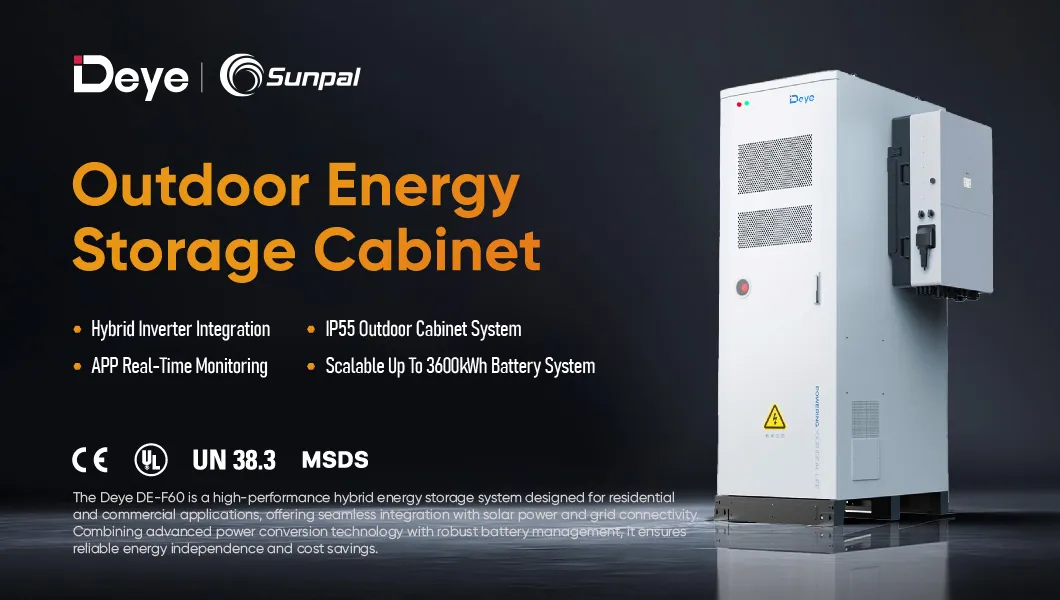

Hybrid System Overview

System Connection & Internal Structure

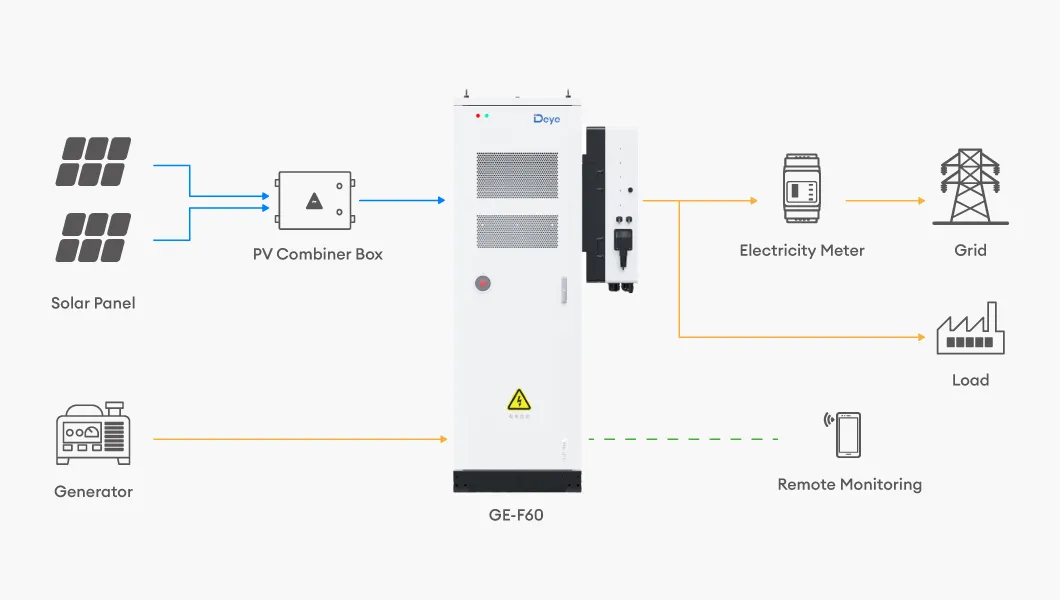

System connection diagram

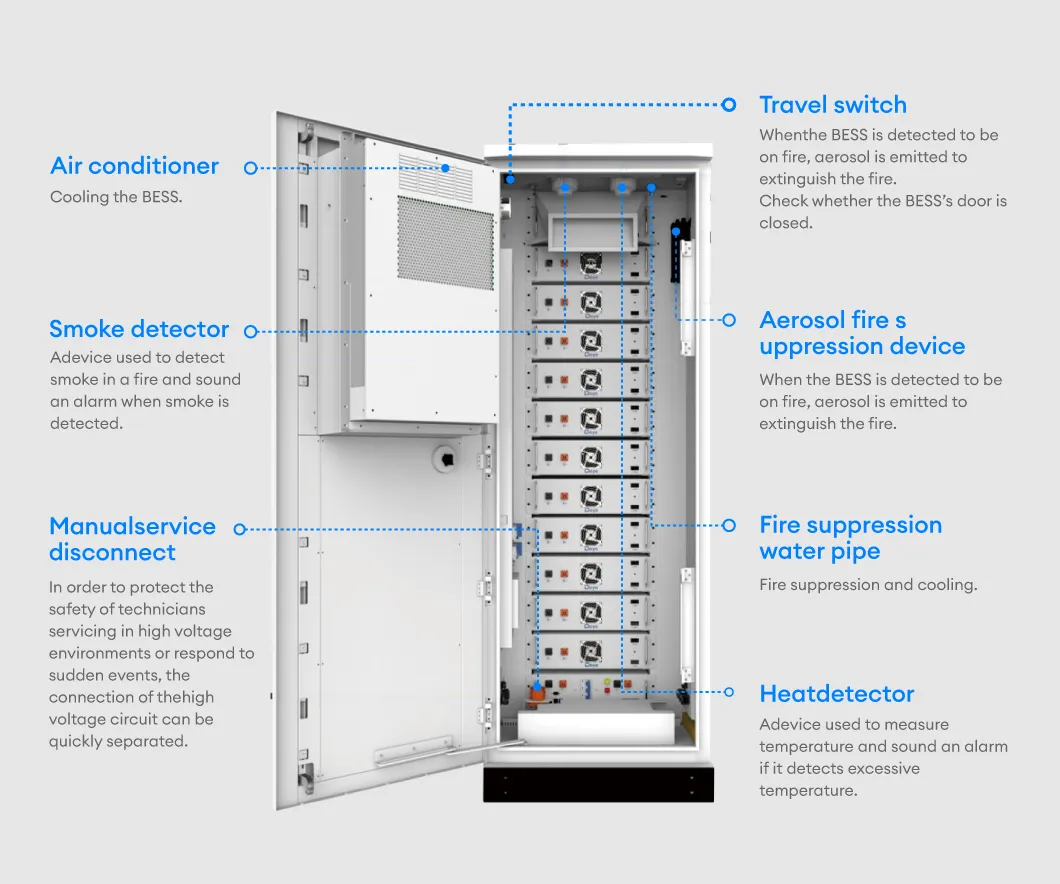

Internal Structure

Key Features & Technical Details

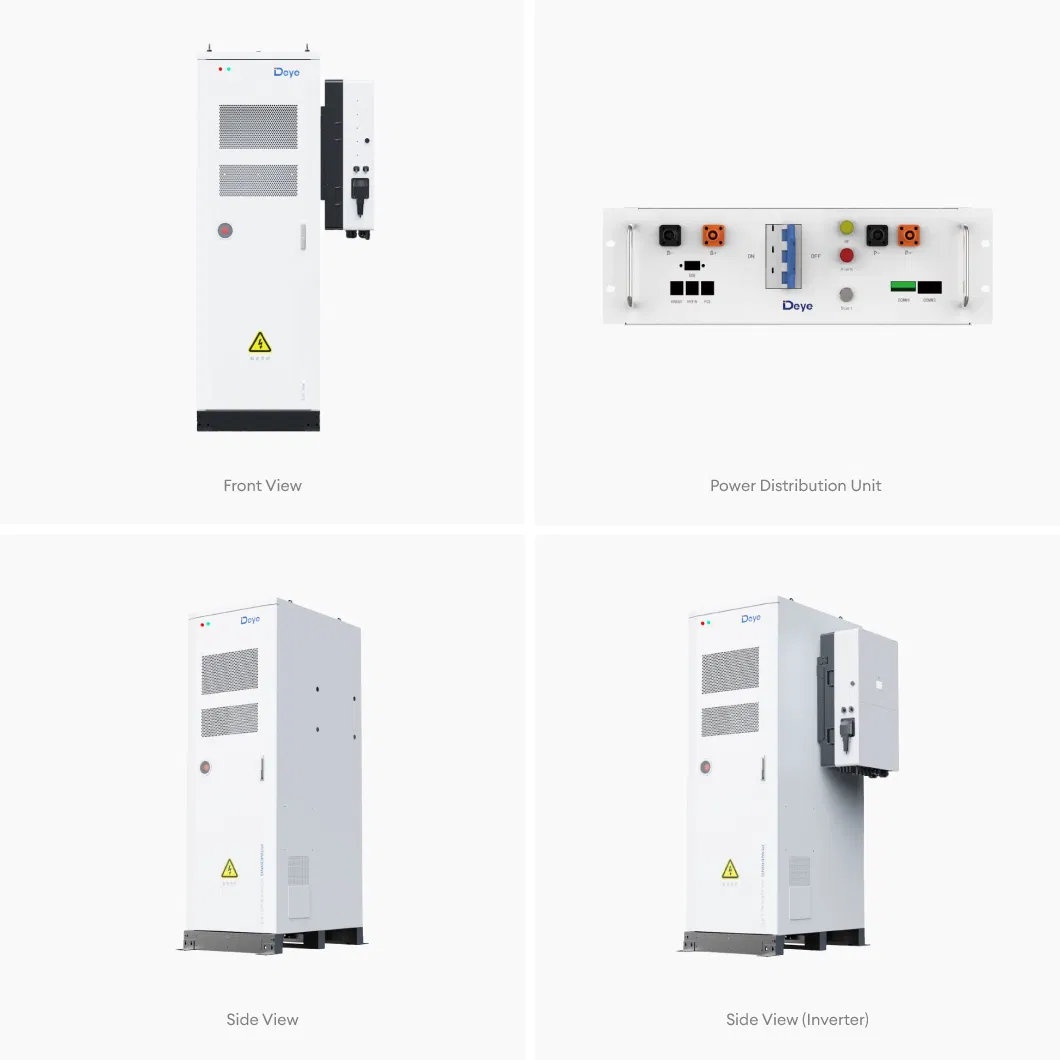

Angle details

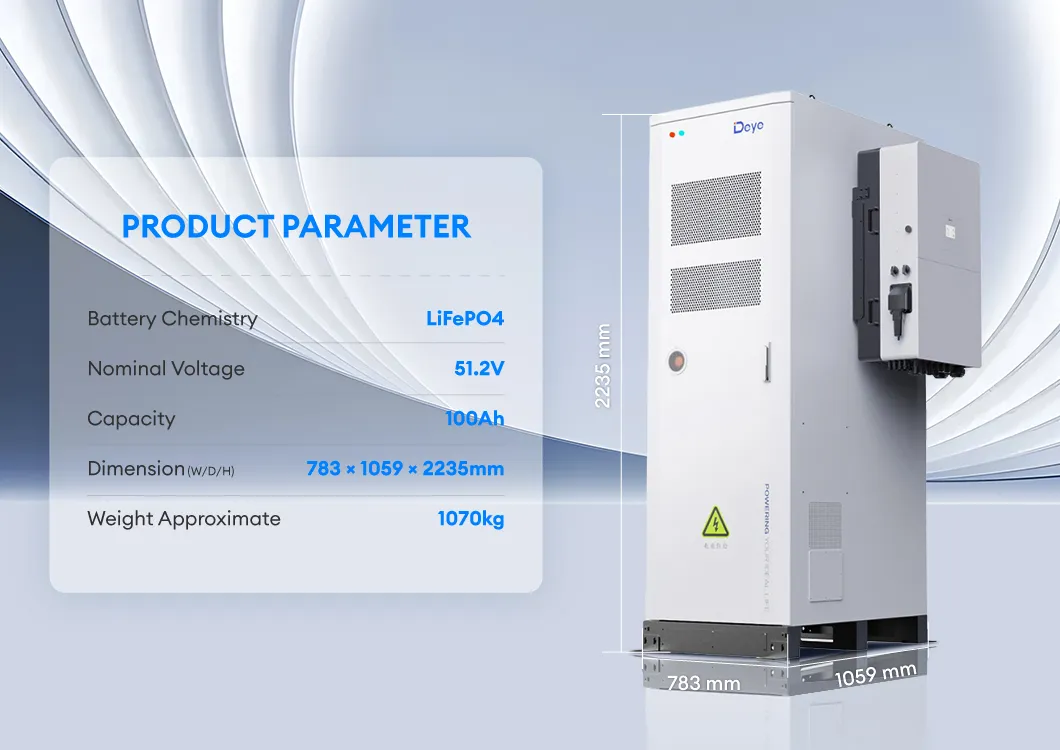

Product Feature 1

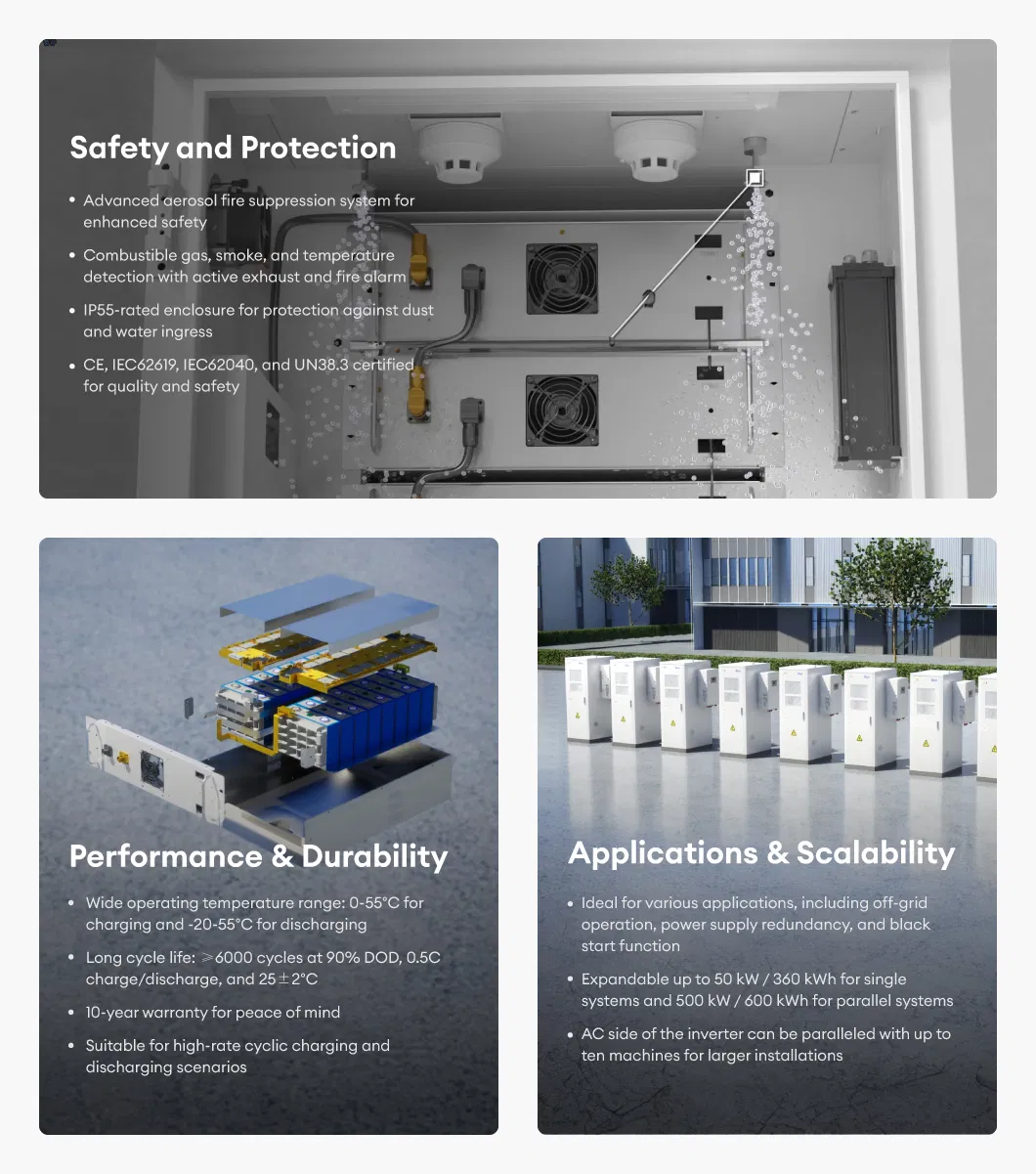

Product Feature 2

Technical Datasheet (GE-F60)

ModelGE-F60
Cell ChemistryLiFePO4
System Energy (kWh)61.44
Usable Energy (kWh)55.29
Nominal Voltage (V)614.4
Operating Voltage (V)480 ~ 700
Charge/Discharge CurrentRecommend: 50A / Nominal: 100A
Cycle Life≥6000 cycles (25±2°C, 0.5C)
IP RatingIP55
Warranty10 Years

Packaging & Real-World Applications

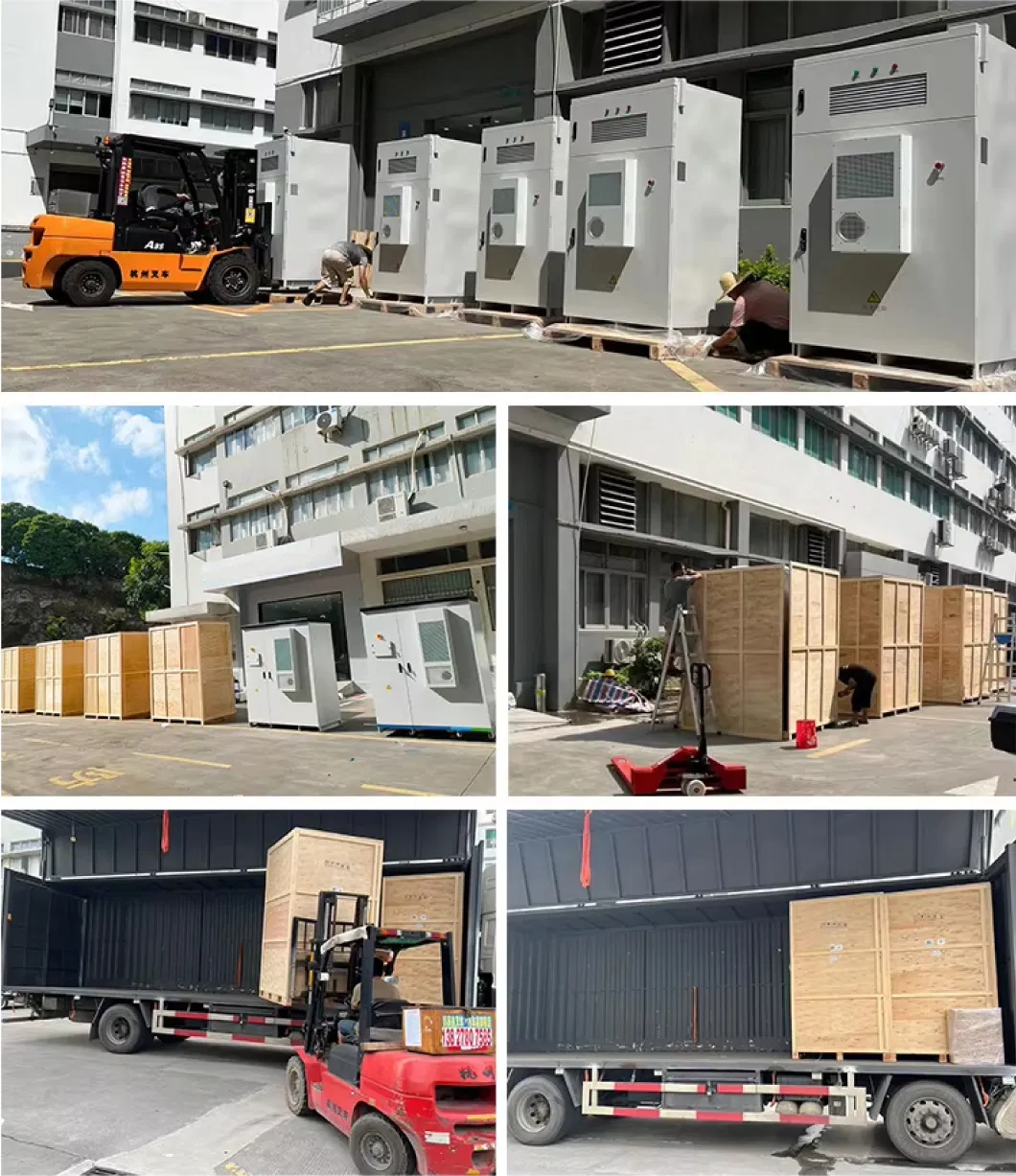

Packaging

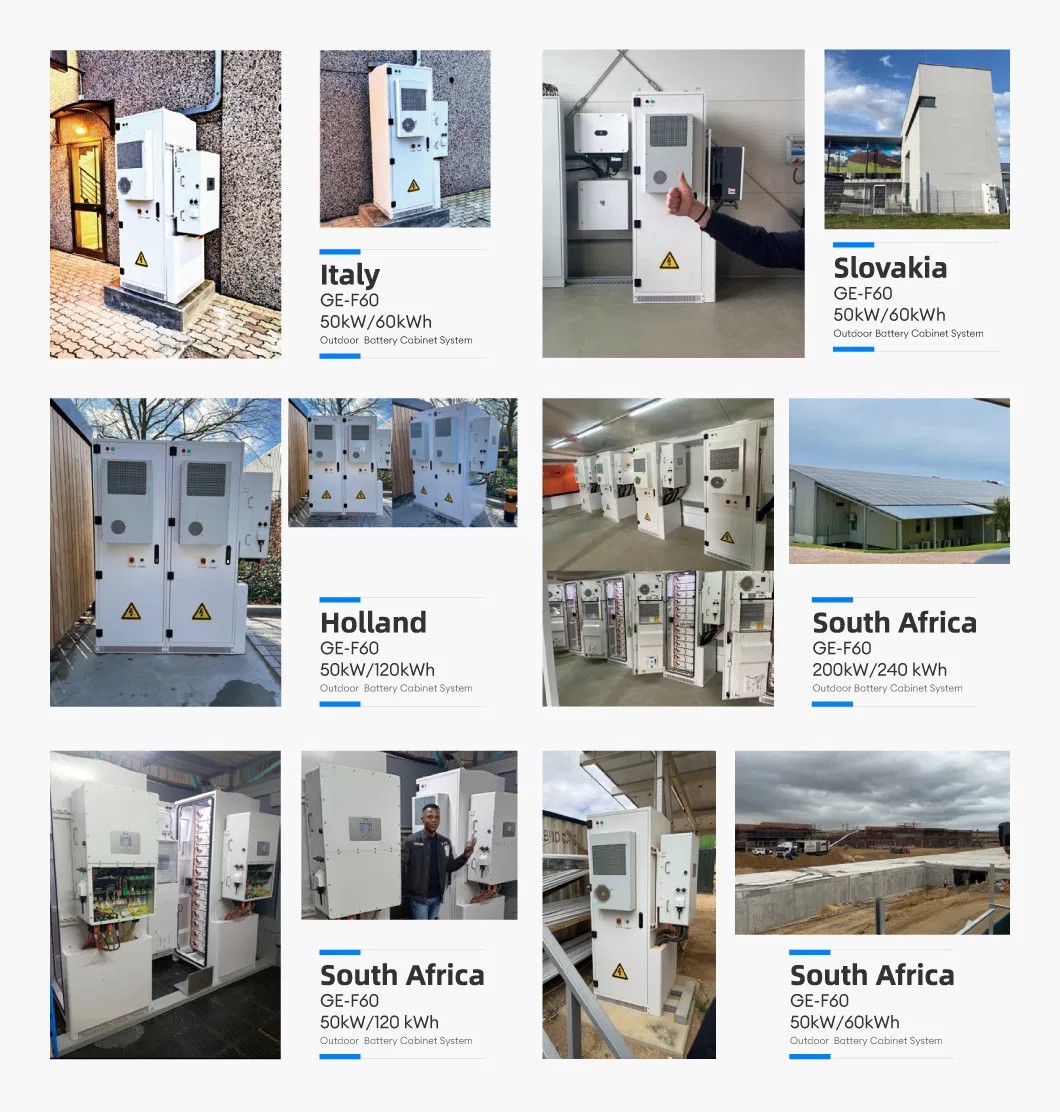

Project Cases

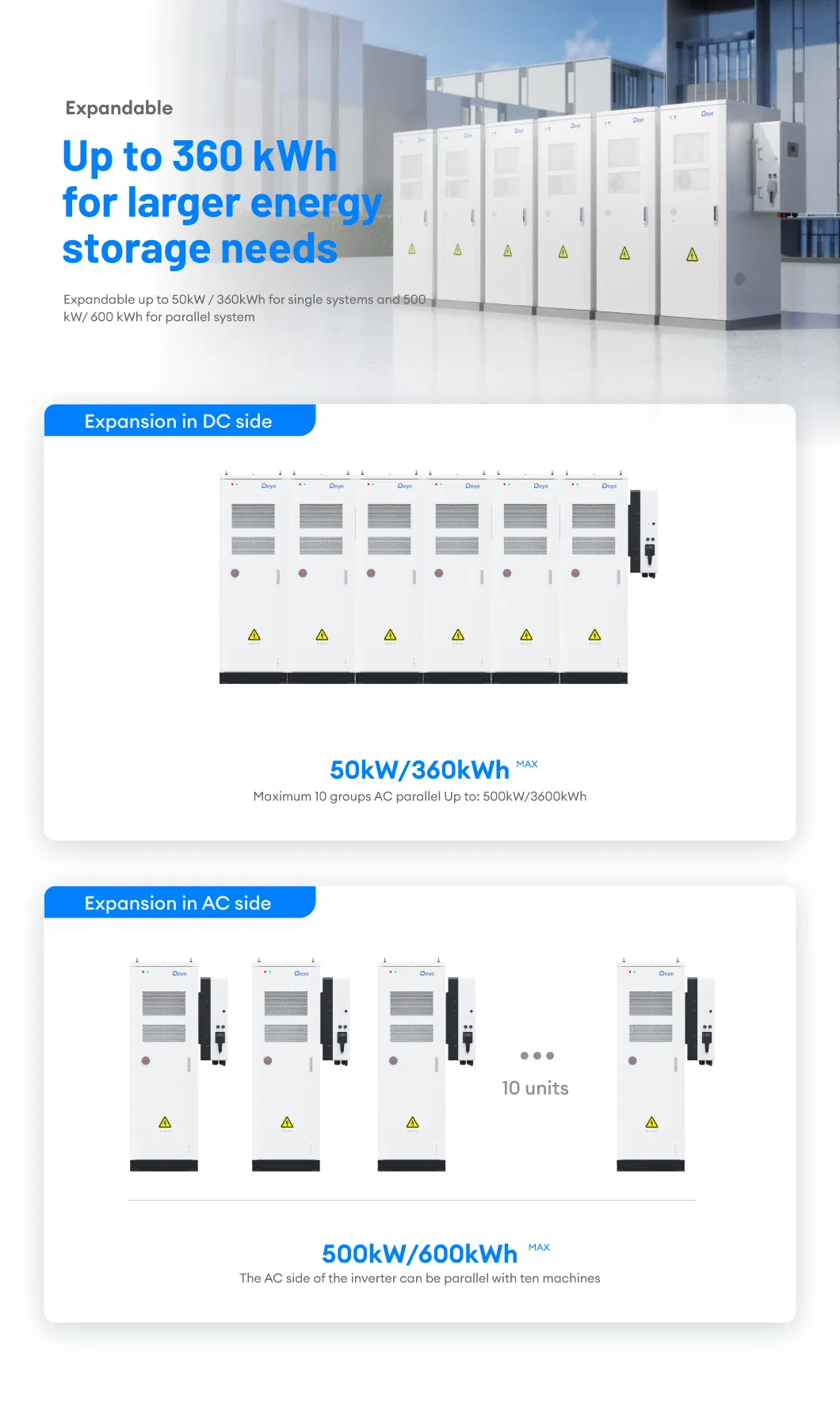

Applications
Application Details

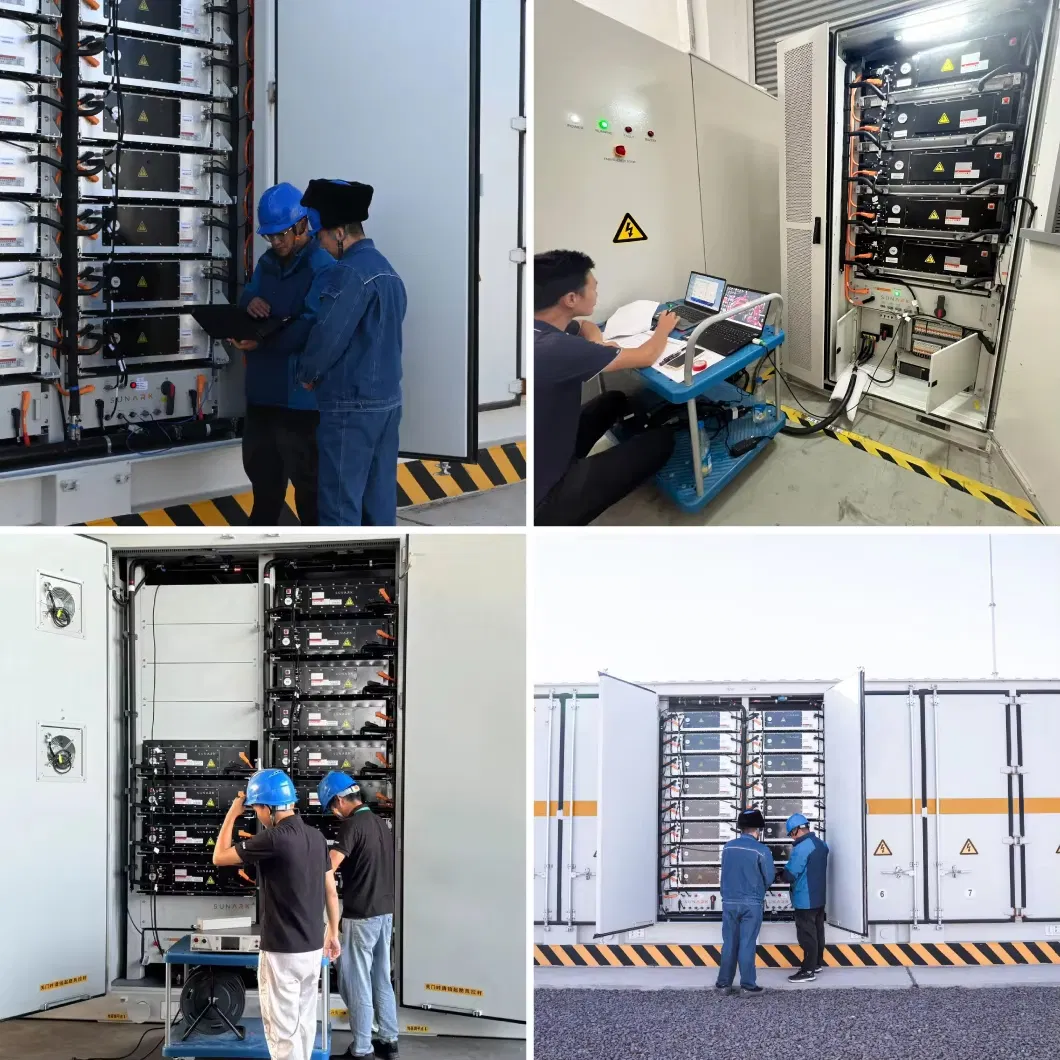

Solar Service

Frequently Asked Questions

What is the battery chemistry used in the system?
The system utilizes high-safety Lithium Iron Phosphate (LiFePO4) technology, known for its long cycle life and thermal stability.
Can the system be installed outdoors?
Yes, the system features an IP55 protection rating, making it suitable for outdoor cabinet installations in various environments.
What is the expected lifespan of the battery modules?
The system is designed for a cycle life of 6,000 cycles or more (at 25°C, 0.5C discharge) and comes with a 10-year warranty.
Does the system support different grid configurations?
Absolutely. This all-in-one hybrid system supports off-grid, hybrid grid, and on-grid connections to meet diverse energy needs.
How is the system monitored?
The system includes multiple communication ports, including CAN2.0, RS485, and WIFI, allowing for robust remote monitoring and management.
What is the recommended Depth of Discharge (DoD)?
To maximize longevity and performance, the recommended depth of discharge for this lithium system is 90%.
