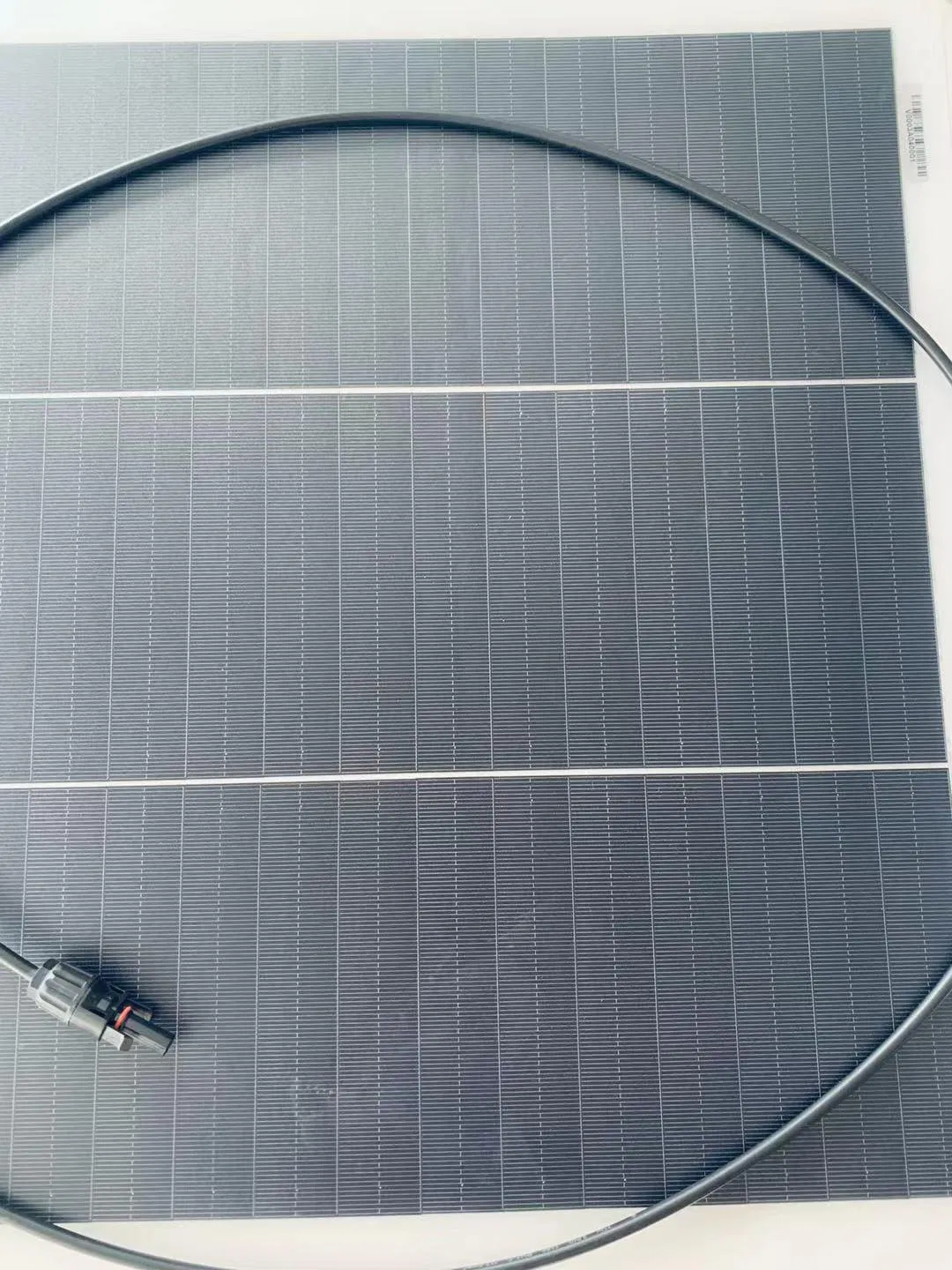

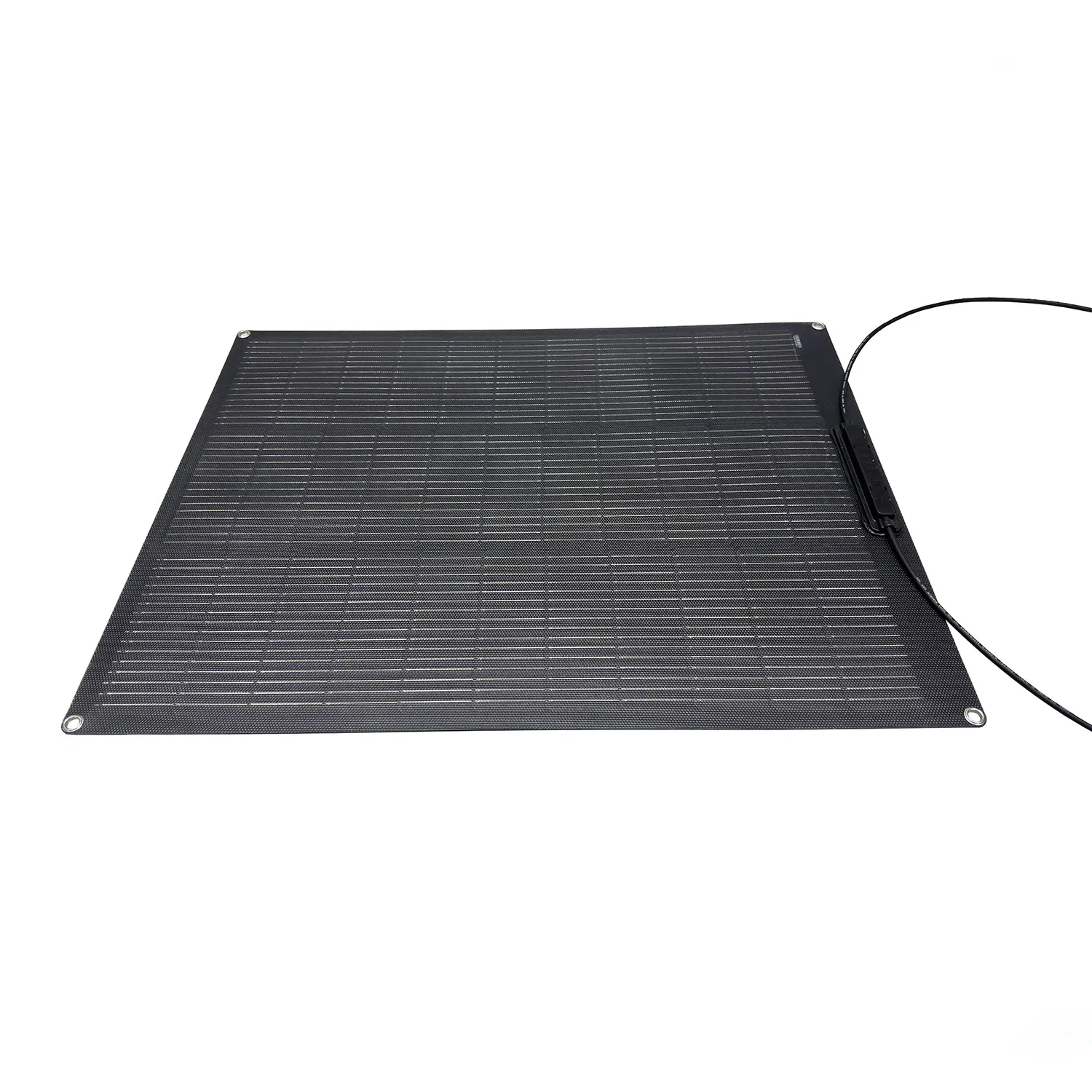

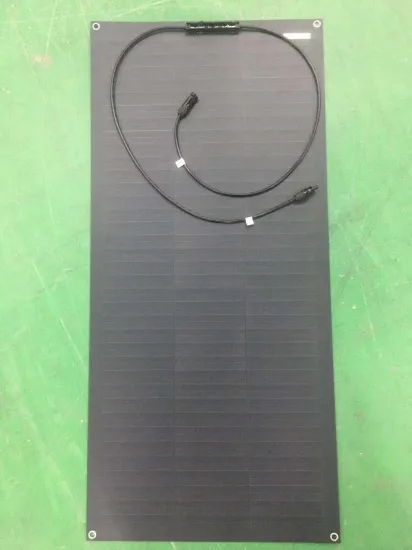

100W Flexible Solar Panel 90W 110W 120W Solar Panels for RV Boat
100W Flexible Solar Panel 90W 110W 120W Solar Panels for RV Boat
100W Flexible Solar Panel 90W 110W 120W Solar Panels for RV Boat
100W Flexible Solar Panel 90W 110W 120W Solar Panels for RV Boat
100W Flexible Solar Panel 90W 110W 120W Solar Panels for RV Boat
1 / 5
100W Flexible Solar Panel 90W 110W 120W Solar Panels for RV Boat
100W Flexible Solar Panel 90W 110W 120W Solar Panels for RV Boat
100W Flexible Solar Panel 90W 110W 120W Solar Panels for RV Boat
100W Flexible Solar Panel 90W 110W 120W Solar Panels for RV Boat
100W Flexible Solar Panel 90W 110W 120W Solar Panels for RV Boat

100W Flexible Solar Panel 90W 110W 120W Solar Panels for RV Boat

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Product Information
Model NO.
FFXS-100W
Application
Industrial
Certification
ISO, CB, CE, TUV, RoHS
Material
Monocrystalline Silicon
Power
100W
Efficiency
21.5%
Dimensions
1050mm x 540mm x 3mm
Solar Cell
Advanced Shingled Solar Cells
Front Cover
ETFE/Tpt Film
Junction Box
IP67 Waterproof
Technical Specifications
ModelFFXS-100W
Maximum Power (Pmax)100W
Open Circuit Voltage (Voc)18V
Short Circuit Current (Isc)6.67A
Voltage at maximum power (Vmp)21.6V
Current at maximum power (Imp)7.34A
No. of Cell32
Weight2.9kg
Maximum System Voltage1000 VDC (TÜV-EN/IEC61215) / 600VDC
Key Features
⚡ Non-Glass Design
ETFE or Polish PET coating for durability without fragility.

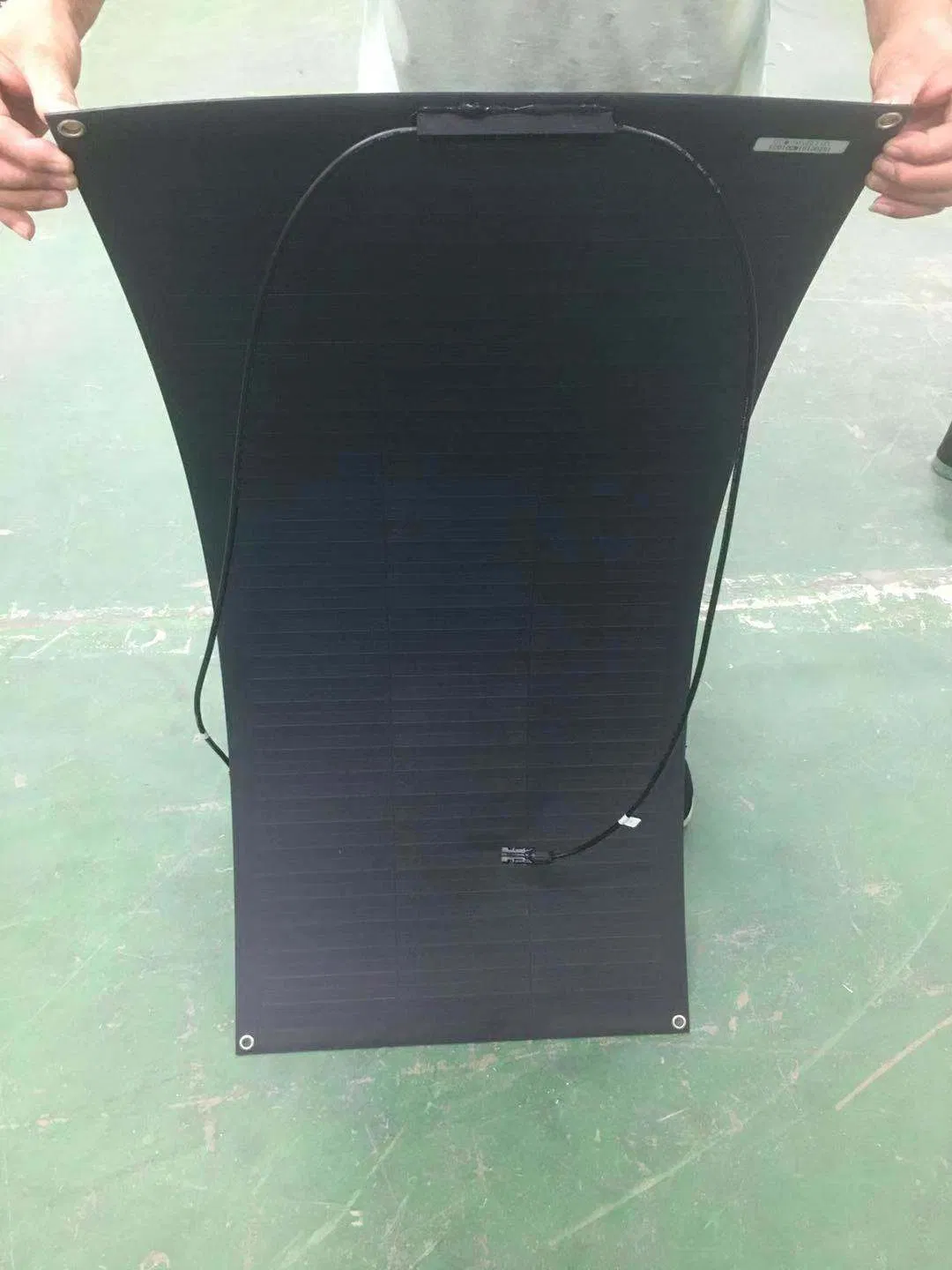

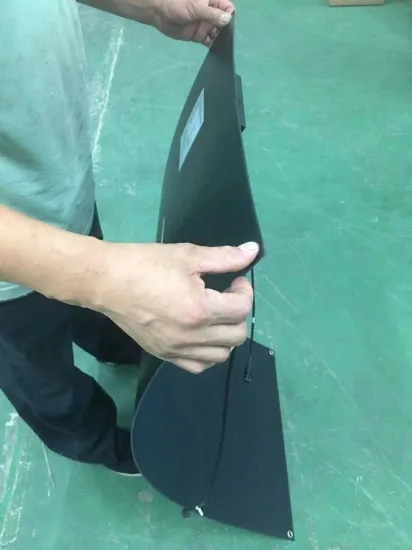

🔄 Semi-Flexible
Bending angle up to 30-90 degrees for curved surfaces.
☁️ Lightweight
Only 3mm thickness, easy to carry and install on RVs or yachts.
🛡️ Weatherproof
IP67 waterproof junction box and unbreakable protective film.
☀️ High Efficiency
Mono crystalline solar panels with 21.5% efficiency.
🚶 Walkable
Can be stepped on with soft-soled shoes.
Product Showcase & Applications
Flexible Solar Panel Detail

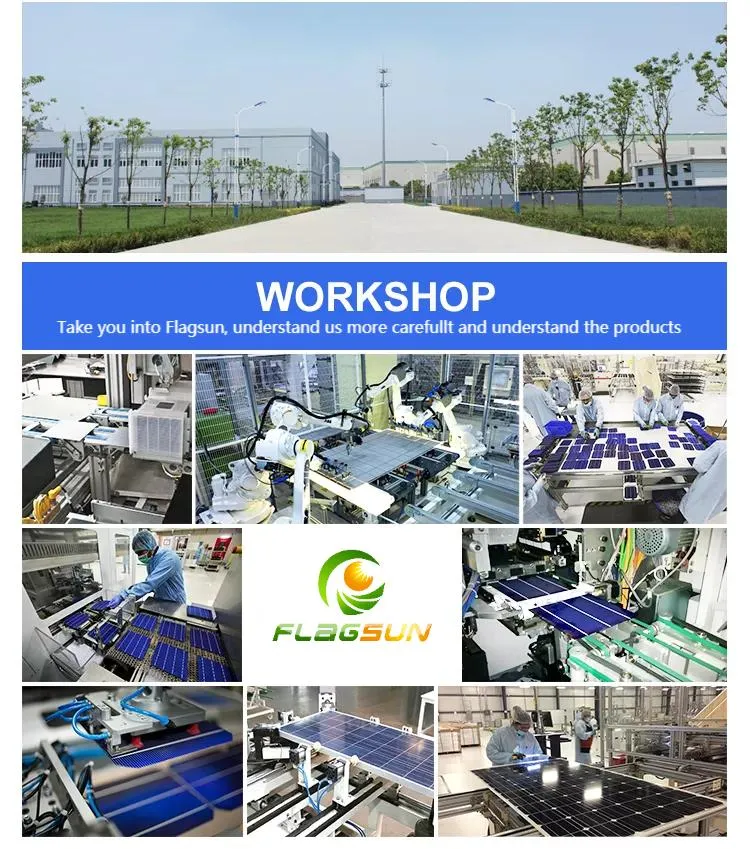

Solar Panel Structure

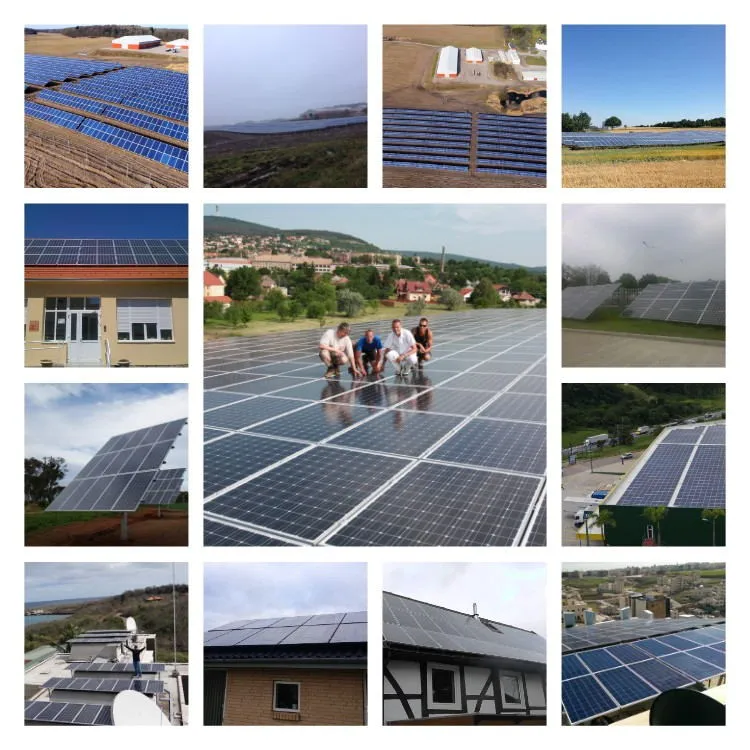

Application Scenario
Production & Quality Control
Production Process
Exhibition Display

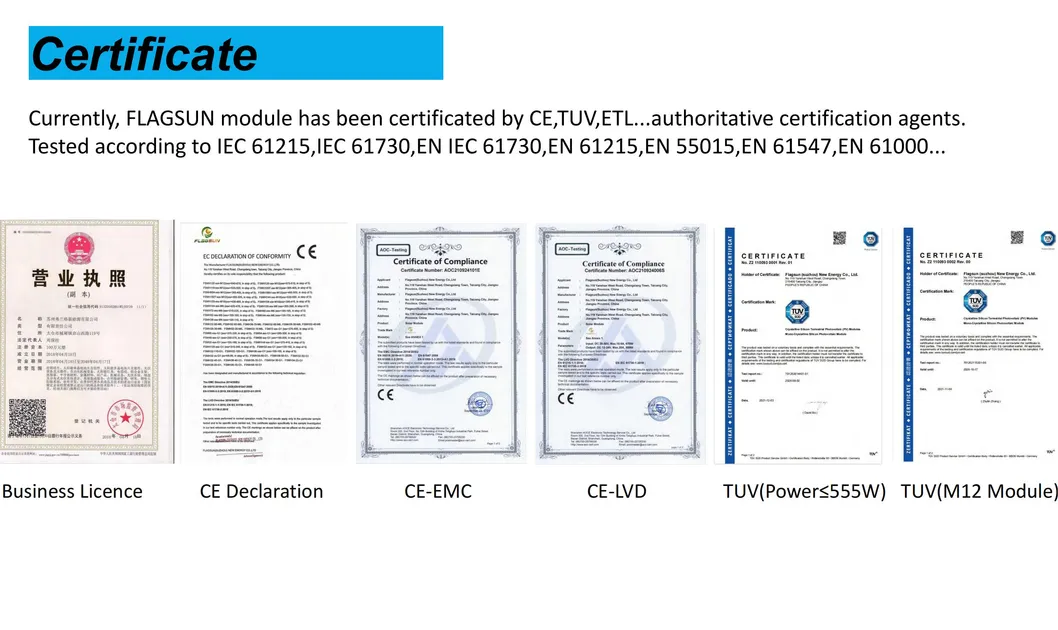

Certifications
Packaging & Logistics
Package
Carton Box or Wooden Box for samples.
Shipping
DHL, FEDEX, UPS, TNT, Air and Sea.
Packaging Detail
Frequently Asked Questions
How flexible is this solar panel?
The panel is semi-flexible and can be bent to an angle of 30 to 90 degrees, making it ideal for curved surfaces like RV roofs or boat decks.
Is it durable enough to be walked on?
Yes, the design allows the panel to be stepped on when wearing soft-soled shoes, thanks to its unbreakable protective film coating.
What is the advantage of ETFE coating?
ETFE coating provides high light transmittance, is more durable against weather conditions, and offers better heat resistance compared to standard PET.
Can I use this panel in marine environments?
Absolutely. With an IP67 waterproof junction box and weatherproof design, it is widely applied to yachts, boats, and marine applications.
How is the panel installed?
The panel is lightweight (2.9kg) and only 3mm thick, allowing for easy jointing and installation using adhesive or mounting structures.
What are the power specifications?
This model provides a maximum power of 100W with a high conversion efficiency of 21.5% using monocrystalline silicon cells.

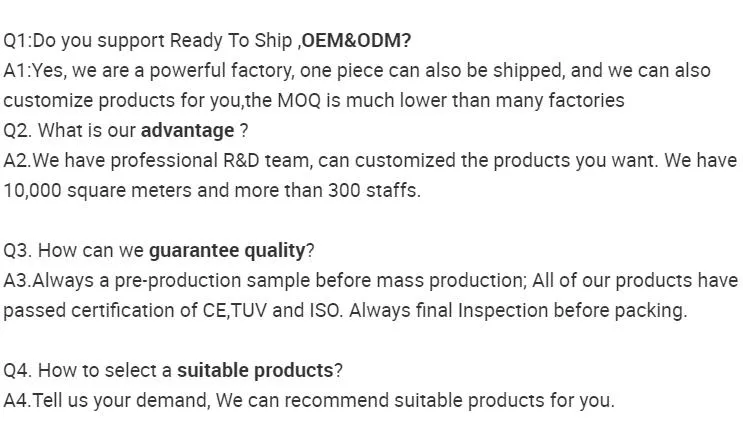

FAQ Illustration
