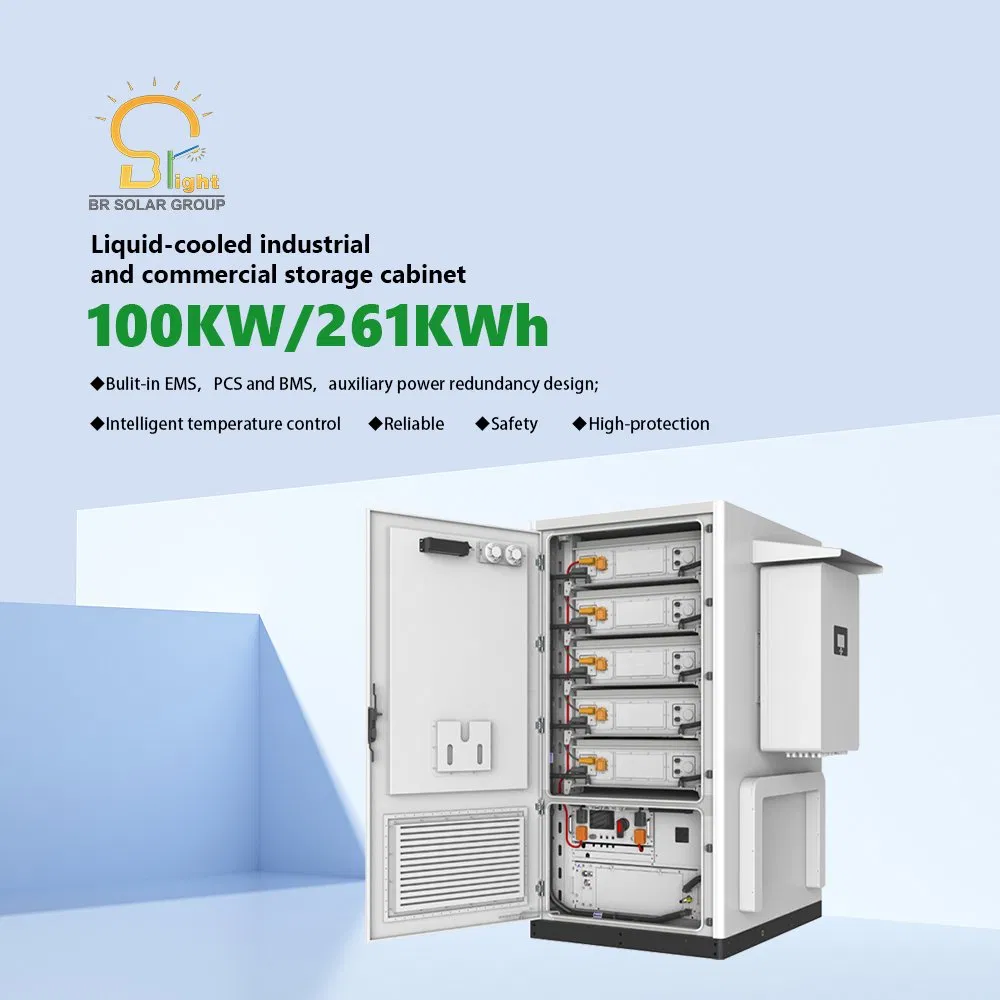

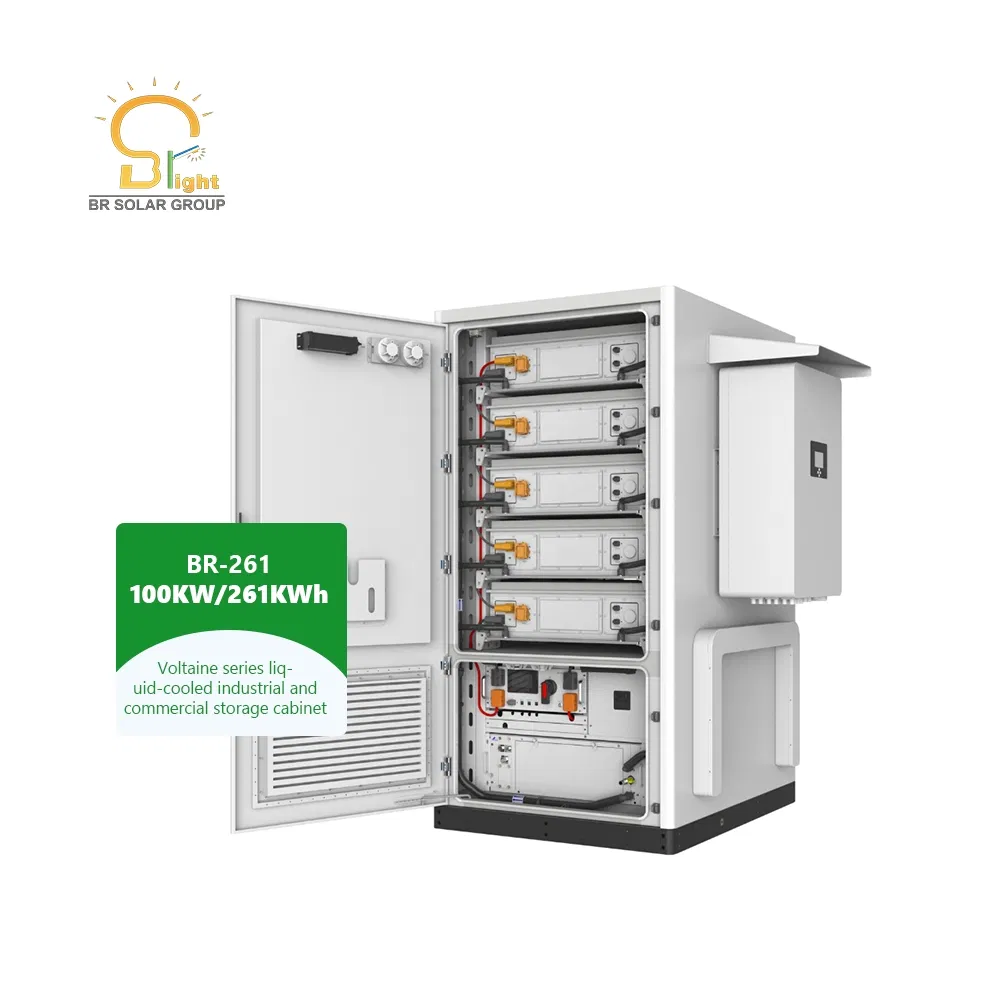

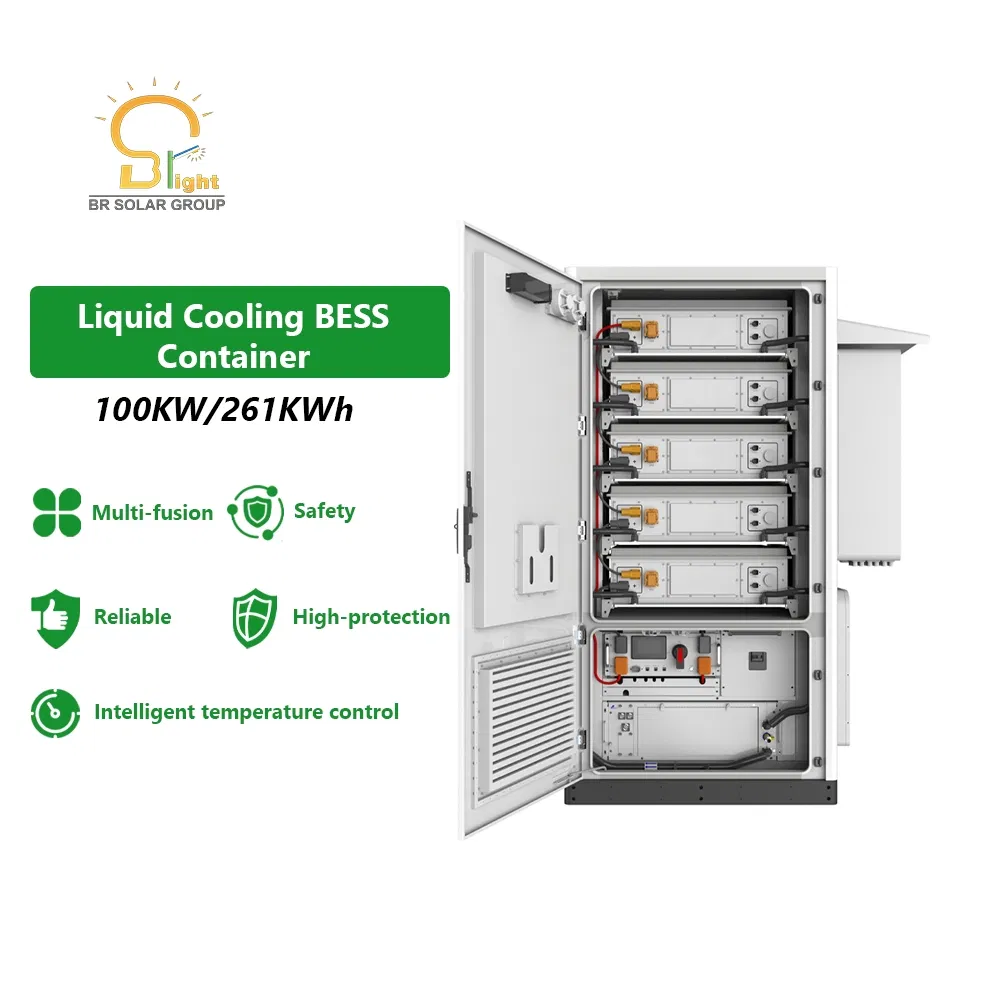

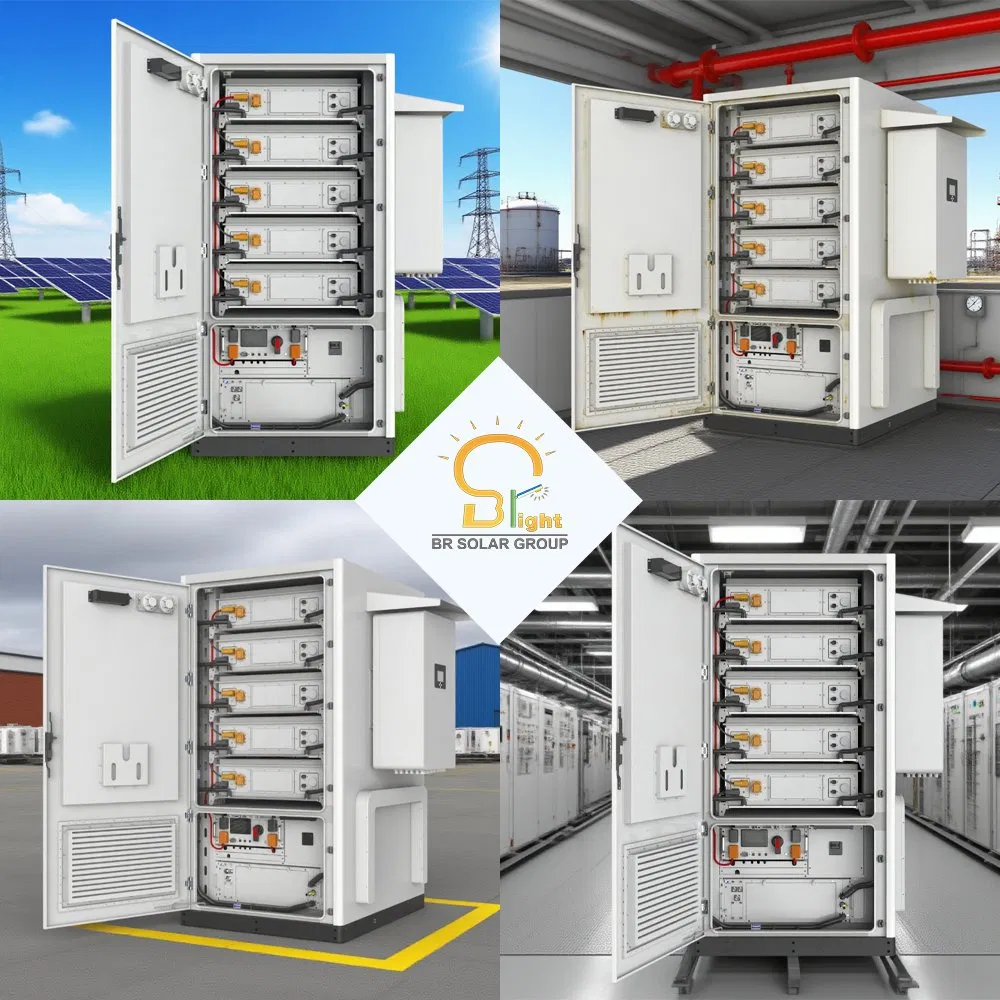

Br Solar 100kw Liquid Cooling Industrial Cabinet 261kwh LFP Battery Container Solar Energy Storage System
Br Solar 100kw Liquid Cooling Industrial Cabinet 261kwh LFP Battery Container Solar Energy Storage System
Br Solar 100kw Liquid Cooling Industrial Cabinet 261kwh LFP Battery Container Solar Energy Storage System
Br Solar 100kw Liquid Cooling Industrial Cabinet 261kwh LFP Battery Container Solar Energy Storage System
Br Solar 100kw Liquid Cooling Industrial Cabinet 261kwh LFP Battery Container Solar Energy Storage System
1 / 5
Br Solar 100kw Liquid Cooling Industrial Cabinet 261kwh LFP Battery Container Solar Energy Storage System
Br Solar 100kw Liquid Cooling Industrial Cabinet 261kwh LFP Battery Container Solar Energy Storage System
Br Solar 100kw Liquid Cooling Industrial Cabinet 261kwh LFP Battery Container Solar Energy Storage System
Br Solar 100kw Liquid Cooling Industrial Cabinet 261kwh LFP Battery Container Solar Energy Storage System
Br Solar 100kw Liquid Cooling Industrial Cabinet 261kwh LFP Battery Container Solar Energy Storage System

Br Solar 100kw Liquid Cooling Industrial Cabinet 261kwh LFP Battery Container Solar Energy Storage System

Customization: Available
After-sales Service: Yes
Warranty: 10 Years
Send Inquiry

Product Description

Basic Specifications

Condition
New
Certification
ISO, CB, CE, TUV
Application
Industrial, Commercial
Battery Type
LFP 3.2V314ah
Grid Connection
Off Grid, Hybrid Grid
Protection Class
IP55
Cooling System
Liquid Cooling
Capacity
261 kWh
AC Output
50/60Hz; 380/400VAC
Grid Type
Three-Phase Five-Wire

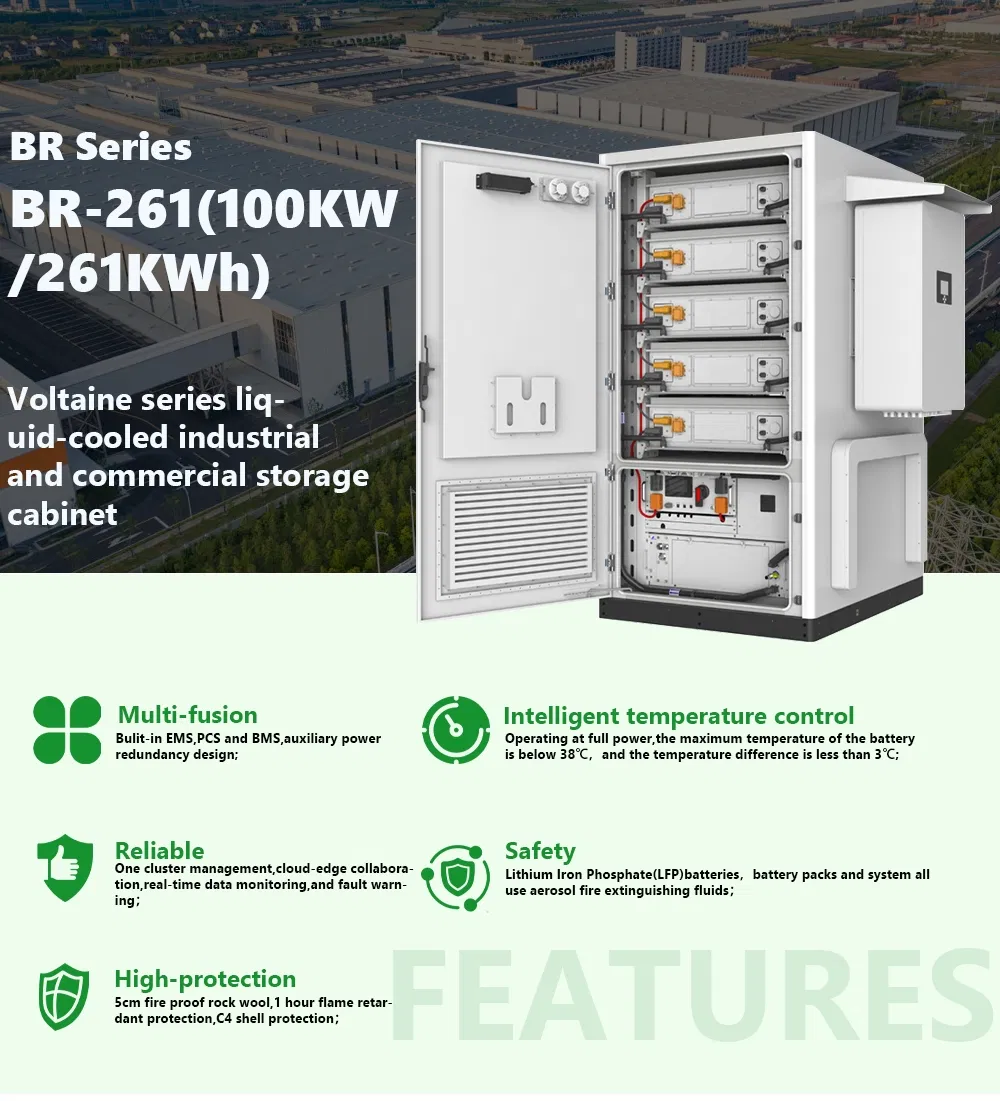

Energy Storage System Container

Technical Parameters

System Parameters
Rated output power(kW)100
Capacity(kWh)261
Dimensions(W/D/H, mm)1100×1400×2380
Weight(kg)≤3000
Maximum cycle efficiency92%
Operating altitude(m)≤2000
Converter Parameters
Rated output current(A)144
Maximum output current(A)192
Power factor−0.99~+0.99
Maximum efficiency≥98.2%
Battery Technical Parameters
Cell typeLFP 3.2V314Ah
Cycle life≥6000 (@25ºC±2ºC, 0.5C/0.5C, 70%EOL)

Product Gallery

Industrial Cabinet Detail
LFP Battery Container
Solar Energy System Setup
Liquid Cooling Unit
Internal Component View
System Interface

Packaging & Delivery

Package Size
110.00cm * 140.00cm * 238.00cm
Gross Weight
1500.000kg
Transport Package
Container

Frequently Asked Questions

What is the total capacity and power of this system?
The system provides a rated output power of 100kW and a total energy storage capacity of 261kWh.
What cooling technology is used in this industrial cabinet?
This system utilizes advanced Liquid Cooling technology to ensure optimal battery temperature and performance.
What type of battery cells are integrated into the unit?
The cabinet uses high-quality LFP (Lithium Iron Phosphate) 3.2V 314Ah cells, known for safety and long cycle life.
What is the expected cycle life of the battery?
The system is designed for a cycle life of ≥6000 cycles at 25ºC, maintaining 70% of its original capacity (EOL).
Can this system be used in harsh outdoor environments?
Yes, it features an IP55 protection class and C4 corrosion protection level, making it suitable for various industrial and commercial environments.
What types of grid connections are supported?
It supports both Off-Grid and Hybrid Grid connections, providing flexibility for different energy management needs.
