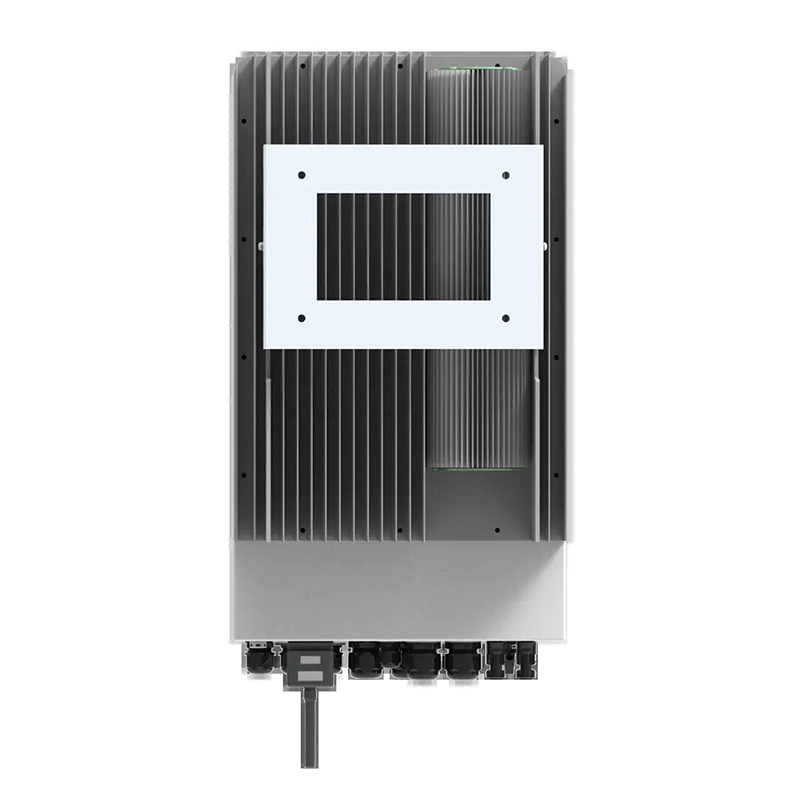

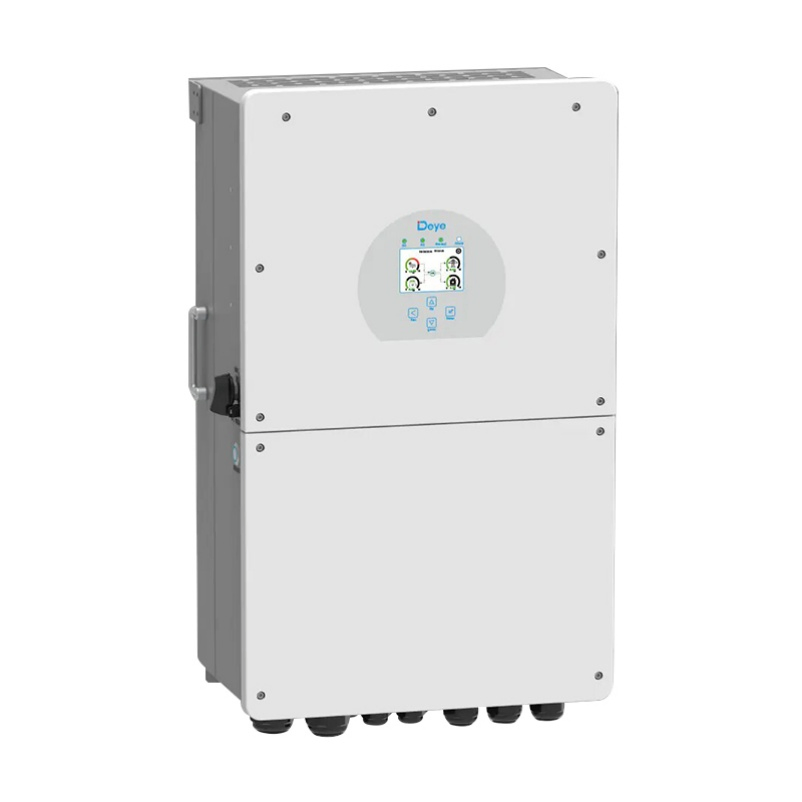

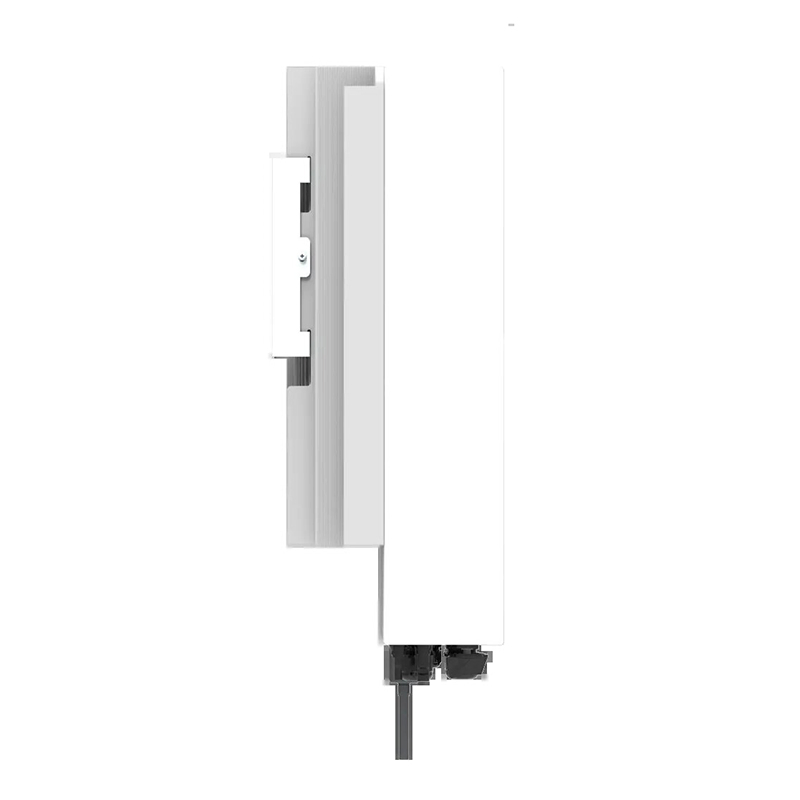

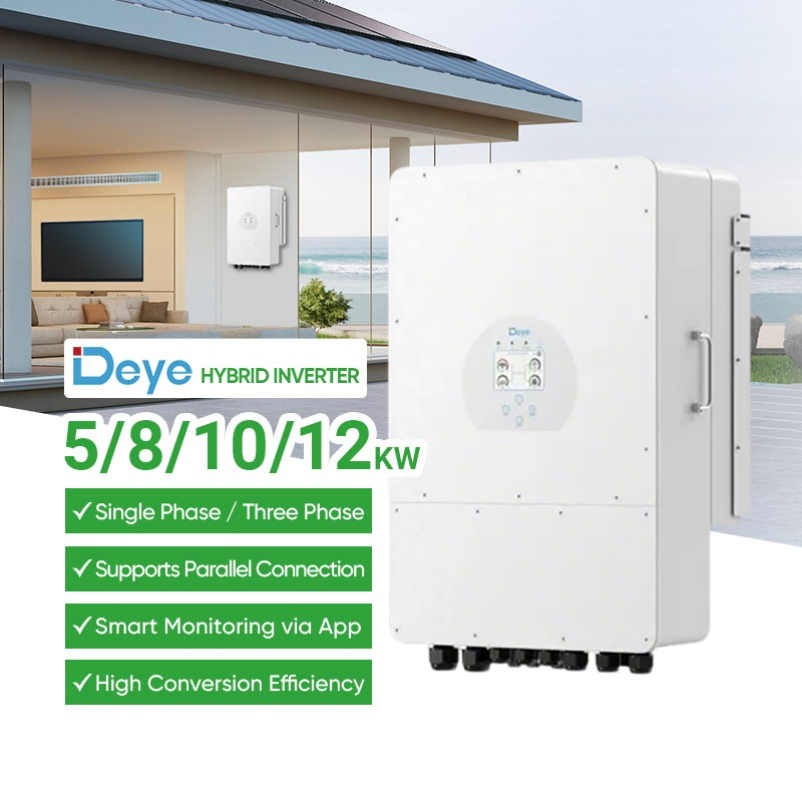

Deye Solar Inverter Low Frequency Solar Inverter 48V 8kw 10kw 12kw 12kw 3pH MPPT Hybrid Grid Solar Power Inverter Price with WiFi for Home

1 / 5

Deye Solar Inverter Low Frequency Solar Inverter 48V 8kw 10kw 12kw 12kw 3pH MPPT Hybrid Grid Solar Power Inverter Price with WiFi for Home

Customization:	Available
After-sales Service:	Yes
Warranty:	5 Years

Send Inquiry

Product Description

Basic Specifications

Model NO.

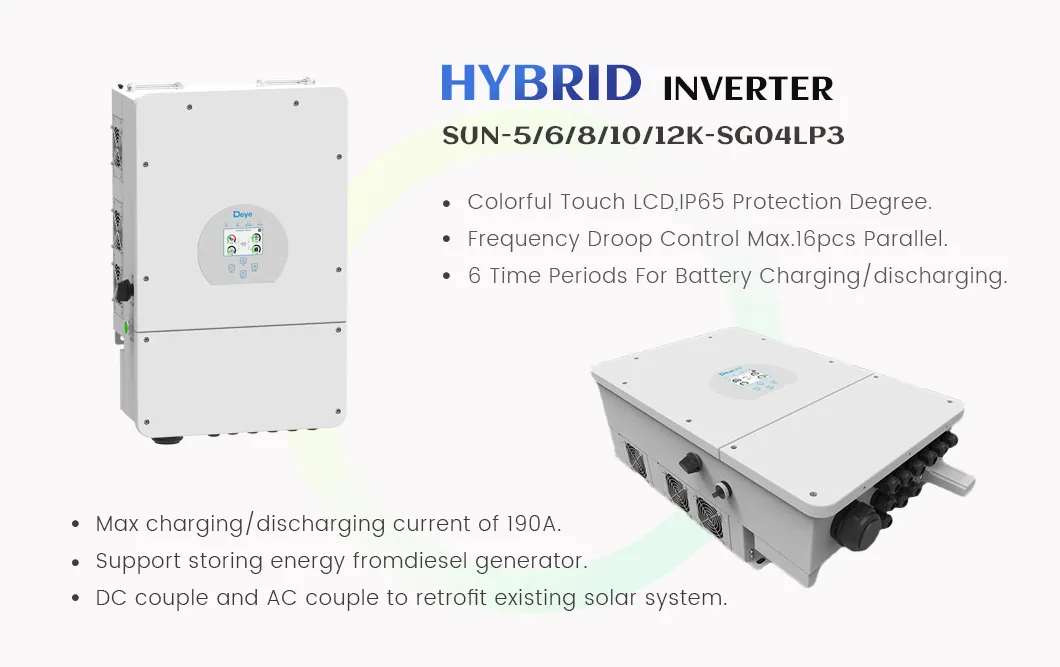

SUN-5/6/8/10/12K-SG04LP3

Nature of Source

Active Inverter

Phase

Three Phase

Output Power

>1000W

Certification

CE, ISO9001

Type

DC/AC Inverters

Power Source

Solar Power

Circuit Topologies

Push-pull Type

Weight (Kg)

33.6

Protection Degree

IP65

Battery Range

40-60V

MPPT Range

200V-650V

Product Description

Technical Parameters

Model	5K-SG04LP3	6K-SG04LP3	8K-SG04LP3	10K-SG04LP3	12K-SG04LP3
Battery Type	Lead-acid or Lithium-ion
Battery Voltage (V)	40-60V
Max. Charging Current (A)	120A	150A	190A	210A	240A
Max. DC Input Power (W)	6500W	7800W	10400W	13000W	15600W
MPPT Range (V)	200V-650V
Rated AC Output (W)	5000W	6000W	8000W	10000W	12000W
Max. Efficiency	97.6%
Protection Degree	IP65

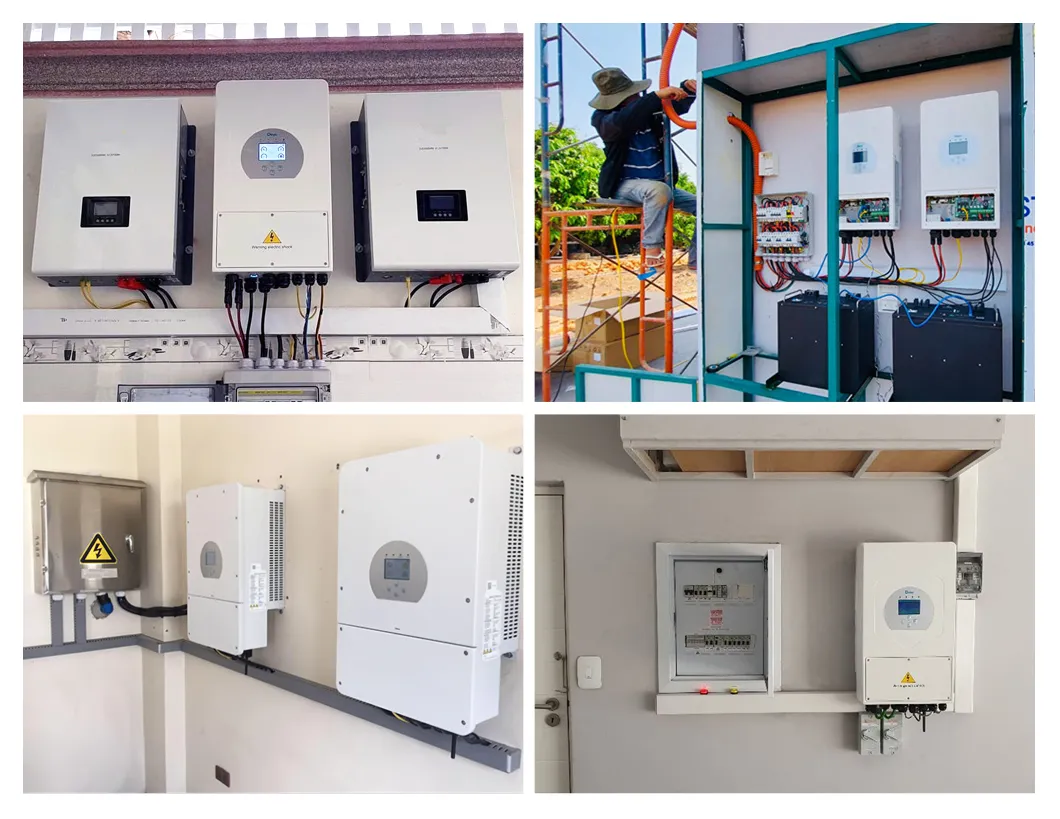

Project Cases

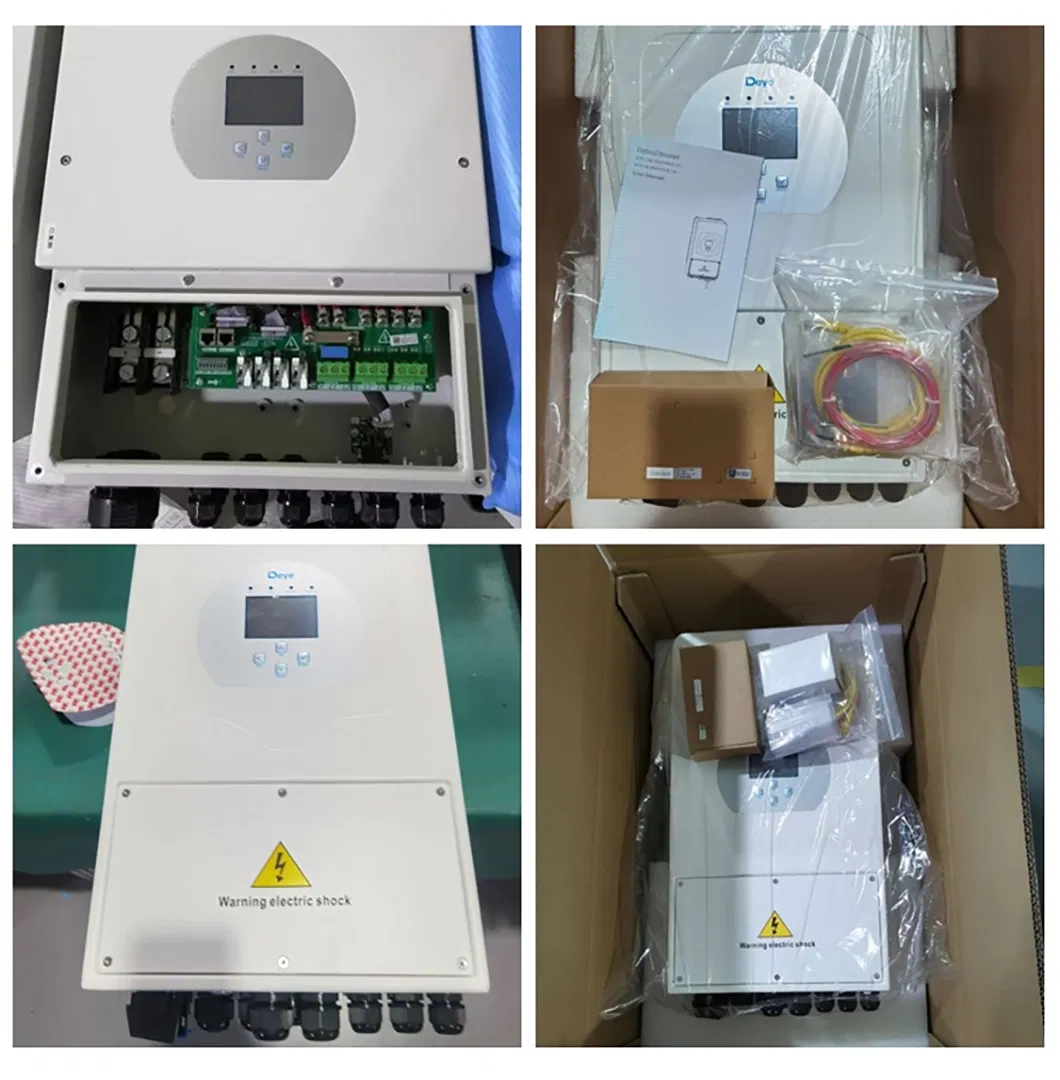

Packaging & Shipping

Certifications & Exhibition

Global Cooperation

Frequently Asked Questions

Q1: Does this inverter support both Lithium and Lead-acid batteries?

Yes, the system is designed to be compatible with both Lead-acid and Lithium-ion batteries with a voltage range of 40-60V.

Q2: Can it be installed outdoors?

Yes, the inverter features an IP65 protection degree, making it dust-proof and water-resistant for reliable outdoor installation.

Q3: How many MPPT trackers are included?

The unit is equipped with 2 MPPT trackers to optimize solar energy harvest from different panel orientations.

Q4: Is remote monitoring available for this model?

Yes, it supports communication via RS485 and CAN interfaces, allowing for seamless integration with BMS and remote monitoring systems.

Q5: What is the peak power capacity during off-grid operation?

The inverter can handle a peak power of up to 2 times its rated power for 10 seconds during off-grid mode to support high-startup loads.

Q6: What is the standard warranty period?

The product comes with a standard 5-year warranty, ensuring long-term reliability and support.
