Kemapower 3kw 5kw 6kw 11kw Hybrid off Grid Solar Inverter 230VAC with MPPT Solar Charge Controller All in One for Sale
Kemapower 3kw 5kw 6kw 11kw Hybrid off Grid Solar Inverter 230VAC with MPPT Solar Charge Controller All in One for Sale
Kemapower 3kw 5kw 6kw 11kw Hybrid off Grid Solar Inverter 230VAC with MPPT Solar Charge Controller All in One for Sale
Kemapower 3kw 5kw 6kw 11kw Hybrid off Grid Solar Inverter 230VAC with MPPT Solar Charge Controller All in One for Sale
Kemapower 3kw 5kw 6kw 11kw Hybrid off Grid Solar Inverter 230VAC with MPPT Solar Charge Controller All in One for Sale
1 / 5
Kemapower 3kw 5kw 6kw 11kw Hybrid off Grid Solar Inverter 230VAC with MPPT Solar Charge Controller All in One for Sale
Kemapower 3kw 5kw 6kw 11kw Hybrid off Grid Solar Inverter 230VAC with MPPT Solar Charge Controller All in One for Sale
Kemapower 3kw 5kw 6kw 11kw Hybrid off Grid Solar Inverter 230VAC with MPPT Solar Charge Controller All in One for Sale
Kemapower 3kw 5kw 6kw 11kw Hybrid off Grid Solar Inverter 230VAC with MPPT Solar Charge Controller All in One for Sale
Kemapower 3kw 5kw 6kw 11kw Hybrid off Grid Solar Inverter 230VAC with MPPT Solar Charge Controller All in One for Sale

Kemapower 3kw 5kw 6kw 11kw Hybrid off Grid Solar Inverter 230VAC with MPPT Solar Charge Controller All in One for Sale

Customization: Available
After-sales Service: 1 Year
Warranty: 1 Year
Send Inquiry

Product Description

Basic Specifications
Model NO.
SUB-D
Source Flow
Active Inverter
Phase
Single
Output Power
>1000W
Certification
CE, ISO9001
Type
DC/AC Inverters
Power Source
Solar Power
Circuit Topology
Half-Bridge Type
Wave String
Pure Sine Wave
HS Code
8504403090
Off Grid Hybrid Solar Inverter Key Features
✓
High Frequency off grid hybrid solar inverter 3-11KW, PF=1
✓
3 in 1 design: Power Inverter + MPPT controller + Grid Charger
✓
Working without battery during daytime
✓
Support lithium activation wake-up and cold start function
✓
Intelligent distribution of solar panel/mains/battery power shares
✓
Adjustable Charge Current & Voltage for Lead acid / Lithium battery
✓

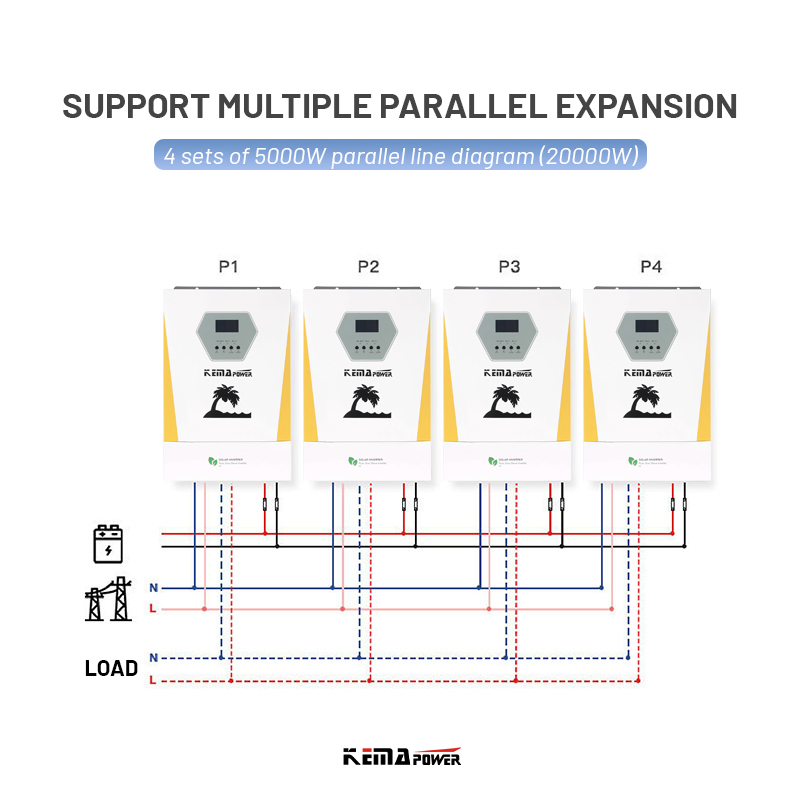

6.2KW/11KW models support parallel function up to 9 units
✓
Wide MPPT range 40-500VDC with high charge current options
✓
Multiple protection: overload, over temperature, short-circuit
Technical Specifications
Model SUB-D-E3024 SUB-D-3624 SUB-D-6248 SUB-D-11048
Rated Power 3KW 3.6KW 6.2KW 11KW
Input Voltage 220/230/240VAC
Output Waveform Pure Sine Wave
Efficiency (Peak) 97% (PV to INV) / 94% (Battery to INV)
Battery Voltage 24 VDC 24 VDC 48 VDC 48 VDC
Max PV Array Power 3KW 4.2KW 6.2KW 2*5.5KW
MPPT Range 50~500 VDC 150~500 VDC
Product Display

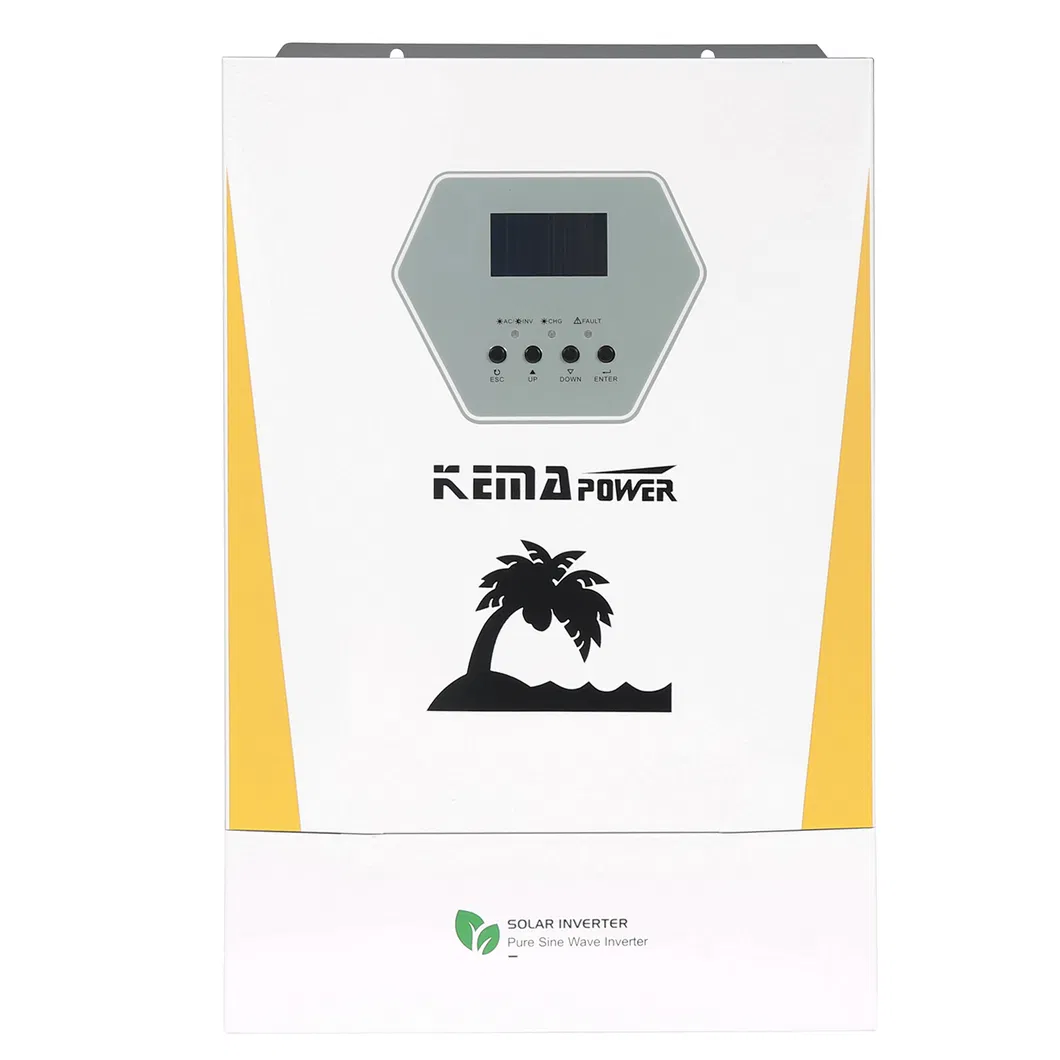

Inverter View 1

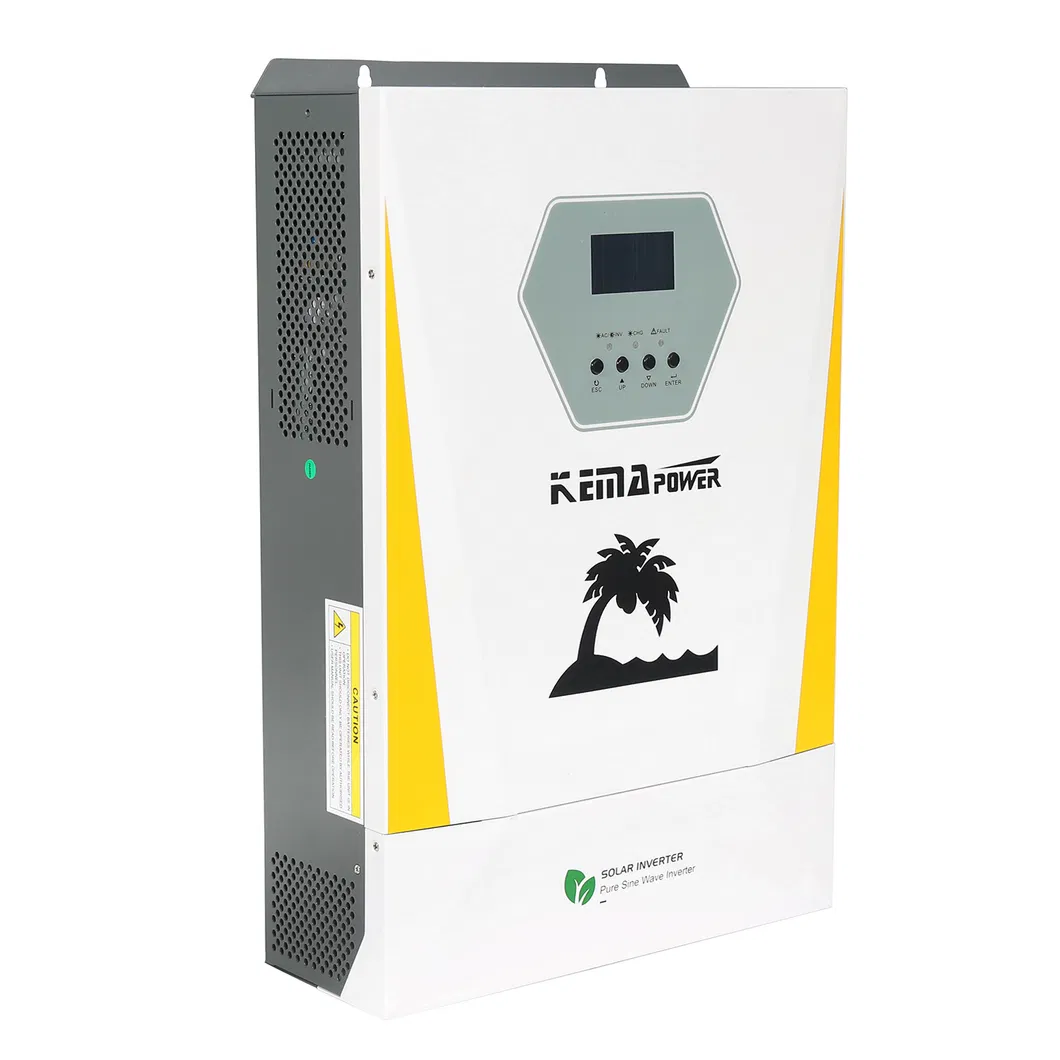

Inverter View 2

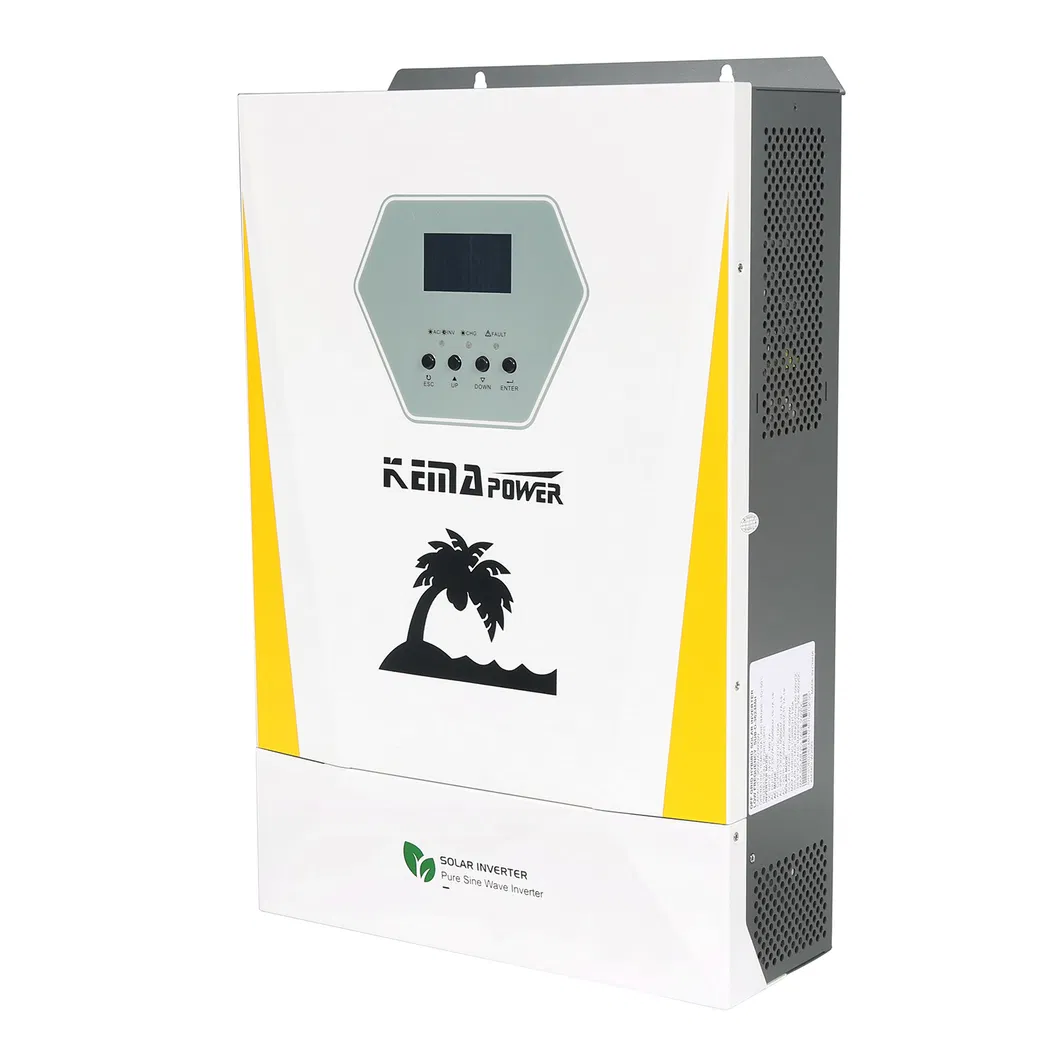

Inverter View 3

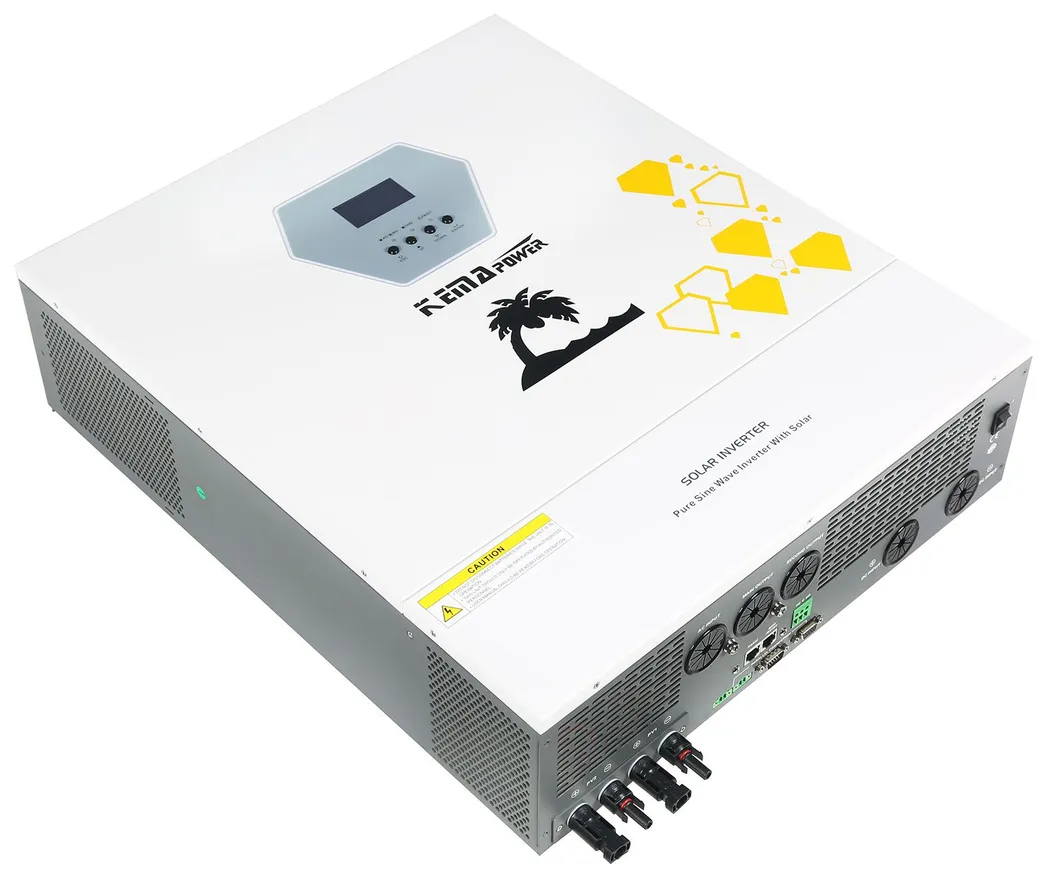

Inverter Detail 1

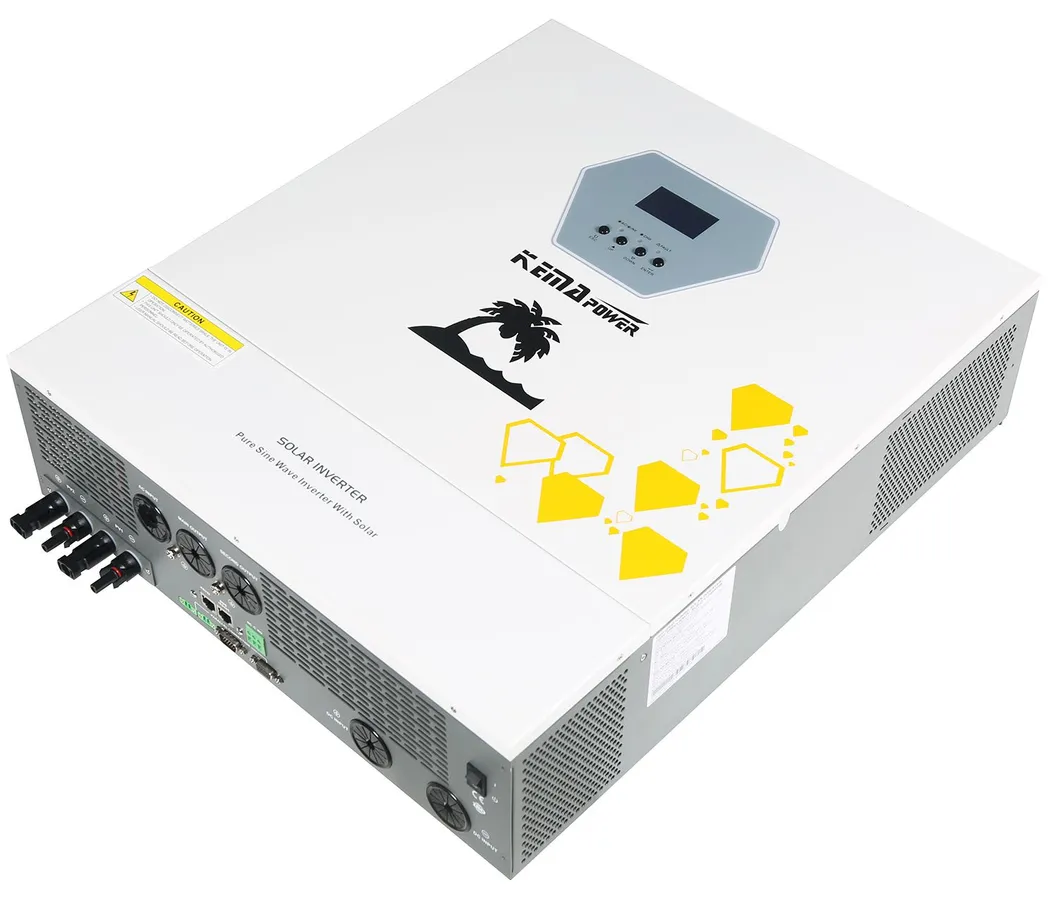

Inverter Detail 2

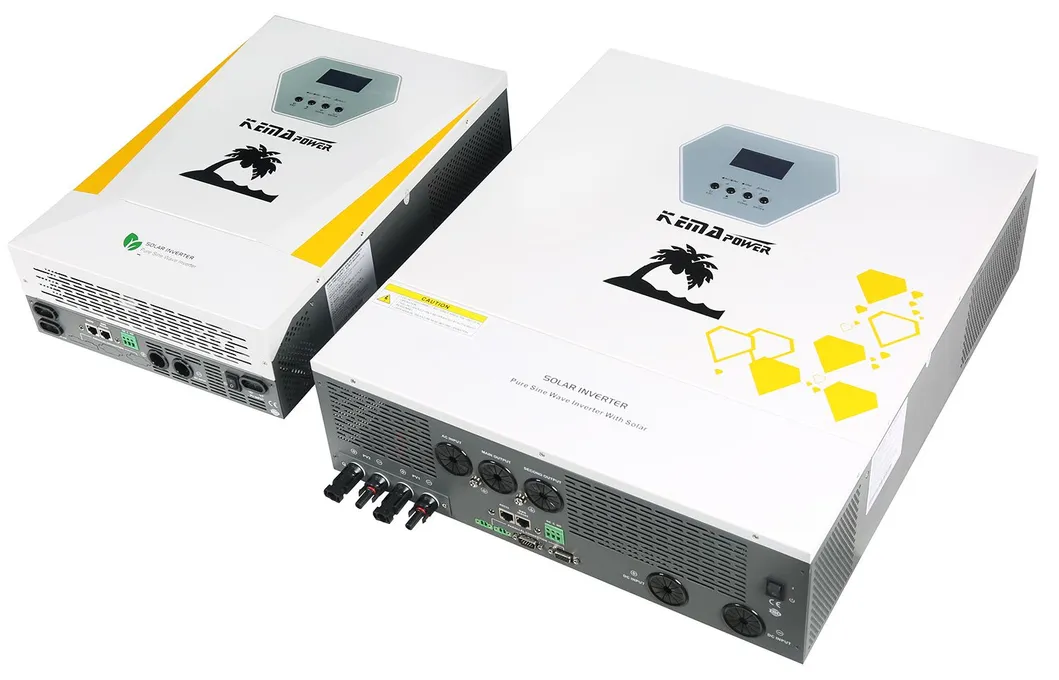

Application 1

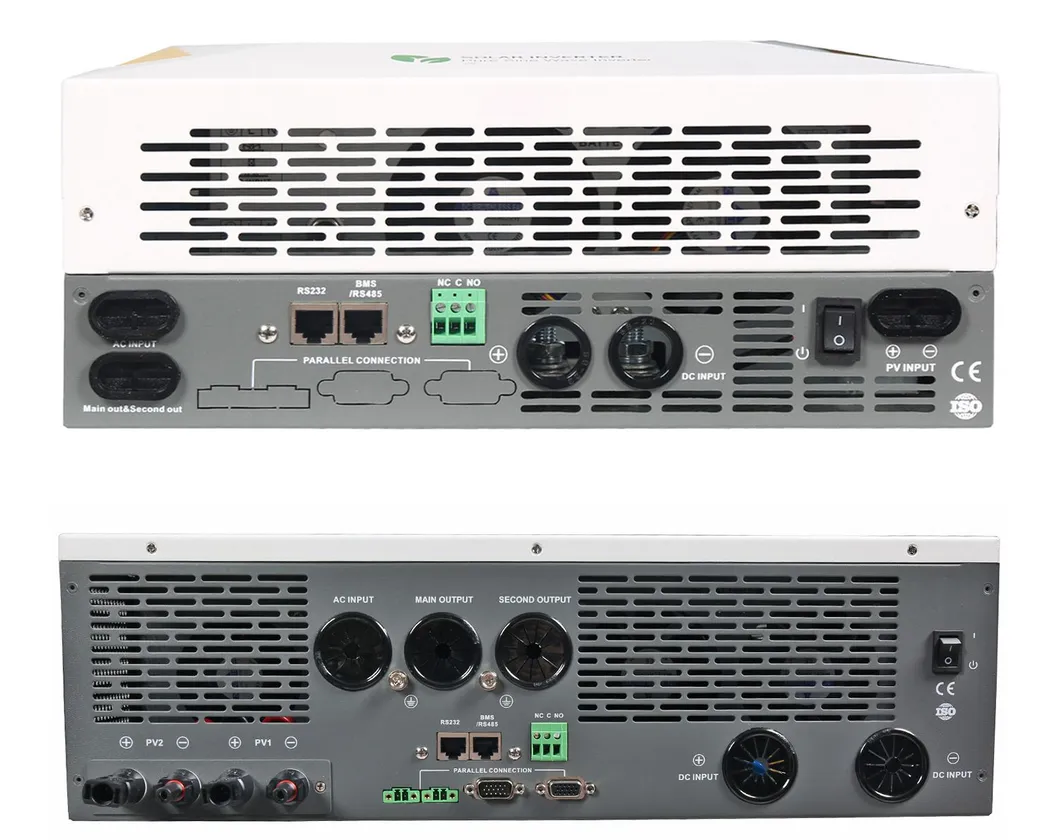

Application 2

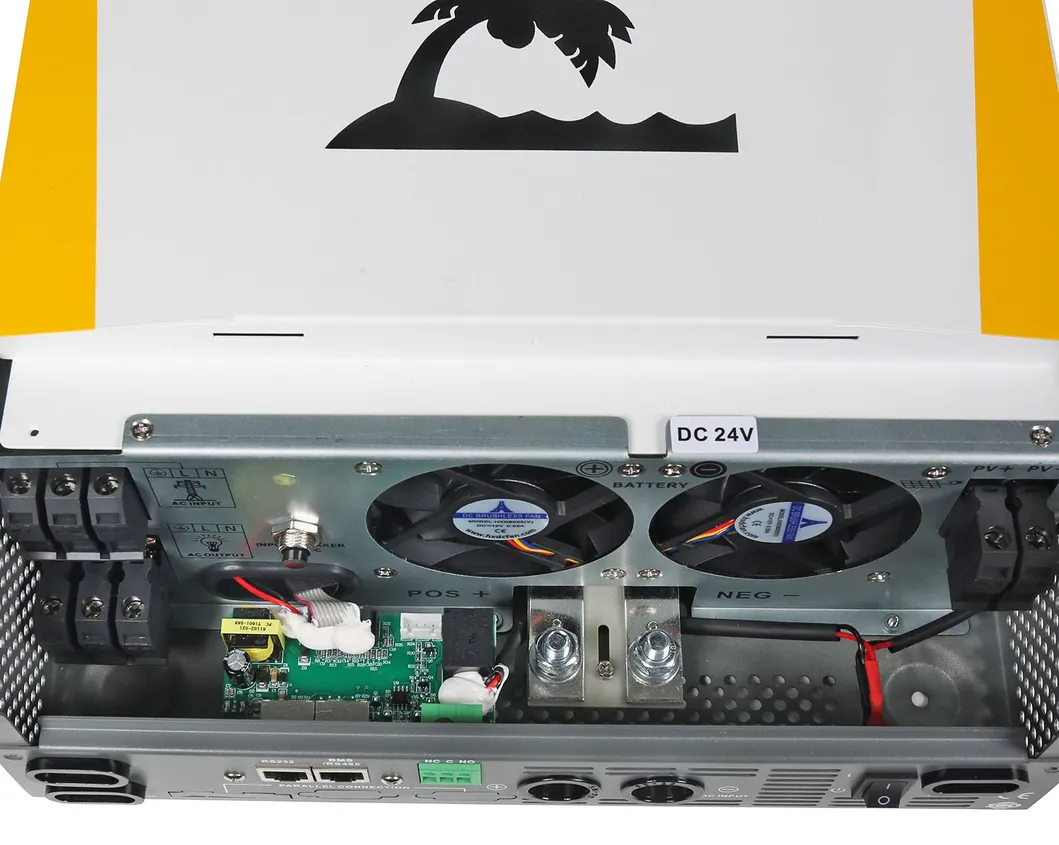

Application 3
Diagram 1 Diagram 2 Diagram 3 Diagram 4
Frequently Asked Questions
Can this hybrid inverter work without a battery?
Yes, the SUB-D series is designed to work without a battery during the daytime, utilizing solar energy directly to power the loads.
What types of batteries are compatible with this system?
It supports both Lead-acid and Lithium batteries, with adjustable charging voltage and current settings to meet specific battery requirements.
How many units can be connected in parallel?
The 6.2KW and 11KW models feature a parallel function that allows for connecting up to 9 units for larger power requirements.
Does the inverter support remote monitoring?
Yes, there are options for WiFi Plug or GPRS modules, enabling monitoring and management via a mobile app.
What is the peak efficiency of the unit?
The inverter reaches a peak efficiency of 97% when converting from PV to Inverter and 94% from Battery to Inverter.
Does it have protection against power surges?
Yes, it features a surge power capacity of 2 times the rated power for 5 seconds to handle high-start loads.
