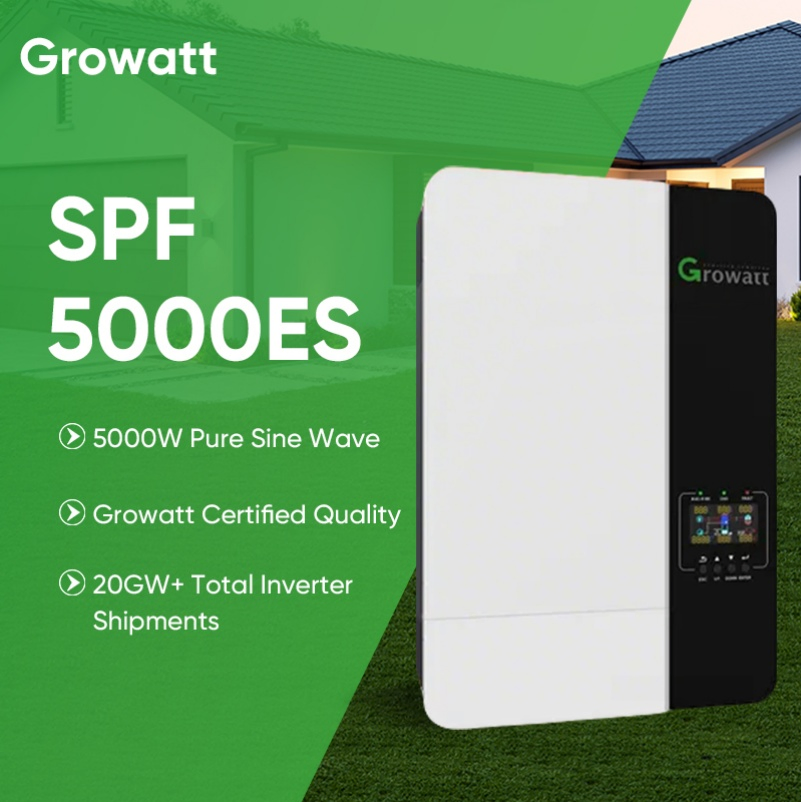

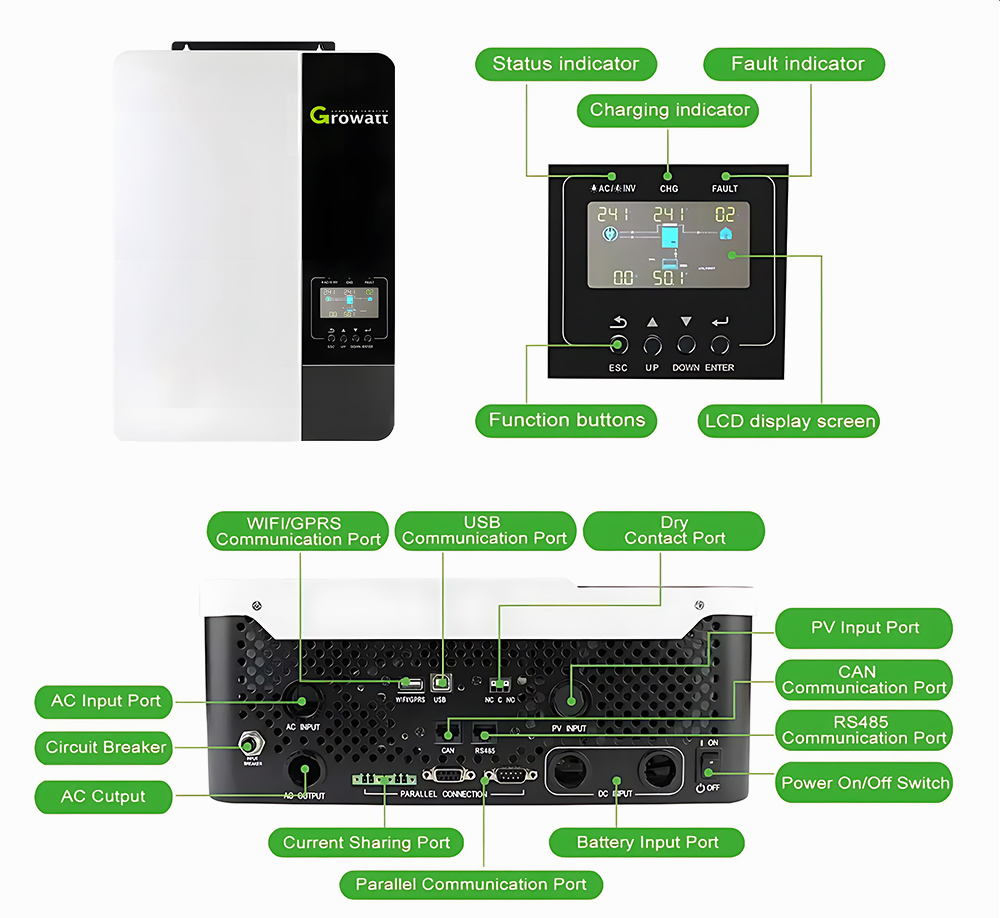

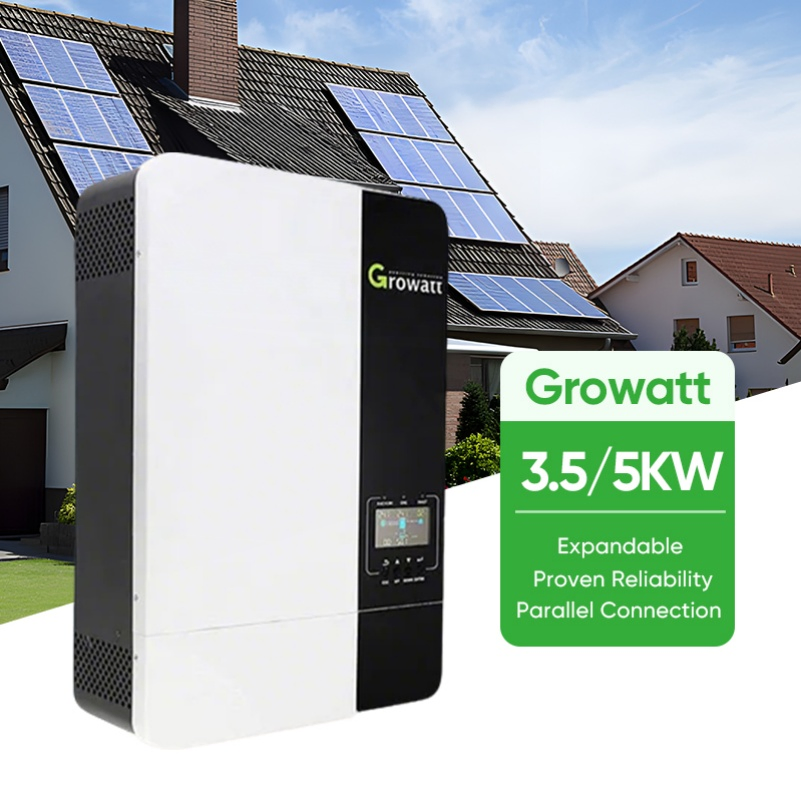

Growatt Solar Inverter SPF 3000es 3500es 5000 Es Inverters Pure Sine Wave 5kw off-Grid Inverter for Industrial and Commercial Use

Customization:	Available
After-sales Service:	Yes
Warranty:	2years

📋 Basic Info.

Model NO.

Growatt SPF-5000ES

Nature of Source Flow

Active Inverter

Phase

Single

Output Power

>1000W

Certification

CE, ISO9001, TUV

Type

DC/AC Inverters

Power Source

Solar Power

Circuit Topologies

Full-Bridge Type

Nature of Wave String

Sine Wave Inverter

Origin

China

📦 Packaging & Delivery

Package Size

61.00cm * 41.50cm * 22.00cm

Package Gross Weight

14.800kg

💡 Product Description

⚙ Product Parameters

Output data (AC)	SPF 3500 ES	SPF 5000 ES
Battery Voltage	48VDC
Battery Type	Lithium/Lead-acid
INVERTER OUTPUT
Rated Power	3500VA/ 3500W	5000VA/ 5000W
Parallel Capability	Yes, 6 units maximum
AC Voltage Regulation	230VAC ± 5% @ 50/60Hz
Surge Power	7000VA	10000VA
Efficiency (Peak)	93%
Waveform	Pure sine wave
SOLAR CHARGER
Maximum PV Array Power	4500W	6000W
MPPT Range @ Operating Voltage	120VDC ~ 430VDC
Maximum PV Voltage	450VDC
Maximum Solar Charge Current	80A	100A
PHYSICAL
Protection Degree	IP20
Dimension (W/H/D)	330/485/135mm	330/485/135mm
Net Weight	11.5kgs	12kgs

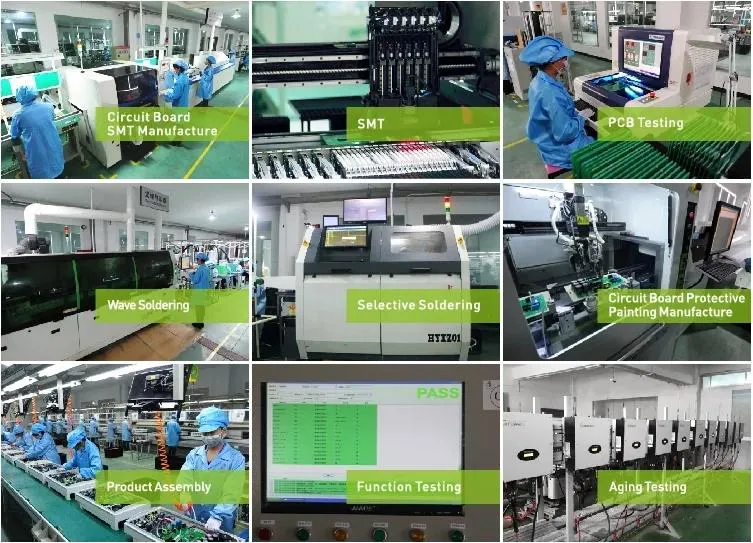

📈 Production Process

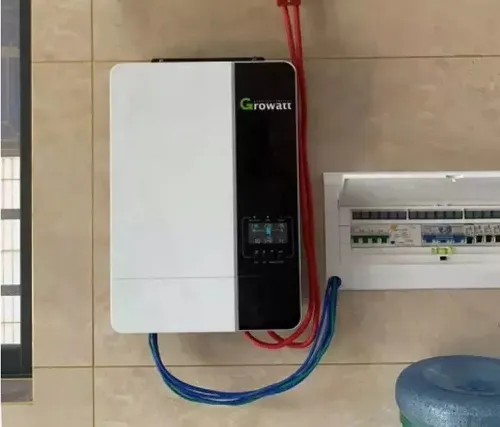

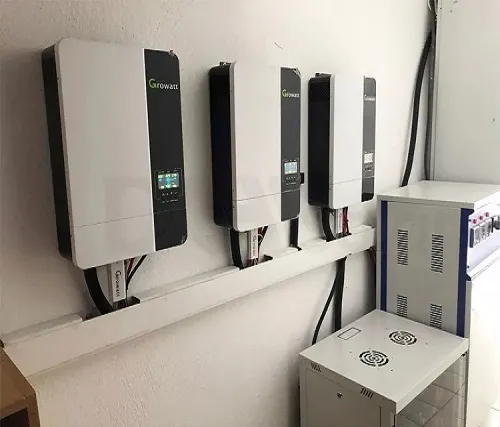

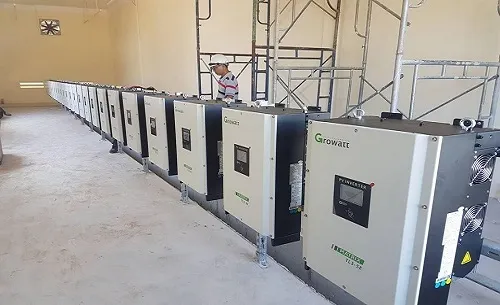

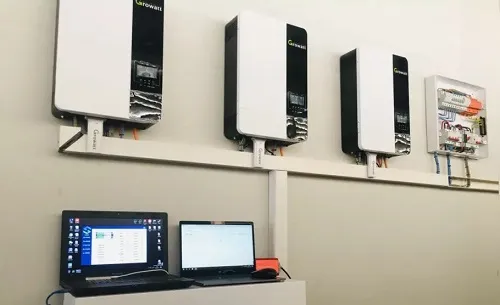

🏛 Project Case

🚢 Packaging & Shipping

❓ FAQ

How to install and use the solar inverter?

We have the English teaching manual and videos; All the videos about every step of machine disassembly, assembly, and operation will be provided to you.

What if I don't have import experience?

We have reliable forwarder agents which can ship items to you by sea, air, or express to your doorstep. We will help you choose the most suitable shipping service.

Can you provide technical support?

We provide online service through various messaging platforms and email. Our engineers can offer video calls to solve any problems after delivery.

How can I ensure it's a secure transaction?

Transactions can go through a professional platform to protect buyers' interests, ensuring your payment is held securely until you confirm receipt of the items.

Can the solar inverter be customized?

Yes, customization options for brand name, machine color, and unique designed patterns are available.

What types of solar solutions do you provide?

We provide residential/home solar systems, rooftop solar power stations, large-scale ground-mounted stations, and specialized agricultural or aquaculture solar solutions.
