Jchx Solar Screw Gound Photovoltaic Mounting System

Overview

Model NO.

JCHX

Certification

GB, ISO, CE, RoHS

Application

Commercial

Material

Steel

Type

Ground Bracket

Coating

Hot DIP Galvanized or Zinc Al Mg Coating

Design

Free

Production Capacity

100000 Tons / Year

Packaging & Delivery

Package Size

25.00cm * 20.00cm * 27.00cm

Gross Weight

500.000kg

Product Description

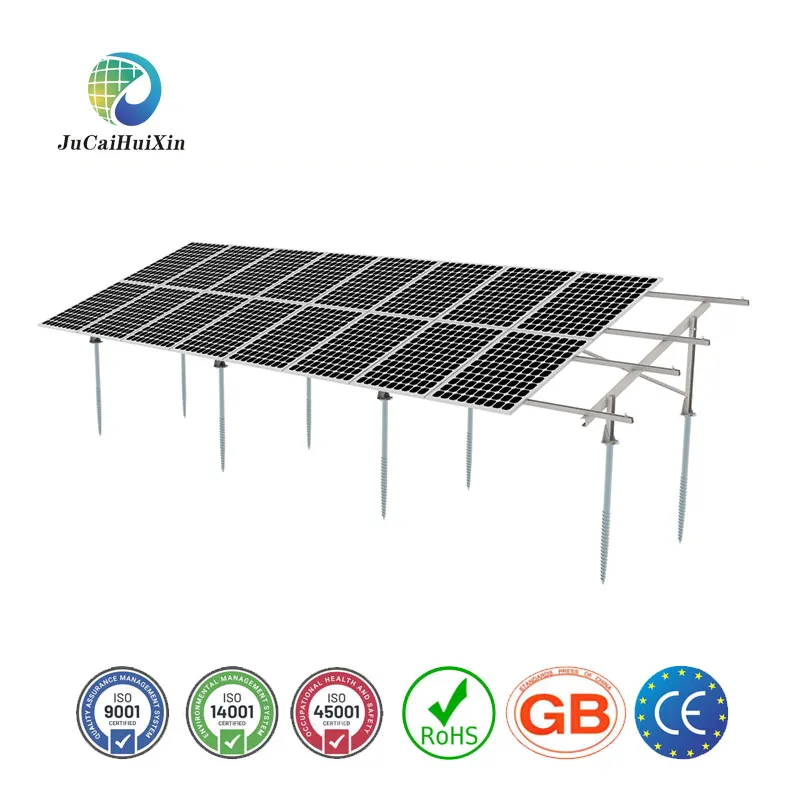

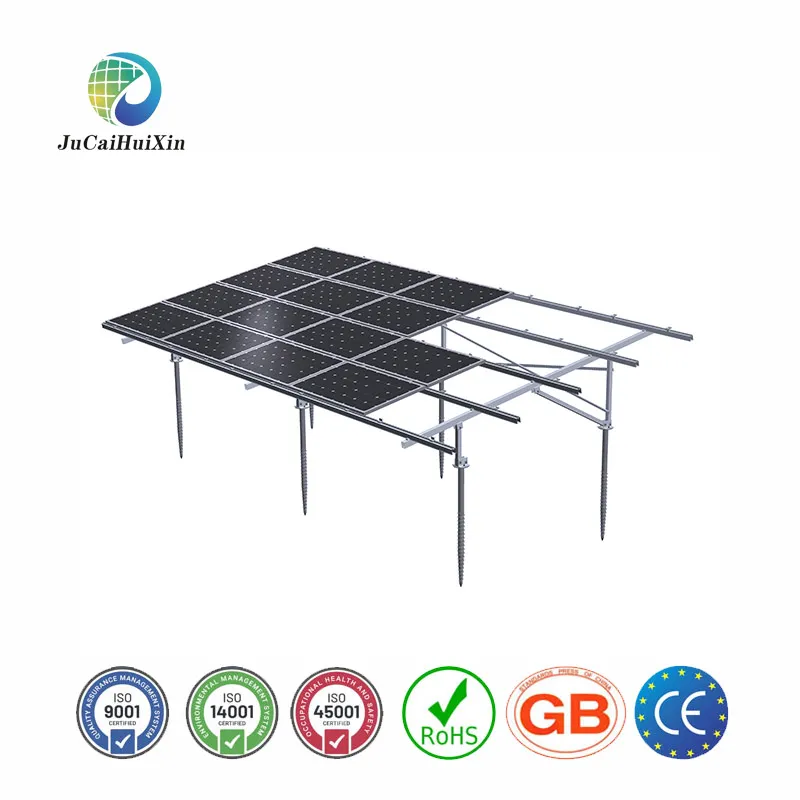

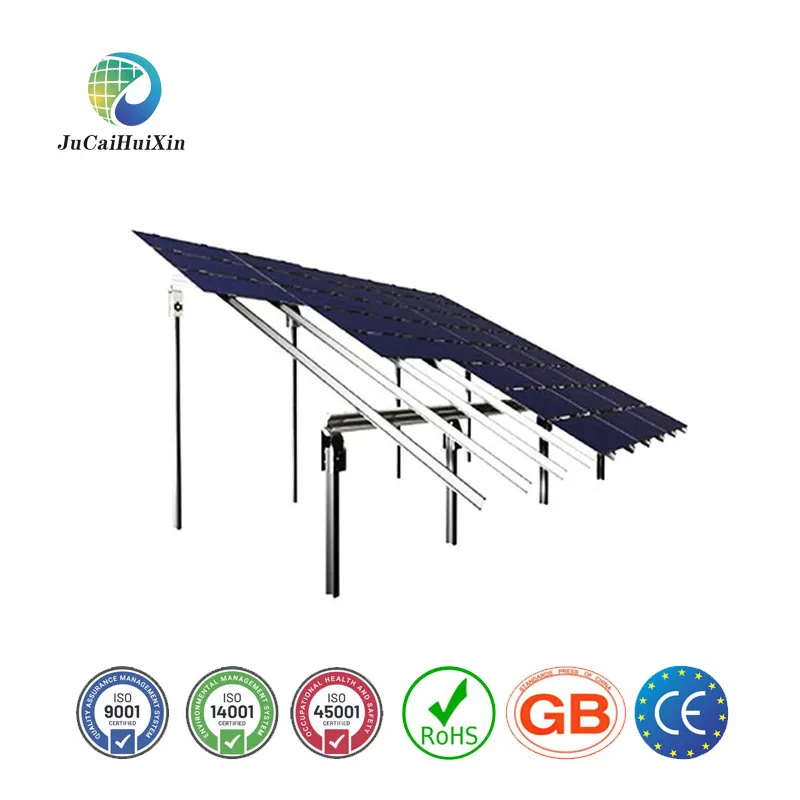

Carbon steel structure for ground-mounted photovoltaics is a solar photovoltaic bracket system, suitable for ground. The system is mainly composed of solar hook, solar fastener, aluminum rails, galvanized C steel channel and other components, which has the characteristics of simple structure, convenient installation and strong bearing capacity.

The main advantages include: 1) stable structure and ability to withstand large loads; 2) easy installation, no need for hoisting equipment; 3) wide range of application, can be used for various types of flat roof roofing; 4) reusable, save costs.

Technical Parameters
System Name	Solar Ground Mounting System	Design Standard	AS/NZS 1170, DIN 1055, JIS C8955:2017
Installation Site	Flat Roof, Ground	Building Code	IBC 2009 / CBC 2010
Tilt Angle	5-10°	Wind Load	60m/s
Snow Load	1.6KN/M²	Hook/Fastener	SUS304/AL/HDG Steel
Solar Module	Framed	Components	AL6005-T5(Anodized)
Panel Layout	Portrait or Landscape	Warranty	10-year warranty

Value-Added Services

Custom turnkey solar installation solutions
24/7 dedicated account support
Complimentary system design & samples
Full-cycle services from engineering to maintenance
Global collaboration for optimized solar energy utilization

Core Product Portfolio

Hot-dip galvanized mounting systems Zinc-aluminum-magnesium coated racks Aluminum alloy structures Stainless steel PV supports BIPV waterproof systems Solar carport systems

Company Profile

Our Advantages

Packaging & Shipping

Frequently Asked Questions

1. Is your carbon steel structure certified by CE? Yes, our carbon steel structure for ground-mounted photovoltaics fully complies with CE certification (EN 1090-1/EN 1090-2), ensuring it meets European safety, quality, and structural standards.

2. What load-bearing capacity does the structure support? Designed for high stability, it supports wind speeds up to 180 km/h (120 mph) and snow loads up to 1.5 kN/m² (31 psf), with customizable options for extreme weather.

3. What corrosion protection methods are used? The carbon steel is treated with hot-dip galvanizing (80-275μm zinc coating) or optional powder coating for extended resistance in humid or coastal environments.

4. Can the structure be customized for different terrains? Absolutely. It supports adjustable foundation designs (concrete anchors, ground screws, or ballast blocks) and modular configurations to fit uneven terrain or slopes.

5. What is the lead time for production and delivery? Standard pre-designed models ship within 15-30 days. Custom-sized or large-batch orders typically take 30-45 days.

6. What warranty and technical support are provided? We offer a 10-25 year anti-rust guarantee depending on the coating type and provide lifetime technical support for installation and maintenance.
