520W Flexible Solar Panel Ultra-Thin Panel Flexible Monocrystalline Solar Panel China Lightweight PV Module for Home
520W Flexible Solar Panel Ultra-Thin Panel Flexible Monocrystalline Solar Panel China Lightweight PV Module for Home
520W Flexible Solar Panel Ultra-Thin Panel Flexible Monocrystalline Solar Panel China Lightweight PV Module for Home
520W Flexible Solar Panel Ultra-Thin Panel Flexible Monocrystalline Solar Panel China Lightweight PV Module for Home
520W Flexible Solar Panel Ultra-Thin Panel Flexible Monocrystalline Solar Panel China Lightweight PV Module for Home
1 / 5
520W Flexible Solar Panel Ultra-Thin Panel Flexible Monocrystalline Solar Panel China Lightweight PV Module for Home
520W Flexible Solar Panel Ultra-Thin Panel Flexible Monocrystalline Solar Panel China Lightweight PV Module for Home
520W Flexible Solar Panel Ultra-Thin Panel Flexible Monocrystalline Solar Panel China Lightweight PV Module for Home
520W Flexible Solar Panel Ultra-Thin Panel Flexible Monocrystalline Solar Panel China Lightweight PV Module for Home
520W Flexible Solar Panel Ultra-Thin Panel Flexible Monocrystalline Solar Panel China Lightweight PV Module for Home

520W Flexible Solar Panel Ultra-Thin Panel Flexible Monocrystalline Solar Panel China Lightweight PV Module for Home

Customization: Available
After-sales Service: Yes
Warranty: 25 Years
Send Inquiry

Product Description

Basic Information
Model NO.
SMF520J-12X12UW
Number of Cells
144
Application
Industrial
Condition
New
Certification
CE, Ice
Material
Monocrystalline Silicon
Power Tolerance
0~+5W
Maximum Efficiency
19.3%
Frame
Frameless
Weight
7.8kg
Connector
Mc4
Specification
2246*1197*2 mm
Product Description

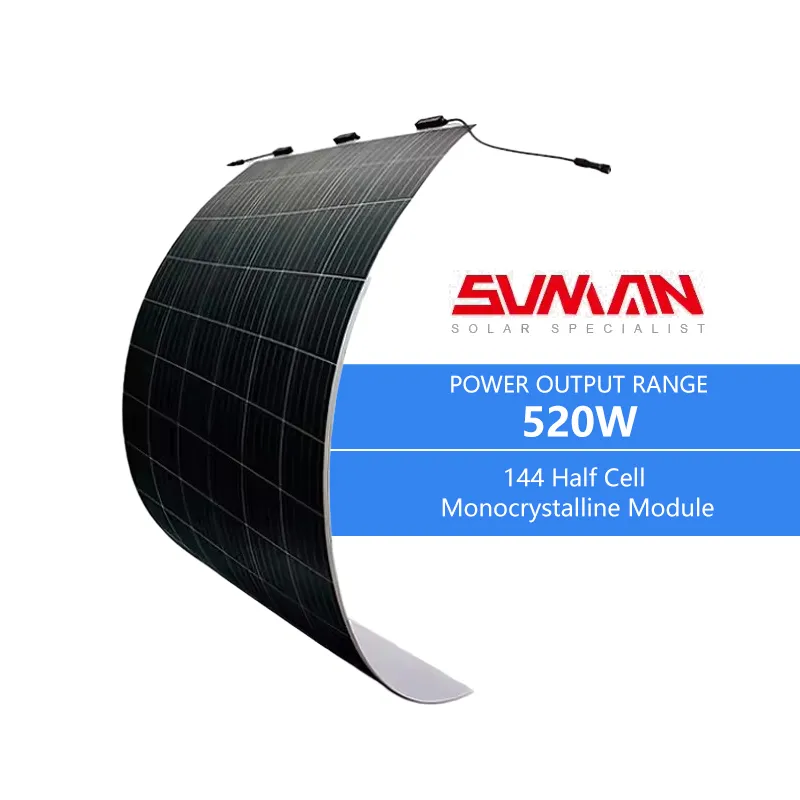

Flexible Solar Panel

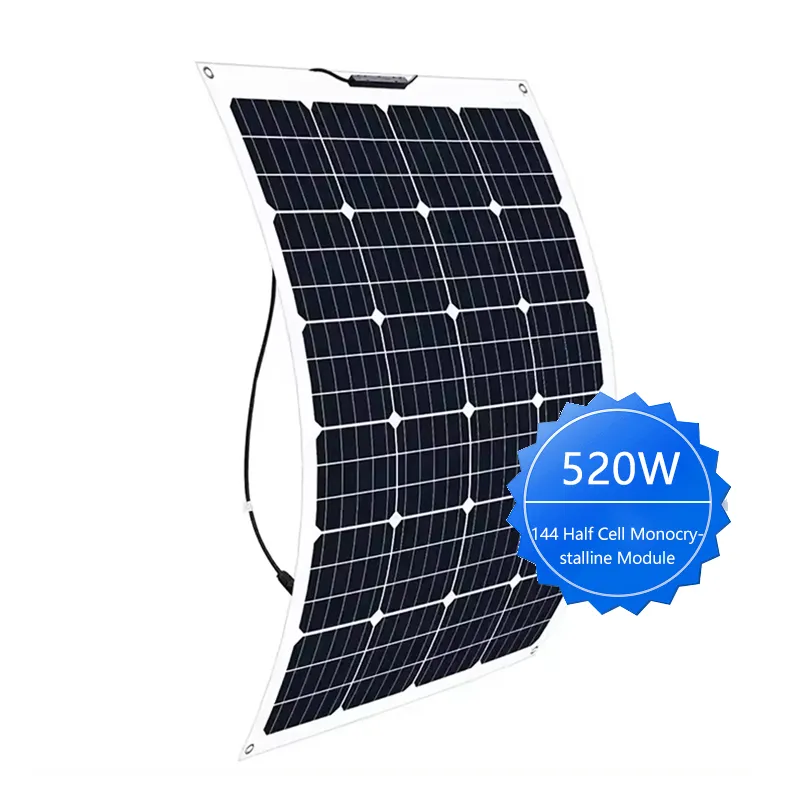

Ultra-Thin Solar Panel

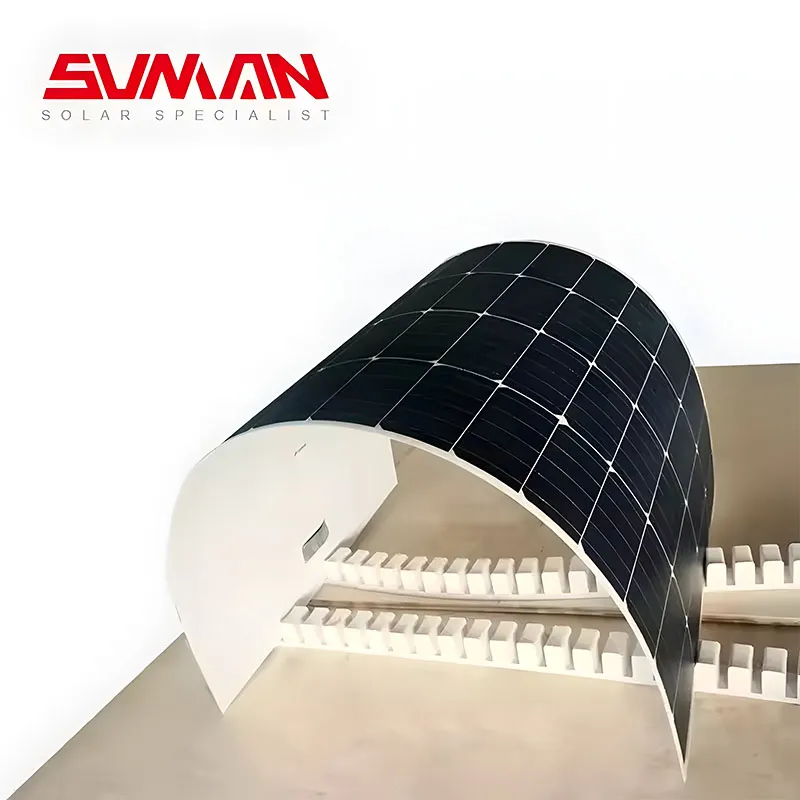

Monocrystalline Solar Panel
Technical Parameters
Parameter Item SMF520F-12X12UW Data
Maximum Power (Pmax)520W
Maximum Power Voltage (Vmp)42.3V
Maximum Power Current (Imp)12.31A
Open-circuit Voltage (Voc)49.5V
Short-circuit Current (Isc)13.56A
Module Efficiency (%)19.3%
Operating Temperature-40ºC to 85ºC
Maximum System Voltage1500V DC(IEC)
Maximum Series Fuse Rating25A
Application ClassClass A
Dimensions2246*1197*2mm
Weight7.8KG

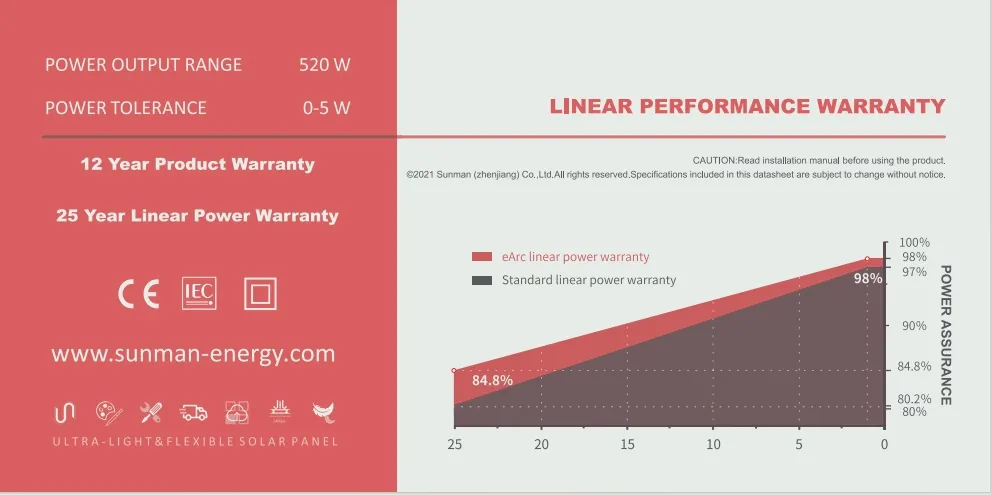

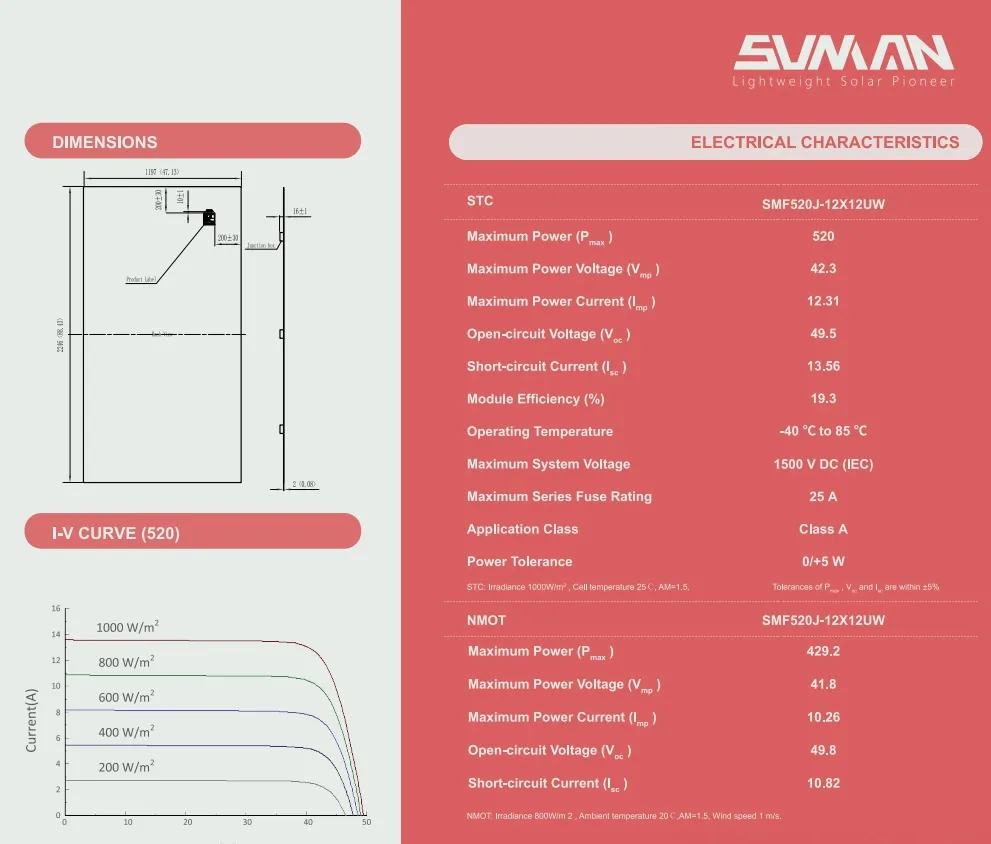

Parameter Diagram Installation Dimensions
Certifications

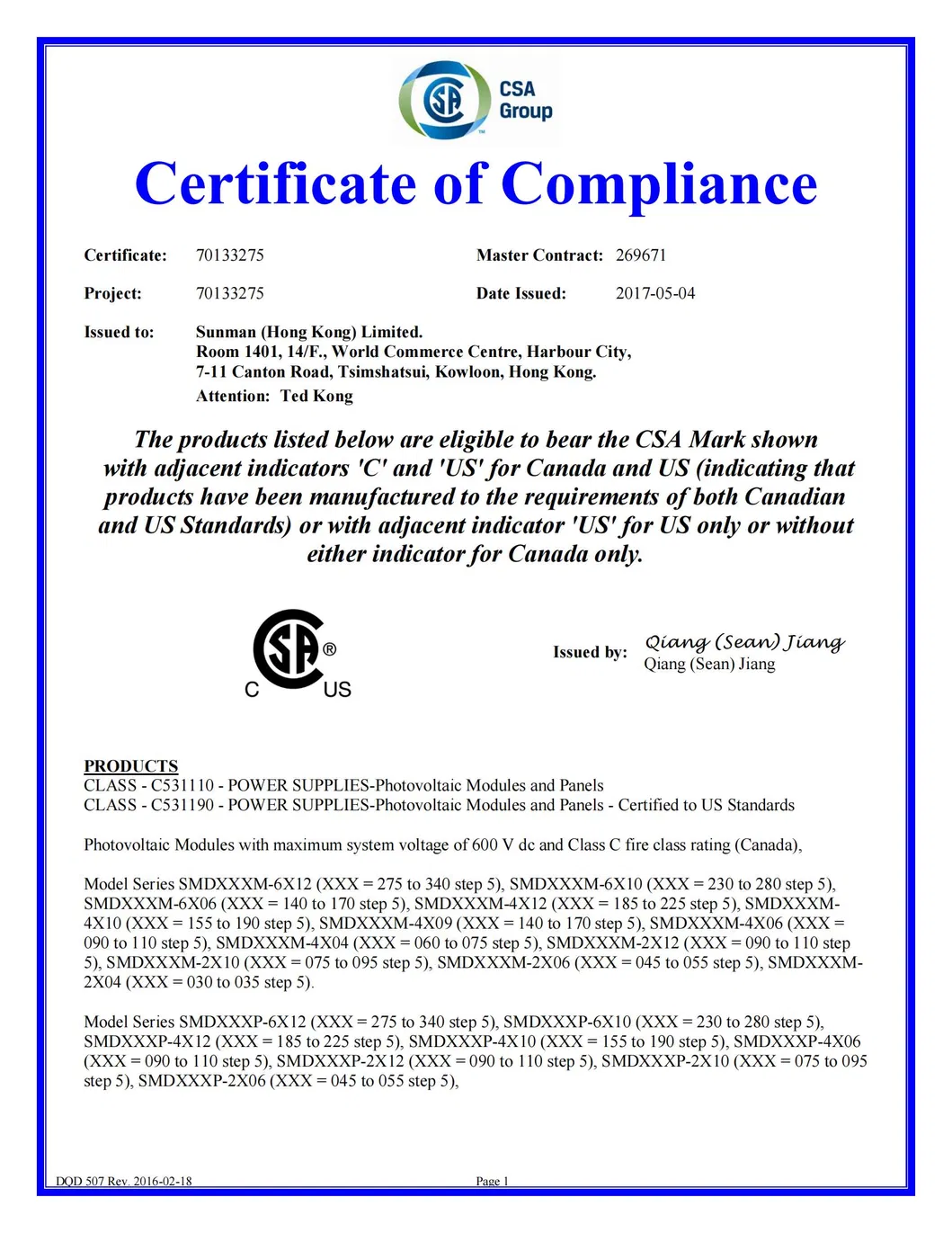

Certification Quality
Project Cases
Project Case 1

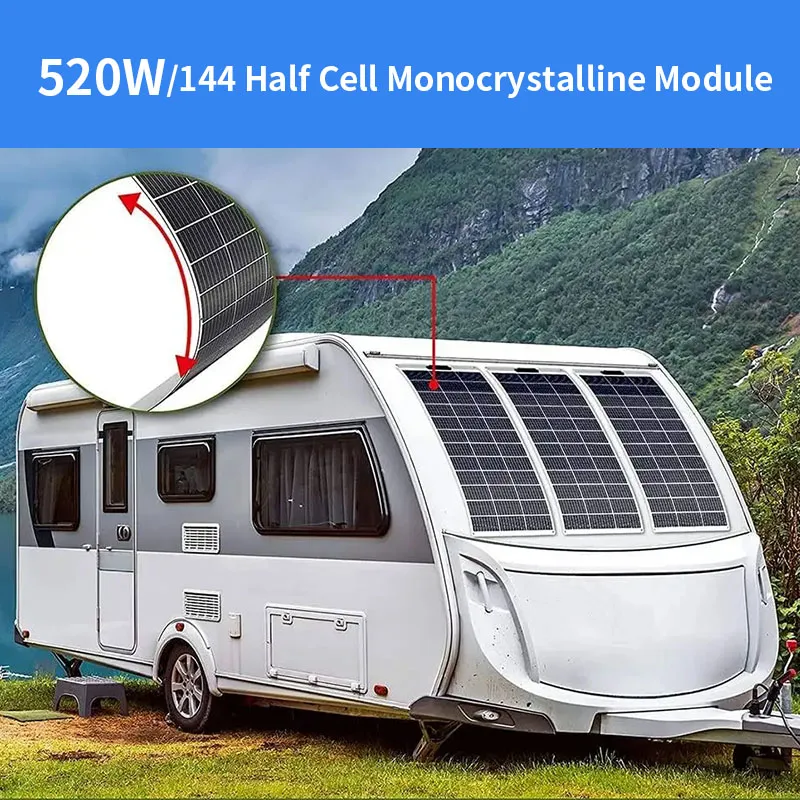

Project Case 2
Manufacturing Facility
Factory Overview
Production Line
Frequently Asked Questions
Q1: How to choose the right solar panel for my needs?
Please evaluate your energy consumption requirements and installation space. Our technical team can provide a professional recommendation based on your specific industrial or residential application.
Q2: What's the primary difference between Monocrystalline and Polycrystalline panels?
Monocrystalline panels are made from high-grade silicon, offering higher efficiency and a sleeker look. Polycrystalline panels are generally more cost-effective to produce but have slightly lower efficiency rates.
Q3: What is the typical delivery timeframe for orders?
Standard samples are typically ready within 7 days. For bulk industrial orders, the delivery time is approximately 15 days depending on the volume and customization.
Q4: What kind of warranty do you provide for these flexible panels?
We provide a standard 10-year warranty on the product materials and workmanship, along with a 25-year linear power output warranty to ensure long-term performance.
Q5: Is technical support available if I encounter issues?
Yes, we offer comprehensive technical support. Our engineers are available to assist with installation queries and troubleshooting, ensuring minimal downtime for your solar system.
Q6: Are these flexible panels resistant to extreme weather?
Absolutely. Our panels are designed to operate between -40ºC and 85ºC and are manufactured to withstand various environmental stresses, making them ideal for diverse geographical locations.
