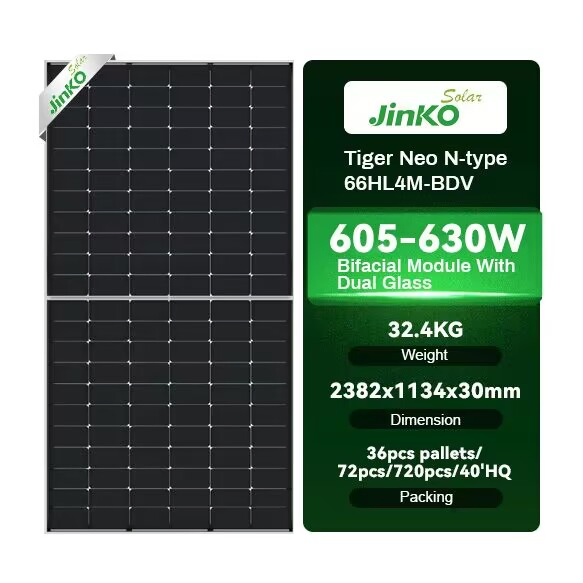

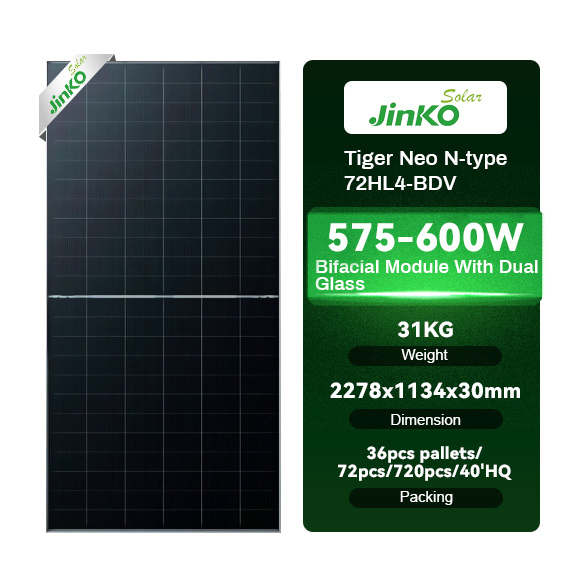

Original Jinko 585W 585W 590W Monocrystalline N Type Topcon Solar Panel 25years Warranty
Original Jinko 585W 585W 590W Monocrystalline N Type Topcon Solar Panel 25years Warranty
Original Jinko 585W 585W 590W Monocrystalline N Type Topcon Solar Panel 25years Warranty
Original Jinko 585W 585W 590W Monocrystalline N Type Topcon Solar Panel 25years Warranty
Original Jinko 585W 585W 590W Monocrystalline N Type Topcon Solar Panel 25years Warranty
1 / 5
Original Jinko 585W 585W 590W Monocrystalline N Type Topcon Solar Panel 25years Warranty
Original Jinko 585W 585W 590W Monocrystalline N Type Topcon Solar Panel 25years Warranty
Original Jinko 585W 585W 590W Monocrystalline N Type Topcon Solar Panel 25years Warranty
Original Jinko 585W 585W 590W Monocrystalline N Type Topcon Solar Panel 25years Warranty
Original Jinko 585W 585W 590W Monocrystalline N Type Topcon Solar Panel 25years Warranty

Original Jinko 585W 585W 590W Monocrystalline N Type Topcon Solar Panel 25years Warranty

Customization: Available
After-sales Service: Yes
Warranty: 25 Years
Send Inquiry

Product Description

Basic Specifications
Model NO.
JKM570-590N-72HL4-BDV
Number of Cells
72pcs
Application
Industrial
Certification
ISO, CE
Material
Monocrystalline Silicon
Cells Orientation
N Type Topcon
Cell Size
182mm*91mm
Junction Box
IP68 Rated
Frame
Anodized Aluminium Alloy
Glass
2.0mm Tempered Low Iron
Package
Wooden Pallet and Carton Box
Specification
2278*1134*30mm
Profile
Established in 2016, we are a professional and leading manufacturer of quality solar modules. Our production base is located in a world-renowned photovoltaic industry hub. Our business covers the R&D, production and sales of PV modules for residential, commercial and large scale solar plants. We supply turn-key services and high-quality materials for global markets.
3 production lines with an annual capacity of 1.2GW facilitate efficient production lead times. With sophisticated production experience and a global sales network, we achieved a sales volume of USD 1.5 billion in 2022, ranking among the top producers and exporters.
For residential and commercial solar energy systems, including on-grid, off-grid and hybrid solutions, we cooperate with famous brands like Huawei, Sungrow, Growatt, and Deye to supply quality materials. Quality is our soul.

Our principles: Integrity, Win-Win, Innovation!
Solar Production
Manufacturing Line Quality Control
Product Description & Technology

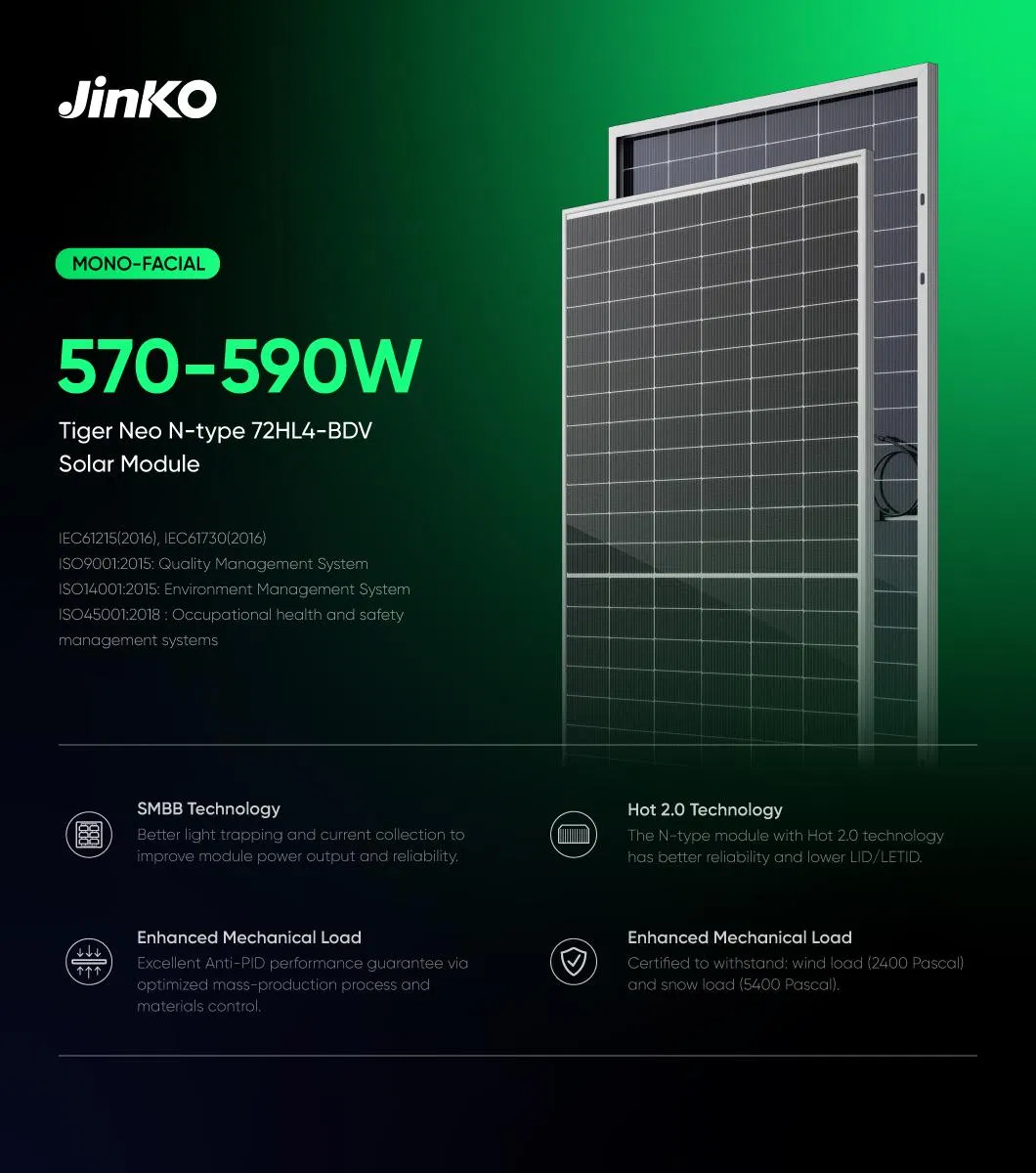

N-Type Solar Panel
What are N-type solar cells?
An N-type solar cell consists of a thin p-type silicon layer over a much thicker n-type silicon layer. Electrical contacts are applied to both sides. While most crystalline solar cells are currently p-type due to historical production costs, N-type solar cells offer significantly better efficiency. N-type material avoids Light Induced Degradation (LID) which commonly affects p-type material (boron-doped) in the presence of light and oxygen.

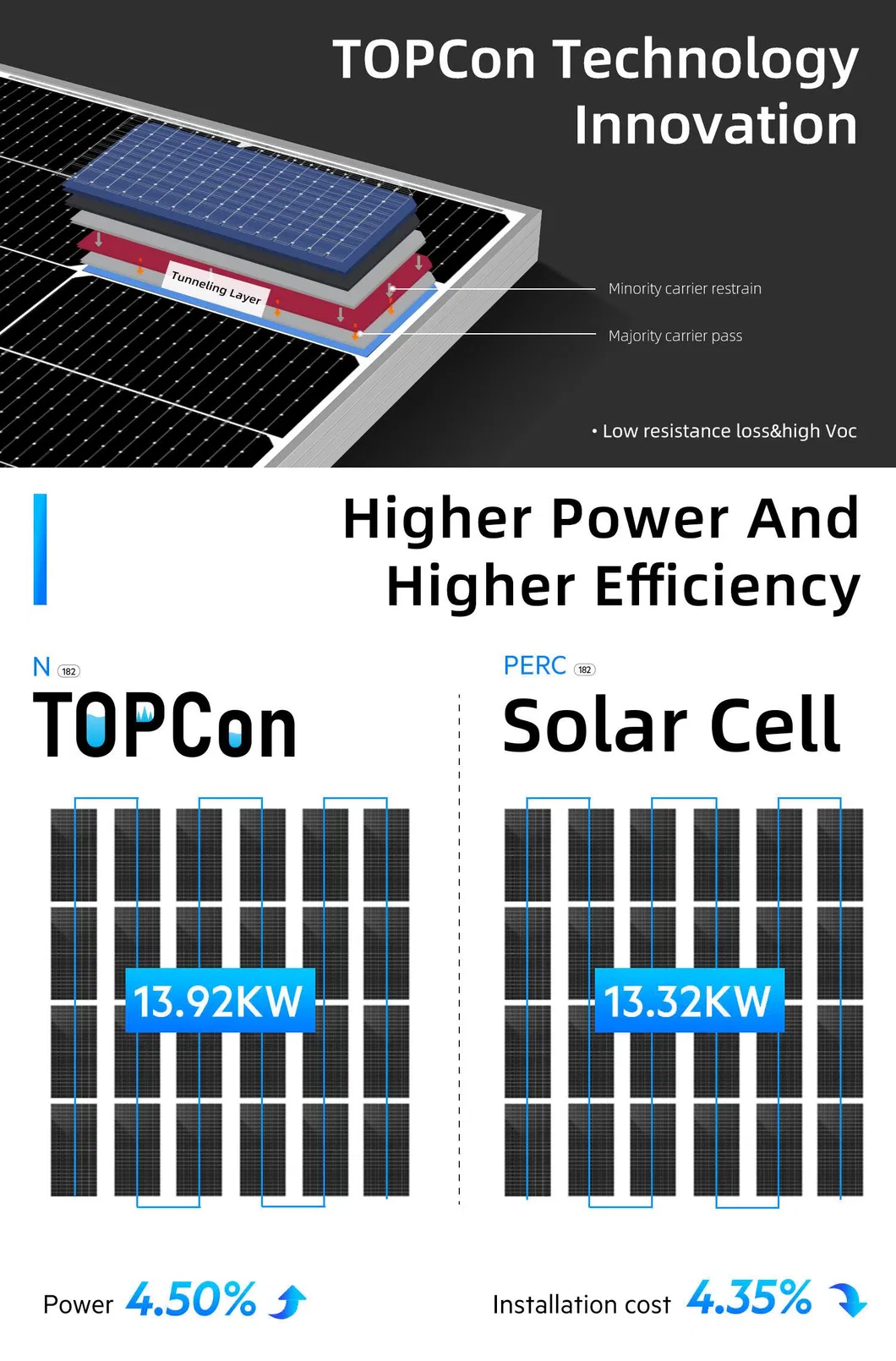

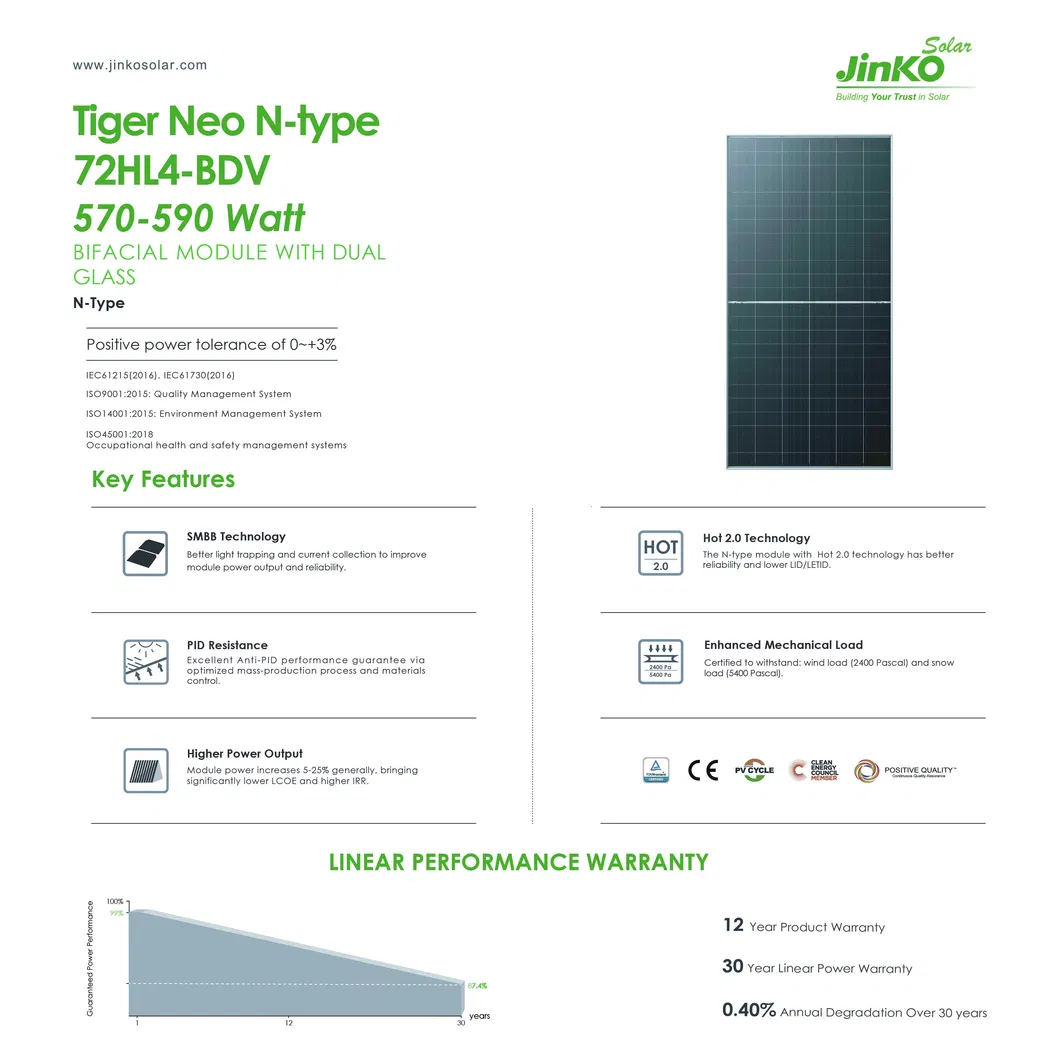

Technical Specs 1 Technical Specs 2

STC: Irradiance 1000W/m², cell temperature: 25°C, AM=1.5.

Model JKM580N-72HL4-BDV JKM585N-72HL4-BDV JKM590N-72HL4-BDV JKM595N-72HL4-BDV JKM600N-72HL4-BDV
Max. Power (Pmp/Wp) 580 585 590 595 600
Max. Power Voltage (Vmp/V) 43.88 44.02 44.17 44.31 44.45
Max. Power Current (Imp/A) 13.22 13.29 13.36 13.43 13.50
Open Circuit Voltage (Voc/V) 52.50 52.70 52.90 53.10 53.30
Short Circuit Current (Isc/A) 13.95 14.01 14.07 14.13 14.19
Module Efficiency (%) 22.45 22.65 22.84 23.03 23.23
Power Output tolerance 0~+3% Temp. Coefficient Pmax -0.29%/ºC
Temp. Coefficient Voc -0.25%/ºC Temp. Coefficient Isc 0.045%/ºC
Operating Temp. -40ºC~+85ºC Max System Voltage 1500VDC (IEC)
Certifications
Certification Documents Certificates
Packaging & Shipping

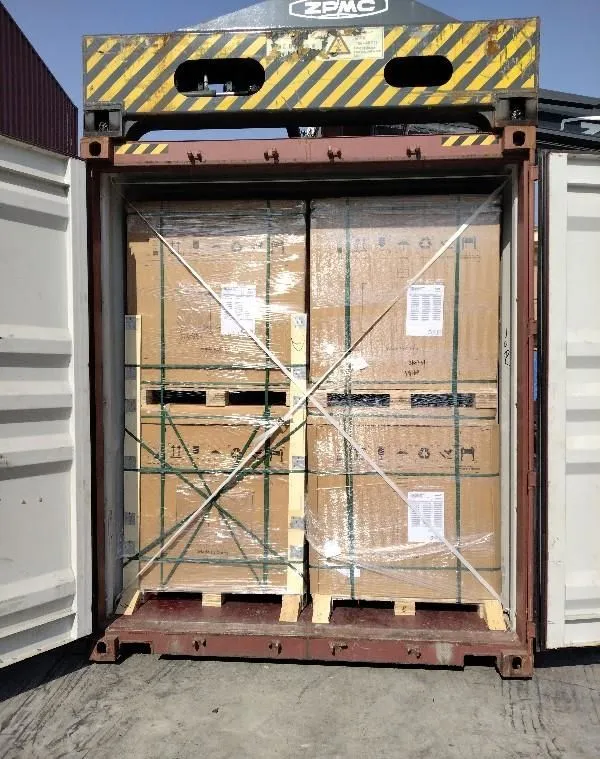

Packaging Detail 1 Packaging Detail 2

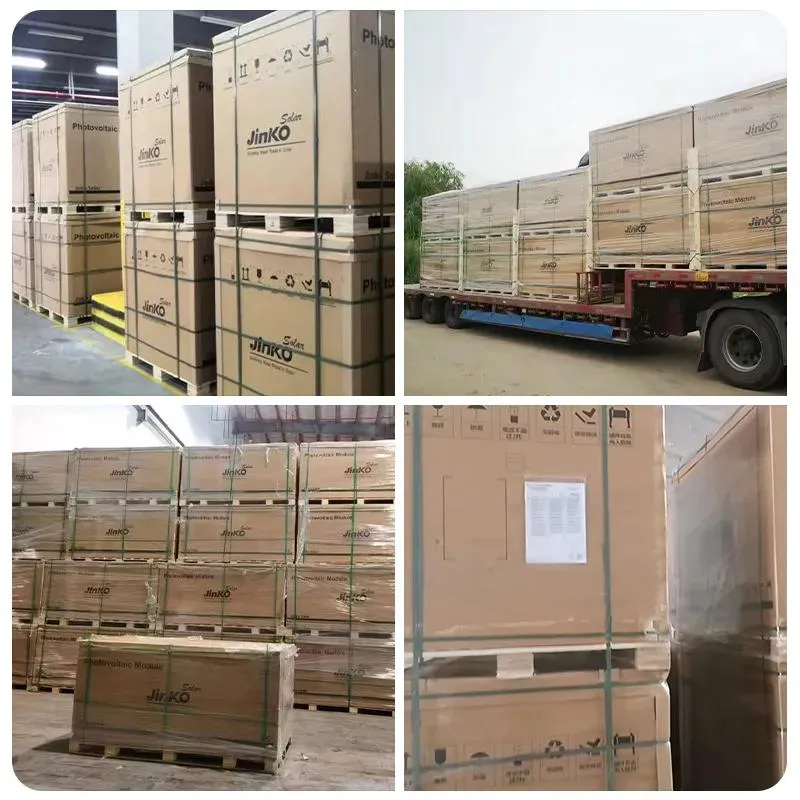

Loading 1 Loading 2
Successful Projects

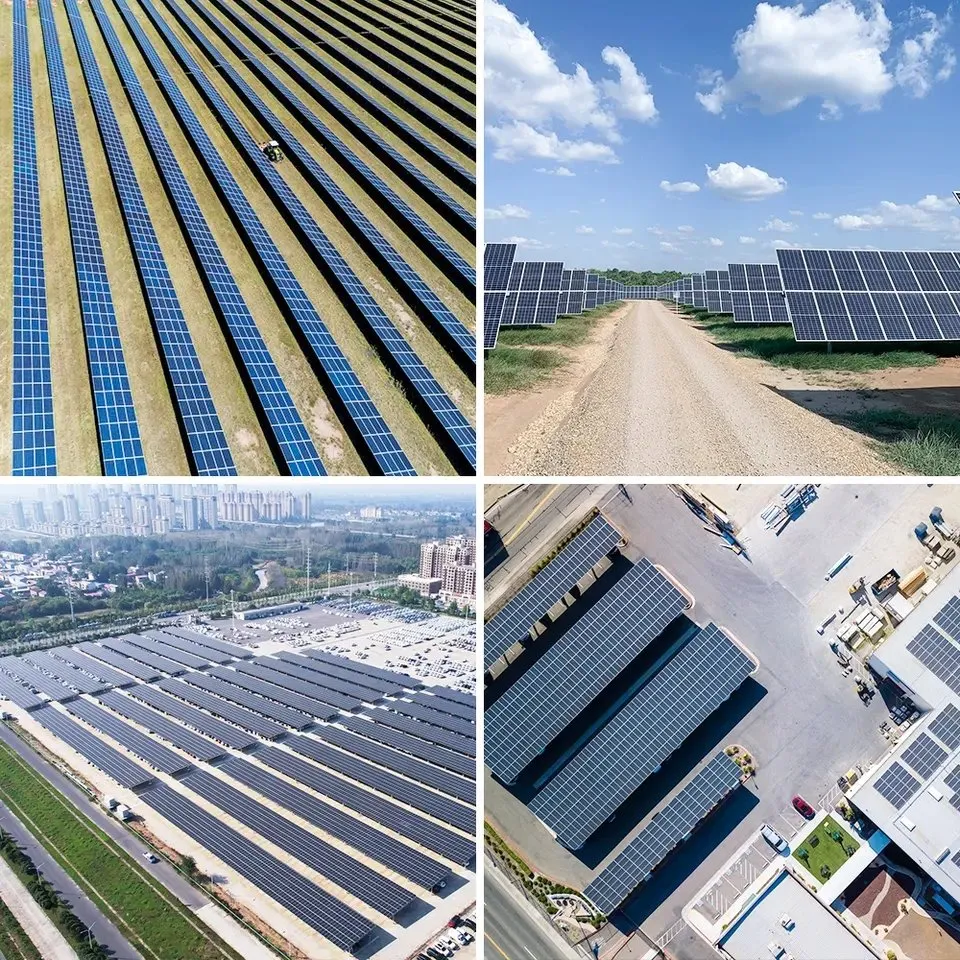

Large Scale Project

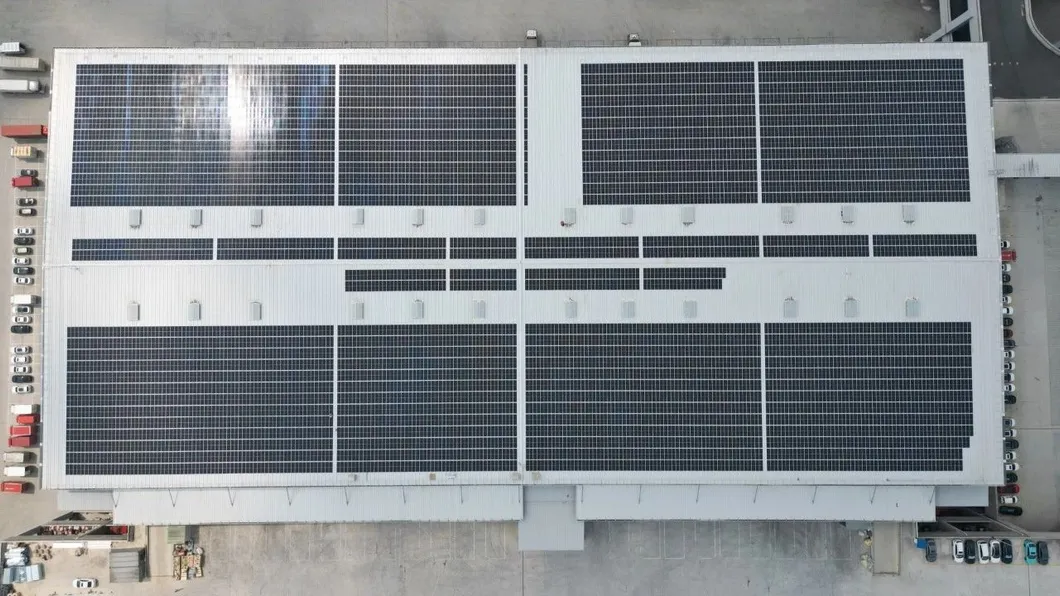

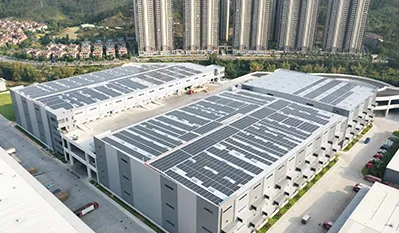

Installation 1 Installation 2
Frequently Asked Questions
What can you buy from us?
You can purchase Solar Panels, Solar Systems, Gel and Lithium batteries, Inverters, and complete on-grid, off-grid, and hybrid solar system solutions.
Why should you choose us over other suppliers?
We are an official agent for top brands including Longi, Jinko, JA Solar, Astronergy, and Huawei. We only supply 100% A-grade products directly from the original factories.
What delivery and payment terms do you accept?
Accepted Delivery Terms: FOB, CFR, CIF, EXW, DDP. Accepted Payment Currencies: USD, EUR, CNY. Accepted Payment Types: T/T, L/C, PayPal.
What is the advantage of N-type Topcon technology?
N-type cells offer higher efficiency and lower Light Induced Degradation (LID) compared to traditional P-type cells, ensuring better long-term performance and power output.
What languages does your support team speak?
Our team is proficient in English, Chinese, Spanish, Japanese, German, and Russian to assist global customers effectively.
What is the annual production capacity?
We operate 3 production lines with an annual capacity of 1.2GW, ensuring reliable lead times and large-scale supply capabilities.
